Universal memory module: the cornerstone of building reliable multiprocessor control systems

In the field of industrial automation, DCS 5000 and AutoMax control systems are renowned for their powerful processing capabilities and flexibility, and are widely used in complex motion control and process automation scenarios. When the system requirements exceed the capabilities of a single processor, a multi processor architecture becomes an inevitable choice. However, the key to multi processor collaboration lies in efficient and reliable data sharing and communication coordination. The universal memory module (model 57C413b and its upgraded version 57C423) is the core component born for this purpose. It is not only a storage pool for shared data, but also a "traffic police" for system bus order. This article will delve into the design principles, functional modes, installation configuration, and maintenance points of this module, revealing its indispensable role in building robust industrial control systems.

Module overview and core function positioning

The Common Memory Module is a specialized module designed specifically for DCS 5000/AutoMax racks. Its main design goal is to support the collaborative work of multiple processor modules within a physical rack. This module plays two crucial roles, depending on which slot it is installed in the rack:

As the core of the system (located in slot 0): This is the main functional mode of the module. In this mode, the module activates its bus arbitration logic and system watchdog timer. It stores system configuration data that all processors must share, such as the definition of physical I/O, thereby freeing up valuable processor module memory for user application tasks. At the same time, it is responsible for arbitrating access requests from multiple processors to the rack backplane bus, ensuring fair and conflict free data exchange, and is the "central nervous system" that maintains stable operation of the multiprocessor system.

As a user data storage (located in other even numbered slots): When the module is installed in even numbered slots such as 2, 4, 6, 8, 10, 12, or 14, its bus arbitration and watchdog functions are disabled and only used as a large, user configurable battery backup RAM. This mode is suitable for applications that require a large amount of contiguous storage space, such as defining contiguous register regions for shift register instructions, but it should be noted that arrays cannot be defined in this mode.

The module offers two models: 57C413b (128K bytes of memory) and 57C423 (256K bytes of memory in slot 0 and 128K bytes in other even slots). Both are integrated with onboard lithium batteries and a supercapacitor, which can maintain RAM content for a long time after the rack is powered off (the battery can last for at least 600 days), ensuring that critical data and non-volatile variables are not lost.

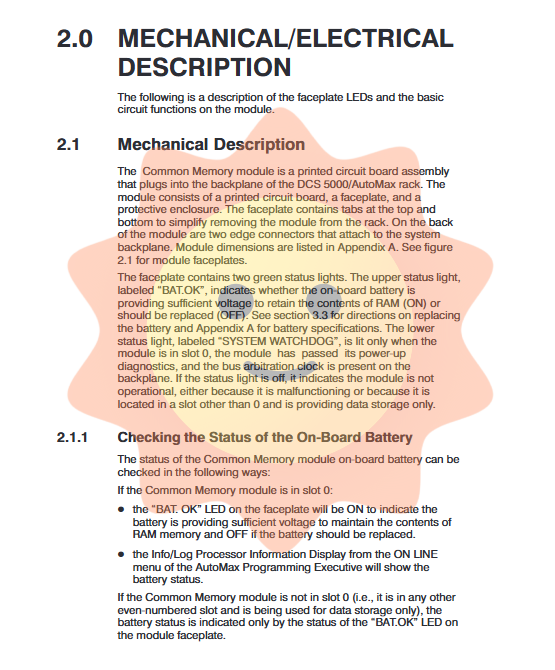

Detailed explanation of mechanical and electrical design

The module adopts a standard printed circuit board assembly form, with a protective shell and front panel, and can be inserted into the rack back panel. Its compact size (11.75 inches high, 1.25 inches wide, 7.375 inches deep) makes it easy to install in a rack.

The front panel indicator light is an important status window with only two green LEDs:

BAT. OK ": Indicates whether the onboard battery voltage is sufficient to maintain the RAM content. The light on indicates normal operation, while the light off indicates the need to replace the battery.

SYSTEM WATCHDOG ": This light only lights up when the module is located in slot 0, diagnosed through power on, and there is a bus arbitration clock on the backplane. The light off indicates that the module is not functioning properly (faulty or in pure storage mode with non-zero slots).

The core of electrical design is bus arbitration logic. When multiple processors simultaneously request access to the backplane bus, the arbiter ensures that each requester can obtain bus usage rights once before any processor accesses again. In the initial competitive situation, processors located in lower numbered slots are given priority. This mechanism fundamentally avoids data conflicts and ensures the certainty of multiprocessor systems.

The onboard power retention system consists of lithium batteries and supercapacitors. Supercapacitors take about 8 minutes to charge to over 90% capacity. When the "BAT. OK" light goes out and the rack is powered off, the supercapacitor can usually maintain RAM content for about 400 minutes, providing ample buffer time for battery replacement. The watchdog timer of the module is used to detect processor failures in a multiprocessor system. Once a processor fails to reset the timer on time, an interrupt will be triggered to notify other processors, and an error code of "4.6" will be displayed on the front panel of all processors (except for failures).

Installation, replacement, and battery maintenance procedures

The installation and operation of modules must be carried out by electricians familiar with the equipment and hazards, and safety warnings must be strictly followed, such as turning off the machine power before inserting and removing modules, and being aware that the modules contain static sensitive components.
