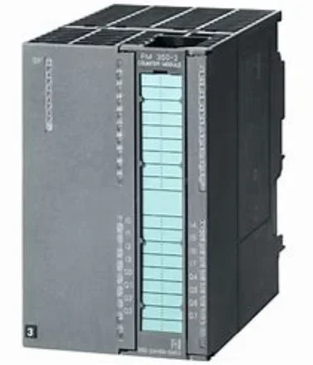

Siemens 6ES7350-1AH03-0AE0 FM 350-1 Counter Module

The Siemens 6ES7350-1AH03-0AE0 FM 350-1 is a high-performance counter module designed for the S7-300 and ET 200M automation systems. As a single-channel intelligent counting module, it handles high-frequency counting tasks beyond the capability of standard CPU counters. It is the definitive solution for applications requiring precise position feedback, high-speed length measurement, and frequency monitoring in machine automation.

High-Frequency Encoder Inputs

The FM 350-1 directly connects to incremental encoders with 5V differential signals (RS-422) or 24V signals. The module can process pulses at frequencies up to an impressive 500 kHz. It supports a variety of operating modes, including Continuous Counting, Single Counting, Periodic Counting, and Measuring modes (Frequency, Speed, and Period). This extreme speed allows the module to keep pace with the fastest linear axes, spindles, and conveyor belts without missing a single pulse.

Signal Evaluation and Integrated Power Supply

The module evaluates the incoming pulses, considering the pulse direction to provide accurate position values. It features two integrated digital outputs that can be switched directly based on the comparison of the current counter value with two definable reference values. This enables high-speed response, such as triggering a camera, activating a diverter, or cutting a sheet of material at a precise length, without burdening the CPU. Additionally, the module supplies the power for the connected encoder, simplifying the wiring design.

Technical Specifications and Diagnostics

The FM 350-1 offers a high level of diagnostic capabilities. Status LEDs on the front panel clearly indicate the presence of an encoder power supply, the current counting direction, and the activity of the integrated digital inputs and outputs. In the event of a signal loss or a wire break, the module can immediately signal a fault to the CPU, allowing the machine to react safely. The compact plastic housing is designed for convenient mounting on the S7-300 rail, with a front connector that allows all wiring to be securely routed.

Configuration and Software Integration

Configuration is handled through the STEP 7 parameter assignment user interface, which allows engineers to define the encoder type, count direction, evaluation method (double evaluation for high resolution), and the behavior of the reference outputs. Pre-configured standard function blocks (FCs), such as CNT_CTRL for control and DIAG_INF for diagnostics, are provided as part of the SIMATIC S7-300 software package. This integration ensures that the counter values and diagnostic data are transferred to the CPU cyclically and are easily accessible to the user program.

Applications in Industrial Automation

The FM 350-1 is applied across a broad range of industries, including assembly lines, plastic processing machinery, paper converting, textile equipment, and packaging machinery. Whether it is the high-speed positioning of a cutting knife, the monitoring of a centrifuge's speed, or the precise winding of a roll of material, this dedicated counter module provides the reliability that standard PLC logic cannot achieve. It offers the millimeter-precise or micrometer-precise measurement data required for high-quality industrial production.
