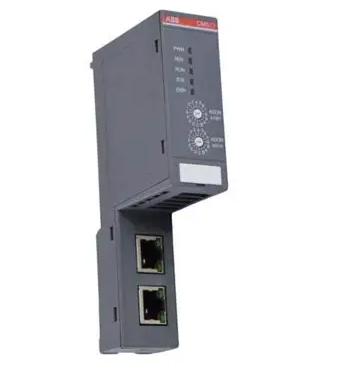

  • ABB CM577-ETH AC500 PLC Ethernet Module
    ❤ Add to collection
  • ABB CM577-ETH AC500 PLC Ethernet Module

    ABB、GE、FANUC、Allen-Bradley、FOXBORO、Honeywell,KUKA、YOKOGAWA、YOKOGAWA、KOLLMORGEN、METSO、Motorola、NI、OEMAX、RELIANCE、Vibro-Meter、Rolls-Royce、MOOG、B&R、Woodward、Yaskawa、XYCOM、Emerson、HIMA、Bently、PROSOFT、TRICONEX、KEBA、Lenze、Alstom、CTI、DCSSystem accessories, robot system accessories, large servo system spare parts.
    Mr.FSN
    chnfcsXM@163.com
    +86-153-9626-8993
    Selection, installation, operation, maintenance, troubleshooting, safety
    Petrochemical/Chemical,Power industry,Metallurgical industry,Municipal/Environmental Protection,Oil and gas industry,Robot system accessories,automobile manufacturing,3C Electronics,Machining
    • ¥42435.00
      ¥45364.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:14.570KG
    • Quantity:
    • (Inventory: 6346)
Description

ABB CM577-ETH Ethernet Communication Module Technical Guide

Ethernet Connectivity for the AC500 System

The ABB CM577-ETH is a high-performance communication module designed to expand the networking capabilities of the AC500 series programmable logic controllers. In the modern industrial landscape, Ethernet connectivity is essential for integrating PLCs into plant-wide networks. The CM577-ETH provides a reliable, high-speed interface for data exchange between the AC500 CPU and other network-capable devices, such as HMIs, SCADA systems, and other controllers.

Supported Protocols and Interoperability

A key strength of the CM577-ETH is its support for a wide range of industrial Ethernet protocols. This includes Modbus TCP, which is a standard for interoperability in diverse automation systems, as well as HTTP for web-based monitoring. The module also supports SNTP for time synchronization and FTP for file transfers. This multi-protocol support ensures that the AC500 PLC can seamlessly integrate into existing network infrastructures and communicate with equipment from various manufacturers.

Hardware Design and Dual Interface

The CM577-ETH features an integrated 2-port switch, allowing for flexible network topologies such as line or ring structures without the need for an external Ethernet switch. This reduces the overall cost and complexity of the system. The hardware is designed to fit directly onto the AC500 terminal base, where it communicates with the CPU via the internal bus. The compact design ensures that the module does not significantly increase the footprint of the PLC system, making it ideal for tight control cabinets.

Configuration and Management

Configuration of the CM577-ETH is performed within the ABB Automation Builder software environment. This integrated tool provides a user-friendly interface for setting IP addresses, configuring protocol parameters, and monitoring the status of the network connection. The module also includes built-in diagnostic LEDs that provide immediate feedback on link status and activity, facilitating rapid troubleshooting during commissioning and maintenance.

Enhanced Security and Industrial Reliability

Industrial networks require high levels of reliability and security. The CM577-ETH is built to withstand the electrical noise and temperature variations typical of industrial environments. It includes features to protect against unauthorized access and to ensure the integrity of the data being transmitted. By providing a stable and secure Ethernet link, the CM577-ETH enables advanced automation functions such as remote diagnostics and cloud-based data analysis, driving efficiency in the modern digital factory.
