Pilz PSSu E F 4DI Safety Input Module

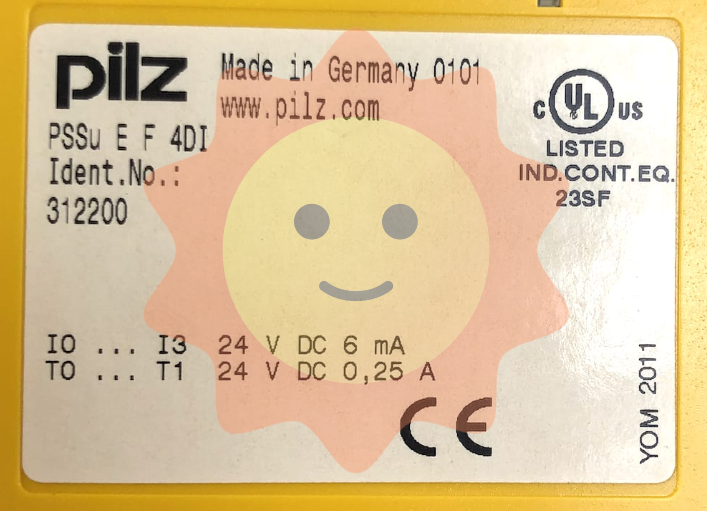

The Pilz PSSu E F 4DI (Product ID: 312200) is a failsafe digital input module from the PSSuniversal product range. Designed for safety-related automation tasks, this electronic module provides 4 digital inputs for connecting safety sensors such as emergency stop buttons, guard door switches, and light curtains. It also features 2 test pulse outputs (0.25 A) for sensor monitoring, ensuring high diagnostic coverage and system integrity.
Technical Specifications
Product Type: Electronic module, failsafe
System: PSSuniversal I/O system
Number of Digital Inputs: 4 (24 V DC)
Input Voltage: 24 V DC
Potential Isolation: Yes (inputs isolated from module bus)
Test Pulse Outputs: 2 (0.25 A each)
Application Range: Failsafe
Safety Integrity Level: SIL 3 (IEC 61508), PL e (EN ISO 13849-1)
Approvals: CE, UKCA, cULus Listed, KOSHA, EAC, TÜV
Ambient Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Humidity Rating: 93% r. h. at 40°C (non-condensing)
Permissible Operating Height: 2000 m ASL
EMC Standards: EN 61000-6-2, EN 61000-6-4, EN 61131-2 (Zone B)
Vibration Standard: EN 60068-2-6
Shock Standard: 150 m/s²
Overvoltage Category: II
Pollution Degree: 2
Protection Type (Housing): IP20
Dimensions (W × H × D): 12.6 mm × 76 mm × 60.2 mm
Net Weight: 35 g
Terminal Style: Plug-in
Housing Material: PC (lower section), PC (front plate)
Coding Element: Yellow
RoHS Conformity: Yes
Safety and Diagnostics
The PSSu E F 4DI provides two test pulse outputs that can be used to monitor connected sensors for shorts, cross-circuits, and wiring faults. This diagnostic capability ensures that sensor failures are detected and the system transitions to a safe state. The module integrates seamlessly into the PSSuniversal system, allowing mixed configurations of failsafe and standard I/O modules on the same backplane. LED indicators on the front panel provide real-time diagnostics of input status and module health.
Application Domains
This safety input module is widely used in machine safety systems, including emergency stop monitoring, guard door interlocking, two-hand control systems, and light curtain interfaces. It is suitable for applications requiring high safety integrity levels, such as packaging machinery, press brakes, robotic cells, and conveyor systems. The module is also used in process automation for safety interlock applications in chemical plants and refineries
