Allen Bradley Guard PLC Safety System Practical Guide

GuardPLC Security System Practice: From Installation and Deployment to Advanced Network Optimization and Troubleshooting

In the field of modern industrial automation, the reliability of safety control systems is of paramount importance in ensuring personal safety, equipment integrity, and production. Rockwell Automation's GuardPLC controller series has become the choice for many critical applications due to its compliance with IEC 61508 SIL 3 and ISO 13849-1 PLe/Cat.4 safety levels. This article aims to provide a comprehensive technical guide for automation engineers on GuardPLC 1200, 1600, 1800, and 2000 series safety controller systems. We will delve into the entire process from hardware installation, core wiring, network communication configuration to common fault diagnosis and system optimization, ensuring that you can build a safe and efficient automation solution.

Chapter 1: Planning and Installation - The Foundation of Building a Security System

A successful project begins with careful planning and proper physical installation. The safety of GuardPLC system depends not only on its internal design, but also on the installation environment and methods.

1. Environmental and grounding requirements

GuardPLC controllers are open devices and must be installed in industrial control cabinets with appropriate protection levels. Heat dissipation is a key consideration in installation:

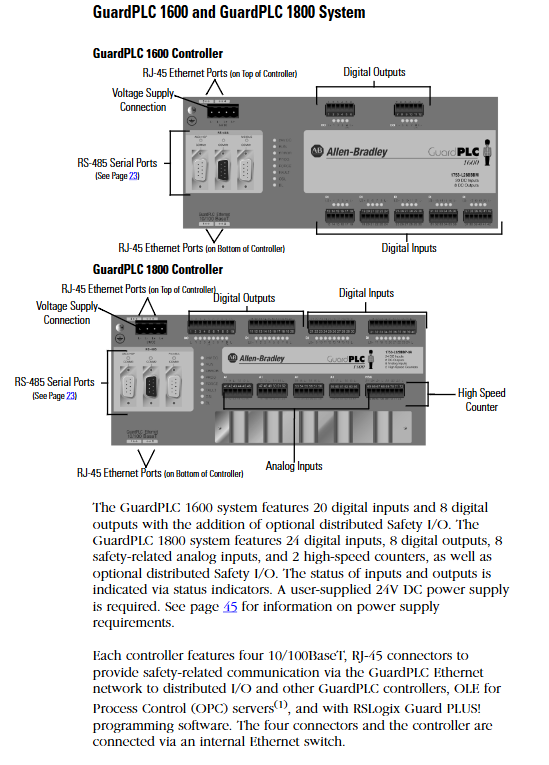

GuardPLC 1200: It must be installed horizontally with the RJ-45 Ethernet interface facing downwards. Maintain a gap of at least 100 millimeters around the controller to ensure free air circulation.

GuardPLC 1600/1800 and distributed I/O: horizontal installation is also recommended. At least 100 millimeters should be left above and below the equipment, and a gap of at least 20 millimeters should be left between devices in the horizontal direction. The ventilation duct must not be blocked.

GuardPLC 2000 rack: must be installed vertically, with the cooling fan located at the bottom. Before inserting any module, be sure to disconnect the power supply and remove the grounding grid board.

Grounding is a step that all controllers must strictly follow. The GuardPLC controller is functionally grounded through DIN rails. The manual clearly states that galvanized yellow chromate steel DIN rails must be used to ensure reliable grounding connections. Aluminum or plastic guide rails may have poor grounding due to corrosion or poor conductivity. For GuardPLC 1200, the PA terminal also needs to be connected to the ground.

2. Key points of power supply design

When powering the GuardPLC system, it must be recognized that the controller not only drives itself, but also provides power to most input circuits and output loads.

Power requirements: Use SELV or PELV safety isolated power supply with a voltage range of 20.4V DC to 28.8V DC. For example, GuardPLC 1600 can consume a maximum of 8A current at full load, and its own operation requires approximately 0.5A.

Wiring practice: The L+and L - terminals of GuardPLC 1600/1800 are interconnected internally, with one terminal used to connect to a power source and the other available for cascading power supply to the next device. For GuardPLC 1200, two L+and two L - terminals must be used in parallel to achieve a maximum total current capacity of 8A.

Fuse: It is essential to use slow melting fuses to protect the controller.

Chapter 2: Wiring Practice and Common Misconceptions

Correct wiring is a prerequisite for achieving safety functions. This chapter outlines the core technologies and common considerations for I/O wiring of different GuardPLC models.

1. Secure Digital Input (SDI) wiring

Closed circuit principle: External sensor wiring must follow the closed circuit principle. In the event of a malfunction, the input signal should revert back to the "0" state (power off). Line interruption should be interpreted by the program as a safe "0" signal, even though the system itself does not actively monitor external lines.

Sensor power supply: Unless otherwise specified, priority should be given to using the LS+terminal provided by the controller to power the sensor, rather than directly using the L+of the power supply. Each LS+has independent short-circuit and EMC protection, but the current is limited, and it is only recommended to supply power to safe inputs within the same terminal group.

Dealing with surges: Some modules may misinterpret the surge impact specified in EN 61000-4.5 as a brief "HI" signal. To avoid erroneous shutdowns caused by this, it is recommended that engineers take one of the following measures:

Hardware solution: Install a shielding layer for the input line to prevent surge effects.

Software solution: Implement software filtering in the user program, requiring the signal to remain valid for at least two scanning cycles.

2. Secure Digital Output (SDO) wiring and load management

Safe state: The output is in a safe state when the power is turned off. Any malfunction that affects safety control will immediately cut off the relevant output.

Current and temperature derating: The output rated current is directly related to the ambient temperature. For example, a rated output of 1A can only provide 1A at 60 ° C, but can be increased to 2A at 50 ° C. When overloaded, the affected output will be turned off; After eliminating overload, the output will be restored according to the user program.

Inductive load handling: Although the GuardPLC module integrates a freewheeling diode internally, the manual still strongly recommends parallel connection of an external diode (such as 1N4004) on the inductive load (such as relay coil) to locally suppress interference voltage and improve electrical compatibility.

Special module: For the 1753-IB16XOB8 module, the output supports 1-pole, 2-pole, and 3-pole connections. When conducting 2-pole or 3-pole connections for line monitoring, software configuration must be done by setting system variables such as DO [xx]. 2-pole.

3. The particularity of GuardPLC 1800

The 24 digital inputs of the controller are actually implemented through analog inputs, with a resolution of 1 bit. Engineers can use system variables to configure thresholds for high and low levels. The default positive logic is>13V=1 signal,<7V=0 signal. If only numerical functions are needed, be sure to set the USED variable to HI in the output signal connection dialog box to activate the channel.

Chapter 3: Secure Network and Communication Configuration

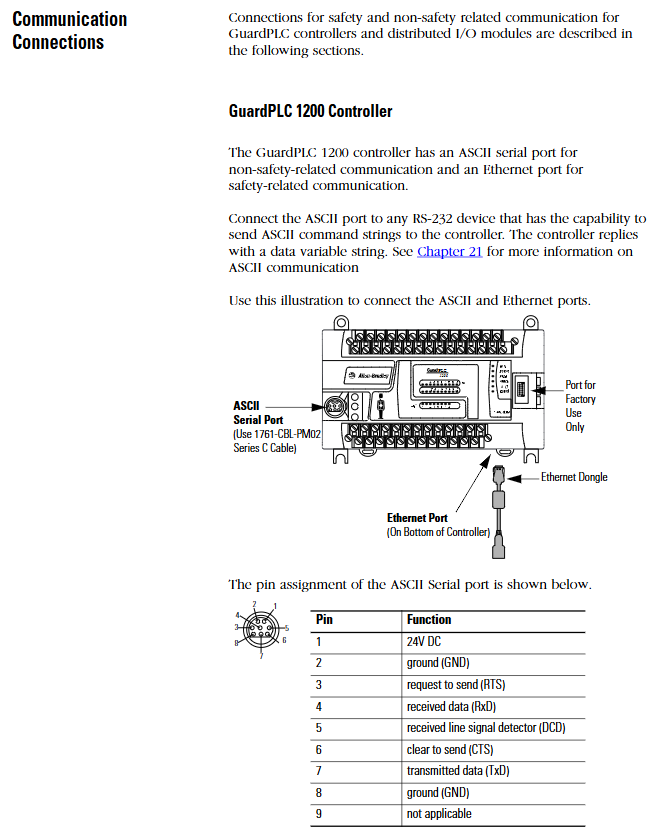

The powerful communication capability of GuardPLC is the core for achieving distributed security and system interconnection. Its Ethernet interface can support both secure GuardPLC protocol and non secure EtherNet/IP communication.

GuardPLC Ethernet network (secure communication)

Protocol stack: This network is based on HH (High level High speed) protocol and P2P (Peer to Peer) protocol. The HH protocol can be regarded as a physical medium and transport layer, responsible for conflict free data exchange; The P2P protocol runs on top of HH, ensuring the integrity and timeliness of data transmission through a handshake mechanism and watchdog, which is the key to achieving SIL 3 security level certification.

Topology structure: Supports star or daisy chain topology, but the manual emphasizes that "network loops must not be generated", meaning that data packets can only reach any node through a single path.

Scanner vs. Adapter:

Adapter mode: GuardPLC can serve as a target device, exposing its internal data (such as N_120 input assembly) to other scanners. At this point, it can be determined whether a Logix scanner should use data from GuardPLC by checking the Run/Idle header.

Scanner mode: GuardPLC can act as an initiator device, actively connecting and reading/writing remote I/O (such as FLEX I/O) or Logix controllers. As a scanner, it is necessary to plan the input and output buffers within the controller through a signal editor.

PanelView Plus communication: When communicating with HMI, a shortcut pointing to GuardPLC IP address needs to be created in FactoryTalk View Studio. Note that GuardPLC is a 'byte machine', and BOOL type tags occupy the entire byte in the buffer. Therefore, to read the first BOOL, the address in PanelView should be B122:0.0; Read the second BOOL with address B122:0.8.

2. Peer to Peer (P2P) network configuration and optimization

When multiple GuardPLC controllers need to interlock or exchange data, the configuration and parameter optimization of P2P networks are the core of project success.

Establish connection: through RSLogix Guard PLUS! Software that establishes logical connections between controllers through drag and drop in a P2P editor.

Configuration files: To simplify complex parameter settings, the manual provides various preset "profiles" such as Fast&Cleanroom, Medium&Noisy, Slow&Cleanroom, etc. Engineers need to choose based on network hardware (switches or hubs) and environment (intrinsic safety or noise).

Key parameters:

Watchdog Time (WDZ): The longest time a controller can execute a complete cycle.

Receiver timeout (ReceptTMO): The security related monitoring time. If no correct response is received within this time, secure communication will be closed and all imported tags will be reset to their initial security values.

Worst case Reaction Time (TR): This is the most important application parameter for the entire safety chain, referring to the longest time from a change in the physical input signal of PES1 to a response from the physical output of PES2. The calculation formula is:

TR = (2 × WDZ_PES1) + (ReceiveTMO + WDZ_PES1) + ReceiveTMO + WDZ_PES2

Optimization steps: After deployment, engineers should read the actual RspT (response time) through the Control Panel. If both Resends and EarlyMsgs are 0, it indicates that the network quality is good, and the ResponseTime should be reset based on the average value of RspT to improve network response speed.

Chapter 4: System Diagnosis and Fault Recovery

Quickly locating and handling faults is the ability to maintain the normal operation of the production line. GuardPLC provides multi-level diagnostic information to help engineers respond quickly.

1. Quick check of controller status indicator light

RUN light: Constant light indicates that the program is executing normally; Flashing indicates being in Stop mode; Extinguishing indicates that it is in the Failed Stop state.

ERROR light: Constant light indicates that a hardware error, operating system software error, or watchdog timeout has been detected, and the controller has entered Failed Stop; Flashing indicates that the Boot Loader has detected operating system corruption and is waiting for a new system to download. This is a signal of a serious malfunction.

FORCE light: constantly on indicates that a forced value is being executed; Flashing indicates that the mandatory value has been saved and will take effect after startup.

2. Common Failure Modes and Recovery

Permanent I/O failure: If a permanent failure occurs at an I/O point, only that point is disabled. If it is not possible to disable a single point, the entire module will be powered off. The controller will report errors to the user program.

Transient I/O fault: The module will perform a self-test, and if the self-test passes, it will return to normal. But the controller will count the error frequency. If it exceeds the set threshold, the module will be permanently marked as "faulty" and engineers need to perform a complete power outage restart or switch the controller back from Stop to Run through software to restore it.

Recovering from Failed Stop: This is the most common controller lock state. To restore, it must be done through RSLogix Guard PLUS! Software online, execute Reboot Resource in the Extra menu of the Control Panel. If the program has already been loaded, it will enter the Stop/Valid_Configuration state after restarting, and then you can choose to run it with a cold start.

3. Diagnostic data management

The controller stores short-term and long-term diagnostic data. When the short-term storage area is full, new data will overwrite the oldest entries. The long-term storage area is designed with a protection mechanism: it will only be overwritten by new records when the oldest record exceeds 7 days; Otherwise, the new record will be rejected and a prompt will be displayed in the diagnostic window to prevent valuable historical erroneous data from being accidentally cleared.

Chapter 5: Maintenance Points and Spare Parts Planning

Although most GuardPLC series have been discontinued, many factories are still running these systems. Mastering the key maintenance points is crucial.

1. Replacement of backup battery

GuardPLC 1200: The battery needs to be replaced every two years (part number 1754-BAT). Key operation: When replacing, it is necessary to ensure that the controller is powered on! Replacing the battery in the event of a power outage will result in the loss of all data (including clock settings) and controller reset.

GuardPLC 2000 power supply (1755-PB720): The battery is replaced every four years (part number 1755-BAT). Similarly, the controller must also be powered on during replacement.

2. Electrostatic protection (ESD)

When handling any internal components or replacing batteries, it is essential to comply with ESD protection regulations: wear a grounded wristband, discharge by touching grounded objects, and do not touch conductors or pins on the circuit board. Even a slight electrostatic discharge can damage sensitive integrated circuits.

3. IP address and SRS recovery

If the engineer forgets the IP address or system ID (SRS) of the controller, the GuardPLC 1600/1800 controller provides a 'reset button'. While holding down this button with an insulated pin, power on the controller again until the PROG status indicator light stops flashing. This will temporarily restore the default settings (IP: 192.168.0.99, SRS: 60000.1, username: Administrator, password: blank), allowing engineers to re-establish the connection.
