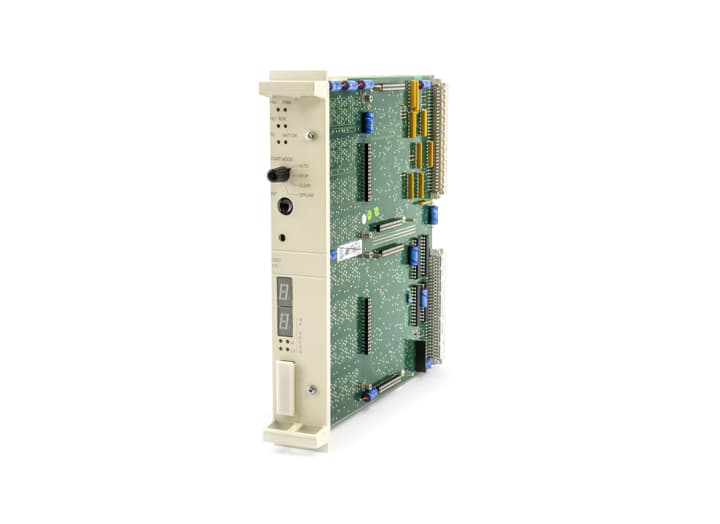

The ABB EXC57310001-ML DSPC 172 processor board is a high-performance control module designed for industrial automation and power systems, primarily for use in ABB's Distributed Control Systems (DCS).

Technical features and functionality

Hardware architecture

Based on Digital Signal Processor (DSP) technology, supporting real-time data processing and complex algorithms.

Integrated dual-processor core can simultaneously handle control logic and communication tasks to improve system response speed.

Equipped with a variety of communication interfaces, including Ethernet, RS-232/485, Profibus DP, etc., compatible with mainstream industrial protocols.

Specification

Model No.: DSPC 172, Product No. 57310001 - ML.

Type: Processor board.

Weight: Approx. 0.915kg.

Dimensions: The specific dimensions may vary according to different application scenarios, roughly 16cm×16cm×12cm.

Communication Interface: Supports a variety of communication protocols for seamless integration with different devices and systems, such as Ethernet, RS-232/485, Profibus DP and other mainstream industrial protocols to ensure smooth data transmission.

Operating Temperature Range: Stable operation in ambient temperatures from - 25°C to + 60°C, which can adapt to the harsher industrial environments.

Power Consumption: Power consumption varies according to specific application requirements.

Certifications: Complies with CE, UL, ISO 9001, ROHS and other certifications, providing a reliable guarantee of quality and environmental protection.

Software support

Compatible with ABB's AC800M controller series, supports programming and debugging with engineer's station (e.g. Control Builder M).

Provides C language and ladder diagram (LD) development environment, supports user-defined control logic.

Built-in fault diagnosis function, can monitor the module status in real time and generate alarm messages.

Application Areas

Power system

Generator excitation control: Stabilise generator output voltage and reactive power by real-time adjustment of excitation current.

High-voltage direct current transmission (HVDC): used for control and protection of converter stations, supporting rapid response to grid fluctuations.

Industrial Automation

Process control: Distributed control system for petrochemical, metallurgy and other industries to achieve accurate monitoring of production processes.

Motor drive: works with ABB frequency converters (e.g. ACS800 series) to realise efficient speed regulation and protection of motors.

Renewable Energy

Wind power: Integrated into the main control system of wind turbines to optimise wind energy capture and grid-connection control.

Photovoltaic inverters: support MPPT (Maximum Power Point Tracking) algorithm to improve solar power generation efficiency.

Compatibility and alternative models

System compatibility

Seamlessly integrates with ABB's 800xA, Advant OCS and other control systems, supporting cross-platform data interaction.

Compatible with third-party devices such as Siemens S7 series PLC and HMI.

Alternative Models

DSPC172H: An upgraded model (part number 57310001-MP) with similar performance parameters to the DSPC 172, but supporting higher processing frequency and larger storage capacity.

DSPC 320: For high performance computing scenarios, equipped with a floating point unit to support more complex control algorithms.

Precautions

Mounting Requirements

Mount vertically on a standard DIN rail, leaving at least 50mm of space for heat dissipation.

Avoid direct proximity to sources of strong electromagnetic interference (e.g. frequency converters, welding machines).

Programming specifications

It is recommended to use ABB's Control Builder M for programming to ensure code compatibility and security.

Back up the programme and configuration files regularly to prevent data loss.
