Beijer Mitsubishi Electric E1000 Series Operation Panel

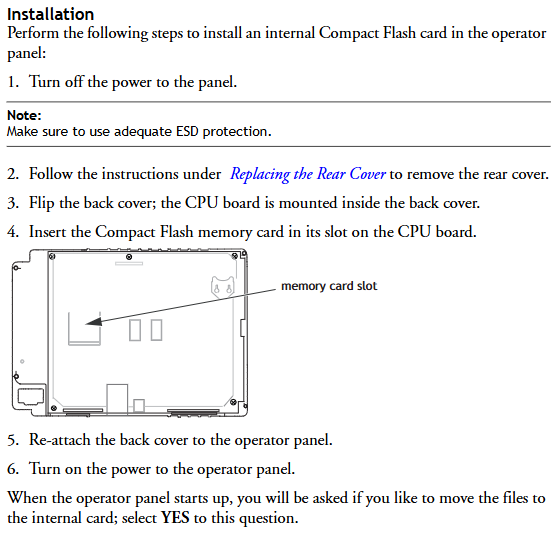

Maintenance personnel can perform operations such as back cover replacement, battery replacement, backlight replacement, and complete front cover replacement.

Service and Maintenance Regulations

Only authorized companies are allowed to provide services and repairs. Unauthorized company operations will result in the warranty being invalidated. If training is required, please contact the supplier.

All maintenance must be carried out within the temperature range of 15-30 ° C. The warranty for equipment damage caused by personnel is invalid, and the customer contract takes precedence over the document information.

Disassembly and scrapping requirements

The operation panel or its components must be recycled according to local regulations. Lithium batteries, electrolytic capacitors, displays, and other materials that may pose a risk to health and the environment.

Hardware related content

Hardware Overview

Before the operation panel is launched, it needs to be tested by an independent organization. For example, the E1000 series needs to pass CE, UL and other standard tests. Manufacturers have quality and environmental policy requirements for suppliers and subcontractors.

Hardware Testing

Manufacturers conduct comprehensive hardware testing before obtaining approval for the control panel, with some testing performed by external testing companies such as the Swedish National Testing and Research Institute. All products must pass the testing before leaving the factory.

Hardware specifications

Keyboard operation panel

There are differences in the technical parameters of different types of keyboard operation panels, and the following are the main model parameters:

Parameter E1012 E1022 E1032 E1060 (hardware version 07900 and above) E1062 E1070 E1100

Front panel dimensions (W x H x D) 155 x 114 x 6mm 155 x 155 x 6mm 202 x 187 x 6mm 275 x 168 x 6mm -285 x 177 x 6mm 382 x 252 x 6mm

Installation depth 46.4mm (including gap 146.4mm) -57mm (including gap 157mm) -57mm (including gap 157mm) -56mm (including gap 156mm) 58mm (including gap 158mm)

Front panel protection level IP 66- IP 66 IP 66- IP 66-

Rear panel protection level IP 20- IP 20 IP 20- IP 20-

Keyboard material: Thin film switch keyboard with metal shrapnel, Autotex F207 laminated (back printed), operable up to 1 million times - Thin film switch keyboard with metal shrapnel, Autotex F157 laminated (back printed), operable up to 1 million times - Thin film switch keyboard with metal shrapnel, Autotex F157 laminated (back printed), operable up to 1 million times - Thin film switch keyboard with metal shrapnel, Autotex F157 laminated (back printed), operable up to 1 million times-

Back Material Powder Coated Aluminum Powder Coated Aluminum Powder Coated Aluminum Powder Coated Aluminum Powder Coated Aluminum-

Weight 0.45kg 0.55kg 0.95kg 1.2kg-1.4kg 2.5kg

RS232C serial port 9-pin D-sub male, with 4-40 UNC standard locking screw -9-pin D-sub male, with 4-40 UNC standard locking screw -9-pin D-sub male, with 4-40 UNC standard locking screw -9-pin D-sub male, with 4-40 UNC standard locking screw-

RS422/RS485 serial port -25 pin D-sub female head (chassis mounted) with 4-40 UNC standard locking screw, 25 pin D-sub female head (chassis mounted) with 4-40 UNC standard locking screw -25 pin D-sub female head (chassis mounted), with 4-40 UNC standard locking screw-

Ethernet is connected through the Ethernet expansion module installed on the back - shielded RJ45 shielded RJ45 shielded RJ45 shielded RJ45-

USB - A-type host (USB 1.1), maximum output current 500mA A-type host (USB 1.1), maximum output current 500mA - A-type host (USB 1.1500mA), B-type device (USB 1.1)-

Application flash 512kB -12MB (including fonts) 12MB (including fonts) -12MB (including fonts)-

Real time clock ± 20 PPM, affected by ambient temperature and power supply voltage, maximum monthly error of 1 minute at 25 ° C, temperature coefficient 0.004ppm/° C ² - same left same left - same left-

Real time clock battery MS614S (UL and cUL: SII Micro Parts LTD) - CR2450 (UL and cUL: Sanyo or Panasonic), minimum lifespan of 3 years CR2450 (UL and cUL: Sanyo or Panasonic), minimum lifespan of 3 years - CR2450 (UL and cUL: Sanyo or Panasonic), minimum lifespan of 3 years-

Normal power consumption at rated voltage: 0.1A, maximum 0.3A - normal 0.15A, maximum 0.35A - normal 0.2A, maximum 0.4A - normal 0.3A, maximum 0.5A - normal 0.4A, maximum 0.9A - normal 0.5A, maximum 1.0A

Display screen FSTN-LCD, 160 × 32 pixels, monochrome transmission negative display, LED backlight (lifespan>47000h at 25 ° C) FSTN-LCD, 240 × 64 pixels, monochrome transmission negative display, LED backlight (lifespan>47000h at 25 ° C) FSTN-LCD, 240 × 64 pixels, monochrome semi transparent and semi reflective, LED backlight (lifespan>35000h at 25 ° C) TFT-LCD, 320 × 240 pixels, 64K colors, LED backlight (lifespan>20000h at 25 ° C) TFT-LCD, 320 × 240 pixels, 16 grayscale TFT-LCD, 640 × 480 pixels, 64K colors, CCFL backlight (lifespan>50000h at 25 ° C) h) TFT-LCD, 800 × 600 pixels, 64K colors, CCFL backlight (lifespan>50000h at 25 ° C)

Effective area of display screen (W × H) 89.6 × 17.9mm 90.2 × 24.0mm 127.0 × 33.8mm 115.2 × 86.4mm -131.5 × 98.6mm 211.2 × 158.4mm
