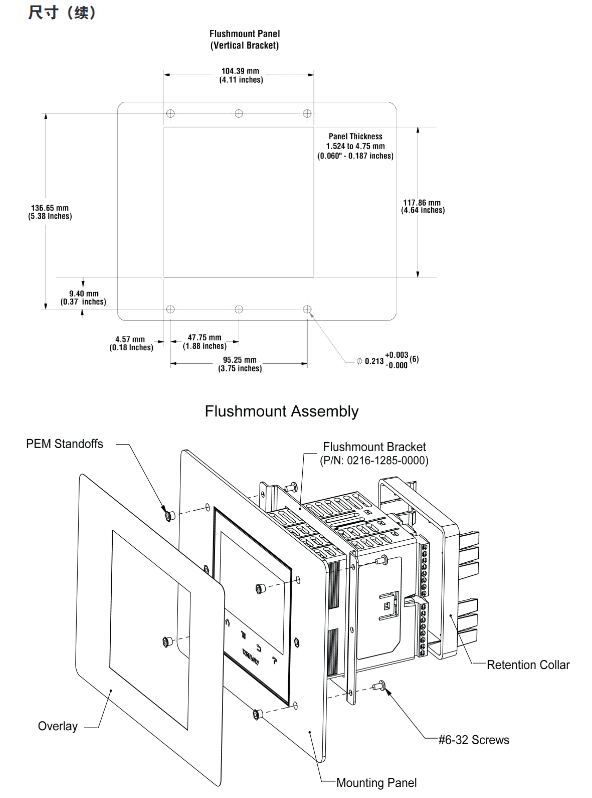

Watlow F4T Controller Installation and Failure

Ethernet settings:

Default parameters: IP 192.168.0.222, subnet 255.255.255.0, gateway 0.0.0.0;

DHCP connection: F4T is connected to the switch, and the DHCP server automatically assigns an IP address;

Fixed IP connection: PC is directly connected to F4T, and the first three segments of PC IP are consistent with F4T (such as 192.168.0. XXX).

Composer software:

Function: Configure elastic module (check if slot module matches), customize function block (alarm/timer/mathematical operation);

Troubleshooting and Maintenance

1. Common faults and solutions (partial)

Possible causes and solutions for the fault phenomenon

Alarm cannot be cleared/reset. 1. Alarm latch activation; 2. Alarm source setting error 1. Reset when the process is within range; 2. Select the correct input instance

No serial communication 1. Address/baud rate mismatch; 2. EIA-485 wiring error 1. Unified device protocol parameters; 2. T+/R+connected to B, T -/R - connected to A

Temperature runaway (overshoot/undershoot): 1. Thermoelectric dipole polarity reversal; 2. Heater short circuit: 1. Connect the red wire to the S terminal; 2. Replace the heater/repair the wiring

No display 1. Power off; 2. The fuse is open circuit; 3. Voltage error: 1. Check the circuit breaker/interlock; 2. Replace the fuse; 3. Confirm 24/240Vac

The process cannot reach the set point 1. The controller is not tuned; 2. Set the control mode to "off". 1. Perform automatic tuning; 2. Set as "PID" or "on-off"

2. Battery replacement

Battery specifications: Model BR2032 (Watlow part number 0830-0858-0000), nominal voltage 3V, lifespan of 10 years at 77 ° F (25 ℃), and replacement time of 7.5 years in harsh environments.

Replacement steps:

Turn off all power sources of F4T;

Use a small screwdriver to push out the battery holder from the side hole and remove the old battery (note the polarity clearly);

Insert the positive pole of the new battery to the left and reset the battery holder;

It is recommended to recycle used batteries and not dispose of them casually.

Model ordering rules (example: F4T11A1A1AA)

Example of optional values for field meanings

The first and second product series F4=T series controller

3rd basic type T=touch screen

4th application type 1=Standard, X=Custom

The 5th future option A=none, J=data record

6th power supply and connector 1=100~240Vac right angle connector (with identification)

The 7th and 8th bits of the configuration file and function block AA=no configuration file+basic function block

Customization options for positions 9-15 (connector/firmware/document) 1A=including DVD document+gray personalized border

Key issues

Question 1: What are the types of elastic modules (FM) for F4T controllers? What are the different types of core functions and slot installation rules?

Answer:

Types and core functions of elastic modules:

Hybrid I/O module (FMMA series): includes 1 universal input (supporting thermocouple/RTD/0~10V/0~20mA)+1 output (such as SSR, mechanical relay, switched DC), used for conventional temperature acquisition and load control, such as FMMA-UKAA-AAA (1 universal input+1 SSR output);

Restriction module (FMLA series): used for safety interlock control, including 1 input (universal/thermistor)+1-2 outputs (such as C-shaped relay, supporting normally closed interlock), such as FMLA-LCJ-AAA (restriction control with universal input+switched DC output);

High density I/O module (FMHA series): integrates multiple inputs/outputs, such as FMHA-RAAA-AAA (4 universal inputs), FMHA-JAAA-AAA (4 mechanical relay outputs), suitable for multi-channel acquisition and control scenarios;

Communication module (FMCA series): Only supports Modbus RTU protocol (EIA-232/485), used for serial communication between the controller and PLC/PC, such as FMCA-2AA-AAA.

Slot installation rules:

Exclusive slot: The communication module (FMCA series) can only be installed in slot 6 and cannot be recognized in other slots;

Multi slot requirement: Some high-density modules (such as dual SSR output FMHA-KAAA) require 2 adjacent slots and cannot be placed in slot 3 (single slot design);

Keying error prevention: The module has a keying structure and cannot be inserted upside down. The component side should face right (when viewed from the back of the controller);

Label requirement: After installation, slot number labels should be affixed to the module and junction box to avoid controller failure caused by inserting the wrong slot during replacement.

Question 2: How to correctly wire the thermocouple input of F4T controller? What steps should be followed when calibrating thermocouple inputs?

Answer:

Requirements for correct wiring of thermocouples:

Polarity differentiation: The negative lead of a thermocouple is usually red and must be connected to the S terminal (signal negative) of the module, while the positive lead is connected to the R terminal (signal positive). Reversing the connections can result in incorrect temperature readings;

Compensation wire: It is necessary to use a compensation wire made of the same alloy as the thermocouple (such as K-type compensation wire for K-type) to reduce the influence of ambient temperature on readings;
