Pilz PNOZ XV3P safety relay

Annual in-depth maintenance:

Check the torque of all terminal screws (0.5Nm), spring terminals do not require torque but need to be checked for complete insertion.

Clean the cabinet dust and check for water stains or corrosion.

If the module has been running for more than 20 years (TM), replacement should be considered, even if it still works.

Common errors and avoidance

During automatic startup, monitored startup wiring was used: forgot to short-circuit S13-S14, causing the unit to fail to start. Solution: In automatic start mode, it is necessary to permanently short-circuit S13-S14.

Unused feedback loop: Y39-Y40 open circuit causes the output to never close. If external expansion is not used, Y39-Y40 must be short circuited with jumper wires.

Double channel cross short circuit detection wiring error: The common terminals of two channels were mistakenly connected together, causing the detection function to malfunction. Strictly follow the wiring instructions in the manual to ensure that there is no direct short circuit between S22 and S32 (except during testing).

The contact fuse is too rough to keep the contact continuously open during welding: using a 10A slow speed fuse may still fail to effectively protect under AC15 load of 5A. Recommended specifications (6A slow speed or 10A fast melting) must be used. For inductive loads, the breaking capacity of the fuse should be sufficient.

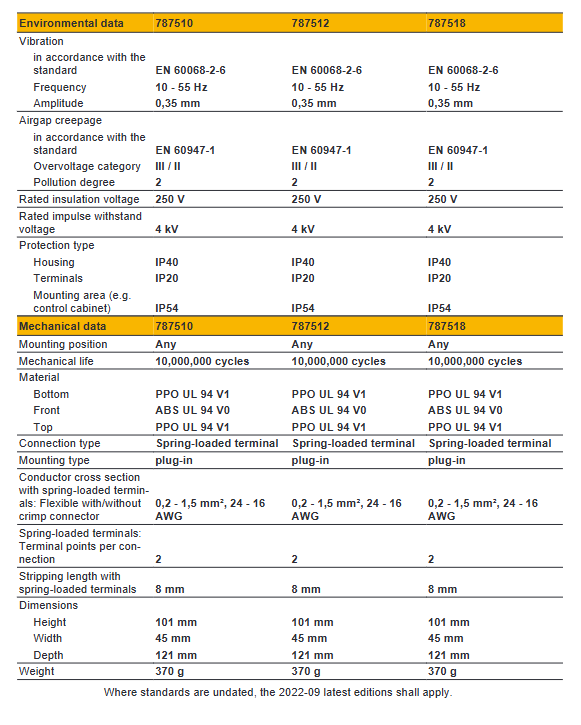

Neglecting environmental temperature: Using in environments exceeding 55 ℃ may result in a shortened lifespan of internal electronic components. Similarly, temperatures below -10 ℃ may not start.

Delay setting not validated: There is an error of+/-15% in the adjustable delay. For time critical applications, a timer should be used to measure the actual breaking time, and if necessary, a setting that is close but slightly shorter should be selected.
