Rockwell Automation CompactLogix 5380/5480 Complete Guide

Selection and Safe Troubleshooting of Rockwell Automation CompactLogix 5380/5480 Controller

Introduction: The new generation compact controller of Logix 5000 family

Rockwell Automation's CompactLogix series has long been the mainstay of small and medium-sized control systems. With the release of the latest specification sheet in 2023, the CompactLogix 5380, Compact GuardLogix 5380, and the all-new CompactLogix 5480 controller further enhance the coverage from standalone devices to large-scale process control. This article is based on official technical documents and provides engineers with a complete guide covering selection, safety levels, communication capacity, motion control, and on-site troubleshooting, helping you quickly locate problems in project design, system upgrades, and daily maintenance.

Overview and Core Dimensions of Controller Family Selection

2.1 Positioning of the Three Major Product Lines

Series representative models, core features, applicable scenarios

CompactLogix 5380 5069-L306ER to L3100ERM standard logic control, supports integrated motion (M model), some with process control (ERP) factory automation, process control, motion control

Compact GuardLogix 5380 SIL2 5069-L306ERS2 to L3100ERMS2 safety level SIL2/PLd (Cat. 3) safety related applications, such as emergency stop, grating

Compact GuardLogix 5380 SIL3 5069-L306ERMS3 to L3100ERMS3 safety level SIL3/PLe (Cat. 4), using a 1oo2 architecture for high-risk safety applications such as punching machines and robot units

CompactLogix 5480 5069-L430ERMW to L4200ERMW are embedded with Windows 10 IoT Enterprise. The Logix engine runs in parallel with the OS, requiring high-end control for local HMI and data analysis

2.2 Interpretation of Model Naming Rules

Taking 5069-L320ERMS2K as an example:

5069: Platform Series

L: Logix controller

320: User memory size (3.2 MB user memory? Actual need to refer to the specification table, here is the identification)

ER: EtherNet/IP dual port+supports DLR/linear/star shaped

M: Support Integrated Motion over EtherNet/IP

S2: SIL2 security level (standard if none, SIL3 if S3)

K: Conform Coating, suitable for harsh corrosive environments

Selection trap: If safety features are required in the project, but a standard model without S2/S3 suffix is mistakenly selected, it will not be able to pass the safety certification. On the contrary, if only standard logic is required but the secure type is chosen, it will waste the budget.

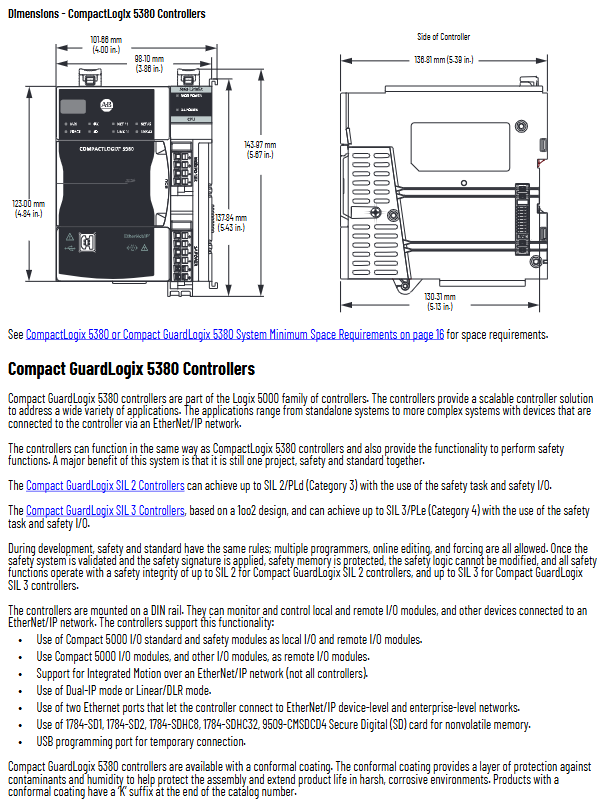

Deep Analysis of Compact GuardLogix 5380 Safety Controller

3.1 Key Differences between SIL2 and SIL3

SIL2 controller (such as 5069-L310ERS2): single processor architecture, up to IEC 61508 SIL2/EN ISO 13849-1 Cat.3 PLd. Security tasks and standard tasks run within the same controller, but the security memory is independently protected. After applying a secure signature, the security logic cannot be modified.

SIL3 controller (such as 5069-L310ERMS3): adopts a 1oo2 (one or two) architecture, dual channel processing safety logic, and implements SIL3/Cat.4 PLe. All model names include ERMS3 (note that ERMS2 is still SIL2). The user memory of SIL3 controller ranges from 0.6 MB to 10 MB, and the safe memory ranges from 0.3 MB to 5 MB.

Engineering experience: In safety circuit design, corresponding safety I/O modules must be used in conjunction. The Compact GuardLogix 5380 supports local Compact 5000 safety I/O and can also be remotely connected to 1756 ControlLogix safety I/O, 1734 POINT Guard I/O, FLEX 5000 safety I/O, and 1732 ArmorBlock Guard I/O.

3.2 Secure Signature and Locking Mechanism

Once the security system is verified and the security signature is applied through Logix Designer, the secure memory is write protected, and any online editing or forced point changes to the security logic are prohibited. If you need to modify the security program, you must:

Log in with an account that has security permissions

Unlock secure signature (requires entering authorization password)

Re validate and apply new signature after modification

Common malfunction: When the on-site engineer attempts to modify the safety logic online, it prompts "Safety signature mismatch". Solution: Confirm that the current security signature version in the controller is consistent with the project file. If it does not match, you need to download the complete security program again.

Environmental specifications and selection of three proof coatings

4.1 Working temperature and spacing requirements

All CompactLogix 5380 series controllers have a working temperature range of 0 ° C to+60 ° C (SIL2 controllers) and a storage temperature range of -40 ° C to+85 ° C. However, during actual installation, the minimum distance between the controller and cabinet walls, cable trays, and other equipment depends on the current working temperature:

Controller type: Minimum spacing at 50 ° C: 55 ° C: 60 ° C

Standard 5380/Process 50.8 mm (2 in) 50.8 mm 101.6 mm (4 in)

GuardLogix 5380 SIL2 A Series 50.8 mm 101.6 mm 152.4 mm (6 in)

GuardLogix 5380 SIL2 B series 50.8 mm 50.8 mm 101.6 mm

GuardLogix 5380 SIL3 50.8 mm 50.8 mm 101.6 mm

Attention: Installing SIL2A series controllers in a space less than 152.4 mm at 60 ° C may result in poor heat dissipation and frequent CPU overheating and restarts. Solution: Increase cabinet fans or downgrade usage (reduce I/O load).

4.2 Conformal Coating

The controller with K at the end of the model (such as 5069-L310ERMS2K, 5069-L350ERMS3K) has been treated with a three proof coating, which can resist moisture, corrosive gases (such as hydrogen sulfide, chlorine gas), and dust. Suitable for harsh environments such as chemical plants, offshore platforms, and sewage treatment. The standard model does not come with a coating, and if used in these situations, circuit board corrosion and intermittent communication failures may occur within a year.

Fault case: A chemical plant used the standard model 5069-L320ER, but after one year, there were frequent Ethernet port link failures. During disassembly inspection, white corrosion was found on the surface of the PCB. The problem was solved after replacing with a model with K coating.

Communication and I/O Capacity Planning (Essential for Engineers)

5.1 Ethernet Node Count Limit

The number of EtherNet/IP nodes supported by the controller depends on the specific model, and the following are key data (Logix Designer v31 and above):

Maximum number of nodes for the model

5069-L306ER/L306ERM/L306ERS2, etc. 16

5069-L310ER/L310ERM/L310ERS2, etc. 24

5069-L320ER/L320ERM/L320ERP/L320ERS2, etc. 40

5069-L330ER/L330ERM/L330ERS2, etc. 60

5069-L340ER/L340ERM/L340ERP/L340ERS2, etc. 90

5069-L350ERM/L350ERS2, etc. 120

5069-L380ERM/L380ERS2, etc. 150

5069-L3100ERM/L3100ERS2, etc. 180

5069-L430ERMW (5480) 60

5069-L450ERMW (5480) 120

5069-L4100ERMW (5480) 180

5069-L4200ERMW (5480) 250

Important: All devices added to the I/O configuration tree are counted as nodes, including remote adapters (such as 5069-AENTR), embedded Ethernet devices (frequency converters, I/O modules), another controller connected to the producer/consumer, and third-party devices. If HMI is directly placed in the I/O configuration tree, it will also be accounted for.

Troubleshooting: When the number of project nodes exceeds the controller limit, Logix Designer will prompt "Too many I/O connections". Solution: Re evaluate the network architecture, use switch layering to reduce the number of devices directly connected to the controller, or upgrade to a controller with a higher number of nodes.

5.2 Limit on the number of local I/O modules

The CompactLogix 5380 system locally supports Compact 5000 I/O modules. The maximum quantity varies by model:

Low end models (L306/L310 series): up to 8 local I/O modules.

Mid end models (L320 series): up to 16.

High end models (L330 and above): up to 31 (but note that L330 is limited to 16 in Logix Designer v29 and only supports 31 in v30 and above).

GuardLogix SIL3 model: Local support for mixed use of standard I/O and safety I/O, with the same quantity as above.

Important: If installing Compact 5000 I/O modules next to the controller, the entire system must be installed horizontally. If Compact 5000 I/O is not installed, CompactLogix 5480 can be installed in any direction.

5.3 Remote I/O Support

Through the EtherNet/IP network, the controller can connect to various remote I/O series:

Rack mounted: 1746 SLC, 1756 ControlLogix, 1769 Compact I/O, Compact 5000

Cabinet type: 1734 POINT I/O, 1794 FLEX I/O, FLEX 5000

On the machine: 1732 ArmorBlock, 1738 ArmorPOINT

Secure remote I/O only supports Compact 5000 Secure I/O, 1756 ControlLogix Secure I/O, 1734 POINT Guard I/O, FLEX 5000 Secure I/O, and 1732 ArmorBlock Guard I/O.

Integrated motion control selection

For applications that require servo control, it is necessary to choose a controller with M included in the model (such as 5069-L320ERM, 5069-L350ERMS3). The motion control capacity is as follows:

The maximum number of axes for the controller, including the upper limit of the number of driving axes for the position ring

5069-L306ERM 2 2

5069-L310ERM 4 4

5069-L320ERM 6 6

5069-L330ERM 8 8

5069-L340ERM 16 16

5069-L350ERM 32 24

5069-L380ERM 60 28

5069-L3100ERM 256 32

5069-L430ERMW (5480) 64 16

5069-L450ERMW (5480) 128 24

5069-L4100ERMW (5480) 256 32

5069-L4200ERMW (5480) 512 150

Selection suggestion: If the project requires more than 32 axes, the CompactLogix 5480 series must be selected. At the same time, it is important to note that the motion control cycle time should match the EtherNet/IP network load, and it is recommended to use independent network segments or DLR ring networks to ensure real-time performance.

Non volatile storage and SD card operation

7.1 Supported SD Cards

The controller supports the following Secure Digital cards:

1784-SD1（1 GB）

1784-SD2（2 GB）， Comes with the controller

1784-SDHC8（8 GB）

1784-SDHC32（32 GB）

9509-CMSDCD4 (4 GB, used to enable license based source protection and execution protection)

Environmental specifications: Operating temperature -40 ° C to+85 ° C, storage -65 ° C to+150 ° C, anti vibration 15g peak.

7.2 Common SD Card Malfunctions

Fault 1: The controller does not load the program after power on, displaying "Load from SD card failed".

Troubleshooting: Check if the SD card is formatted as FAT32; Confirm that the 'Load on Power Up' option is correctly configured in Logix Designer; Try unplugging the SD card again (power off operation). If the card is damaged, use a new card and re store the program.

Fault 2: The SD card write protection switch is locked.

Solution: Turn the mechanical switch on the side of the SD card to the unlock position. Note that 9509-CMSDCD4 does not have a write protection switch.

Important: It is strongly recommended to only use SD cards provided by Rockwell Automation, as third-party cards may have compatibility issues such as inability to recognize or data corruption.

Mandatory installation of end caps

The rightmost module of each CompactLogix 5380/5480 system must be equipped with an end cap 5069-ECR. The end cap is provided with the controller. If powered on without installing the end cap, it may pose a risk of electric shock and equipment damage, as the end cap covers the exposed internal interconnect pins on the last module.

Common errors on site: Engineers forget to move the end cap to the new rightmost position after expanding I/O, resulting in random faults or short circuits during system operation. Solution: After adding or removing modules, be sure to check if the end cap is located on the far right.

Key points for wiring of Removable Terminal Block (RTB)

The CompactLogix 5380 and GuardLogix 5380 controllers require two types of RTBs:

MOD power supply: 4-point RTB, providing 24V DC to the controller logic.

SA power supply: 6-point RTB, used to transmit on-site power (SA Power) to the I/O module.

There are two types of RTB kits:

5069-RTB64-SCREW: Screw Terminal

5069-RTB64-Spring: Spring Terminal

Attention when wiring:

MOD power supply voltage range: 18-32V DC, maximum current 10A (total current through RTB does not exceed 10A).

The SA power supply can be connected to DC or AC (0-240V AC, 47-63 Hz), with a maximum current of 10A.

Each power terminal has overcurrent protection (there is no fuse inside the controller, and an external power supply is required to provide current limiting).

Troubleshooting: If the controller restarts intermittently, measure whether the MOD power terminal voltage is below 18V or has excessive ripple. If the SA power supply is short circuited, the controller will report a module fault and the on-site wiring needs to be checked.

Compatibility with communication with other controllers

The CompactLogix 5380/5480 can communicate with the following controllers via EtherNet/IP:

CompactLogix 5370/5380/5480

ControlLogix 5570/5580

GuardLogix 5570/5580 (Safety)

1768 CompactLogix、 1769 Modular CompactLogix, 1769 Integrated CompactLogix

1789 SoftLogix 5800

PowerFlex with DriveLogix

1785 PLC-5 (requires 1761-NET-ENI serial port to Ethernet conversion)

1747 SLC (requires built-in Ethernet port or 1761-NET-ENI)

1761/1762/1763/1764/1766 MicroLogix (some require 1761-NET-ENI)

Attention: When communicating with the old PLC-5 or SLC, it is necessary to configure the message command (MSG) and set the correct communication path.

The particularity of CompactLogix 5480

The CompactLogix 5480 is the flagship of the family, with a built-in Windows 10 IoT Enterprise operating system that runs in parallel with the Logix control engine. Its characteristics:

Three types of Ethernet ports: three for the Logix engine (supporting DLR/linear/star), and one independent embedded Ethernet port for Windows.

USB 3.0 ports: Two, capable of connecting external devices such as keyboards and mice.

DisplayPort: Directly connect to a monitor and run Windows applications such as FactoryTalk View SE.

User memory: Logix engine 3-20 MB, Windows system comes with 6 GB RAM+64 GB SSD.

Motion control: up to 512 axes, with a maximum of 150 position ring drive axes (5069-L4200ERMW).

Installation direction: If Compact 5000 I/O is not installed next to the controller, the 5480 can be installed in any direction (horizontal or vertical), but it is recommended to install horizontally to ensure heat dissipation.

Safety certification: The 5480 series has not obtained ATEX/IECEx explosion-proof certification (compared to GuardLogix 5380 which has Ex nA or Ex ec certification), therefore it cannot be used in hazardous areas.

Common fault codes and quick troubleshooting table

Possible causes and solutions for the fault phenomenon

The OK light flashes red. The controller is not programmed or the program is lost. Download the program through Logix Designer; Check SD card loading configuration

I/O module displays yellow triangle module mismatch or connection interruption. Check if the module type and configuration are consistent; Rescan the I/O tree

Ethernet port LINK light not on, network cable fault or switch port dead test network cable; Replace the switch port; Check if ports are misused in Dual IP mode

Stop the security task. If the security signature is invalid or the security logic is incorrect, reload the security program with a valid signature; Check the wiring of the safety circuit

SD card loading failed due to incorrect card format or file damage. Use the controller to reformat the SD card (through the "Storage" operation in Logix Designer)

Excessive tracking error of the motion axis increases the cycle time of the motion task due to high network load or insufficient cycle time; Put sports data in a separate VLAN or use DLR ring network

Controller overheating shutdown environment temperature exceeding 60 ° C or insufficient spacing, increase cabinet cooling; Check if it meets the minimum spacing requirements (see Chapter 4)

USB programming port cannot connect to driver program not installed or cable quality issues using standard USB Type B cable; Install Rockwell USB driver (included with Logix Designer)

Reference for shutdown replacement and upgrade path

Although the current document does not list discontinued models, according to industry practices, the following replacement strategies are available for reference:

Original CompactLogix 5370 L3 (such as 1769-L33ER) → 5380 corresponding model (such as 5069-L330ERM). Note that 5370 uses 1769 I/O, while 5380 uses Compact 5000 I/O, so I/O modules need to be replaced simultaneously. But the 5380 supports remote I/O by reserving a portion of 1769 I/O through EtherNet/IP.

Original GuardLogix 5370 (such as 1769-L33ERMS) → 5380 SIL2 or SIL3 corresponding model. The security program needs to be revalidated.

Replacing the original ControlLogix 5560/5570 with CompactLogix 5480 can reduce costs, but attention should be paid to whether the I/O capacity and number of motion axes meet the requirements.

Summary of replacement steps:

Export the original project (. L5K or ACD）。

Create a new project and select the target 5380/5480 controller.

Import logic and remap I/O addresses (due to different I/O buses).

Download and test.
