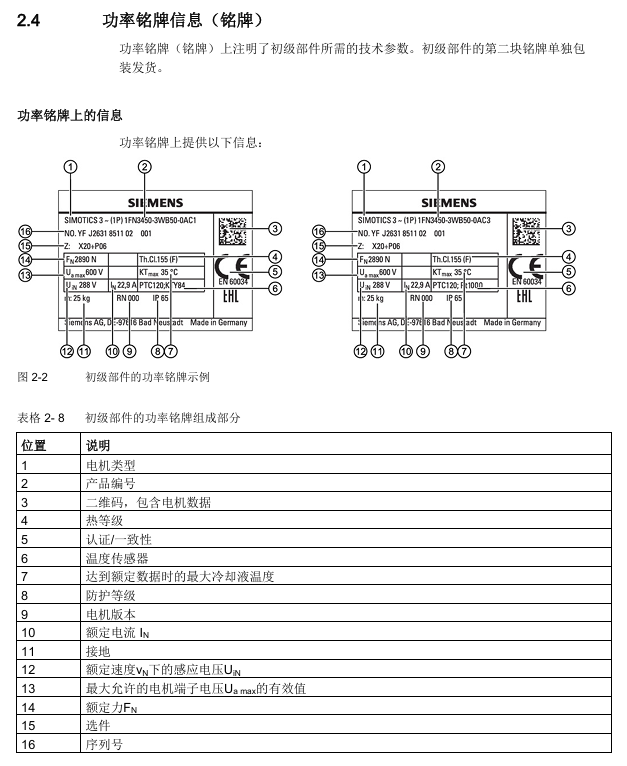

SIEMENS SIMOTICS L-1FN3 Linear Motor Operating Instructions

Abnormal no-load heating F (cooling not connected), G (insufficient water volume), connect cooling, check cooling water volume/inflow temperature

Slow shaft response E (winding short circuit), L (poor alignment), check winding resistance, and re align machine guide rail

Maintenance requirements: There is no regular maintenance cycle, and the following situations require maintenance: foreign objects around the motor, machine abnormalities (visual/auditory), decreased positioning accuracy, and increased current; During maintenance, power off and cool down for 30 minutes, clean the air gap chips/dust, and check the cable shielding layer.

6. Scrapping and waste disposal

Dismantling steps: In reverse order of installation, power off and discharge first → cool for 30 minutes → disconnect cooling → clamp cable → drain coolant → remove primary components → remove secondary components;

Waste disposal:

Secondary components: Professional enterprises are required to use a furnace with a temperature of ≥ 300 ° C to demagnetize for at least 30 minutes, collect and treat exhaust gas;

Material classification: electronic waste (encoder/winding/cable), iron waste (iron core), aluminum, insulation materials;

Packaging: Recyclable materials (PE-HD/PE-LD/PP/PS) recycling, wood is combustible.

Appendix and Support

Manufacturer recommendations: corrosion inhibitors (Tyfocor, Antifrogen N), cooling connectors (Rectus), plastic hoses (Festo/Rectus), distance film (SAHLBERG);

Abbreviations: Temp-S (over temperature cut-off monitoring circuit), Temp-F (temperature observation circuit), HSB (Hall sensor box), PE (protective grounding);

Additional guidance: Installation size of Hall sensor box (fixed position and spacing for different motor models, such as 35mm distance between HSB and primary components of 1FN3050-150 motor).
