TOSHIBA TOSBERT VF-S15 Engineering Practice: From Safe Installation to Quick Check of Fault Codes

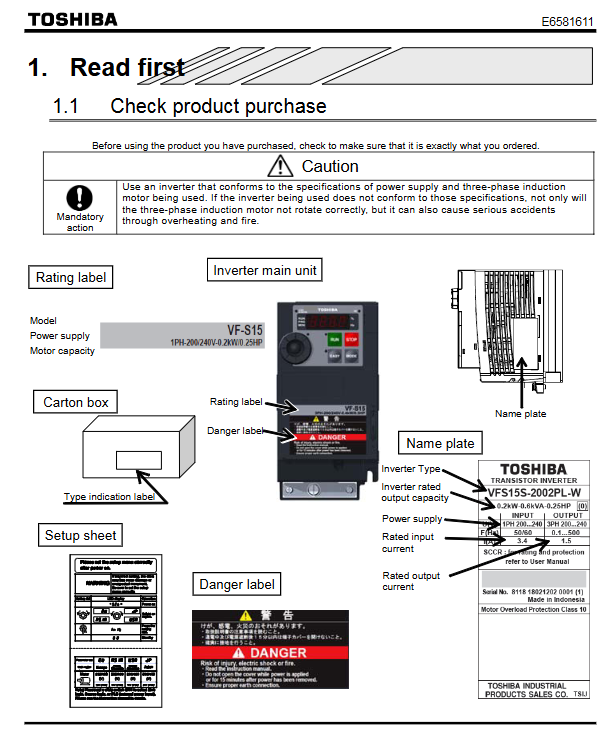

In industrial automation sites, frequency converters are the core equipment that drives motors. The Toshiba TOSBERT VF-S15 series occupies an important position among many existing devices due to its wide power range (three-phase 240V 0.4-15kW, single-phase 240V 0.2-2.2kW, three-phase 500V 0.4-15kW), flexible I/O configuration, and powerful ability to support V/f control and Sensorless vector control. As equipment ages, engineers often face issues such as downtime, parameter loss, selection confusion, and matching of braking resistors. This article provides an immediately usable technical guide from the perspective of frontline maintenance, focusing on the hardware installation, parameter debugging, typical fault handling, and preventive replacement strategies of VF-S15.

Safety and installation: an unbreakable red line

Before starting any operation, it must be clear that the internal DC bus capacitor of VF-S15 can still maintain dangerous voltage after power failure. The manual clearly requires that "after cutting off the input power, wait for at least 15 minutes until the charging indicator light goes out" before conducting maintenance. In addition, due to the presence of ESD sensitive components inside, electrostatic protection measures must be taken before contacting the PCB.

Installation environment requirements:

Environmental temperature: -10 ℃~60 ℃ (if it exceeds 40 ℃, it needs to be reduced in capacity and the top protective label needs to be removed).

Humidity below 90%, no condensation; Altitude not exceeding 1000 meters; Vibration ≤ 5.9m/s ².

It must be installed vertically on the metal plate to ensure smooth ventilation of the heat dissipation duct.

When multiple units are installed side by side, a gap should be reserved in the horizontal direction. If the temperature exceeds 40 ℃, the top protective label should be removed and the capacity reduced.

Grounding key:

The grounding impedance of 200V level models should be lower than 100 Ω (Class D grounding), and 400V level models should be lower than 10 Ω (Class C grounding).

Special grounding terminals must be used and cannot be replaced with casing screws. The grounding wire diameter varies from 2.0mm ² to 22mm ² depending on the capacity.

Prohibited items for main circuit wiring:

It is strictly prohibited to connect the input power to the U/T1, V/T2, W/T3 output terminals, otherwise the internal IGBT will be instantly damaged.

It is prohibited to install power factor compensation capacitors, surge suppressors, or RFI filters on the output side.

When the length of the motor cable exceeds 50m, the carrier frequency (F300) should be reduced: ≤ 5kHz for 50-100m and ≤ 2.5kHz for over 100m to avoid overcurrent misoperation caused by distributed capacitance in the line.

In addition, single-phase input models output three-phase and cannot drive single-phase motors. These basic rules are the prerequisite for the long-term stable operation of the equipment, and any negligence may lead to IGBT explosion or control board failure.

Control terminal wiring and signal type selection

The control terminal block of VF-S15 provides multifunctional inputs (F, R, RES, S1~S3), analog inputs (VIA, VIB, VIC), analog outputs (FM), and relay outputs (FLA/FLB/FLC, RY/RC). The first challenge that engineers often encounter is the selection of SINK/Source logic and the functional configuration of VIA/VIB/VIC terminals.

SINK/Source switch (SW1):

SINK logic (negative logic) using internal 24V power supply: Short circuit the P24 terminal to the CC terminal, with the input common terminal being CC. When the signal terminal is closed, current flows out.

Source logic using internal 24V power supply: Connect the P24 terminal to the input common terminal, with the CC terminal as the common terminal. When the signal terminal is closed, current flows in.

The default setting is SINK logic (PLC side). Incorrect configuration can result in input signals being unrecognizable.

VIA/VIB/VIC Analog Input Configuration:

VIA terminal: default 0~10V input, resolution 1/1000. It can be switched to logical input through the F109 parameter.

VIB terminal: default 0~10V input, can be switched to -10~+10V bipolar input through F107 parameter, resolution 1/2000. It can also be switched to logic input (S4 side) through slide switch SW2 (upper part).

VIC terminal: 4-20mA current input, internal sampling resistor 250 Ω, resolution 1/1000.

For the detection of 4-20mA signal loss, F633 (analog input disconnection detection level) and F644 (action selection) need to be set, which can be configured to continue running, slow down and stop, or run at a preset frequency.

Typical definition of multifunctional terminal:

Factory default: F=forward rotation, R=reverse rotation, RES=reset, S1~S3=multi-stage speed SS1~SS3. In practical applications, it is often modified to:

External fault input (46/47): Emergency stop is achieved through normally open/normally closed contacts.

Emergency stop (20/21): The shutdown is triggered through the EXT terminal, and the shutdown mode is selected by F603.

Speed increase/decrease (88~93): Achieve stepless adjustment, set response time and step size in conjunction with F264~F269.

Second motor switching (152): Switch between different motor parameter groups.

The function of each terminal is independently set through F111~F118 and cannot be repeated.

Core parameter analysis and debugging pitfalls

The parameters of VF-S15 are divided into four groups and can be switched through the MODE key: basic parameters, extended parameters (F100~F899), communication parameters, etc. The keyboard supports direct jumping of parameter numbers and inter group jumping, and mastering it can greatly shorten debugging time.

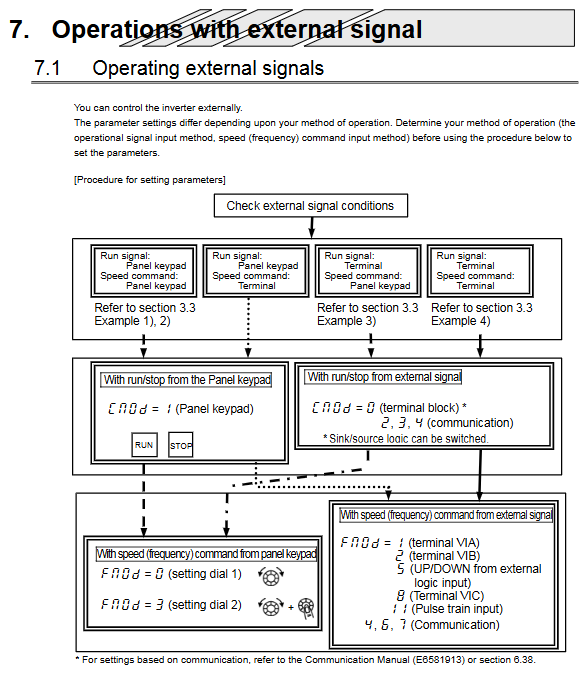

Frequency setting and operation instruction source (Cmod and Fmod):

Cmod (Command Mode Selection): 0=Terminal Block, 1=Panel Keyboard (including Expansion Panel), 2=RS485 Communication, 3=CANopen Communication, 4=Communication Options. The default value is 1 (panel control).

Fmod (frequency setting mode selection): 0=set dial 1 (power off save), 1=terminal VIA, 2=terminal VIB, 3=set dial 2 (save by center), 4=RS485 communication, 5=external logic UP/DOWN, 8=terminal VIC, 11=pulse train input, 14=multi segment speed 0.

Common error: Setting Cmod=0 (terminal control) but not short circuiting F-CC, the motor does not rotate; Or Fmod=0 but the dial is not set to frequency.

Acceleration and deceleration time and multi-stage settings:

ACC (A009) and DEC (A010) are used for basic acceleration and deceleration, with a default of 10.0 seconds and a range of 0.0~3600 seconds. The unit can be switched to 0.01 seconds through F519.

When multiple sets of acceleration and deceleration are required, F500 (acceleration time 2), F501 (deceleration time 2), F510 (acceleration time 3), F511 (deceleration time 3) can be set and selected through input terminals (AD2, AD3) or frequency switching points (F505, F513).

Note: F502/F503/F512 can be set to waveform modes of acceleration/deceleration 1/2/3 respectively (linear, S-shaped 1, S-shaped 2).

V/f mode and torque boost (F300 series):

F300 (PWM carrier frequency): Range 2.0~16.0kHz, default 12.0kHz. The higher the carrier wave, the lower the motor noise, but the leakage current and RF interference increase. Long term applications require a reduction in carrier frequency.

P (V/f control mode selection): 0=V/f constant, 1=variable torque, 2=automatic torque boost, 3=vector control, 4=energy saving, 5=dynamic energy saving (for fans and pumps), 6=permanent magnet motor control, 7=V/f 5-point setting.

For heavy load startup, the ub (F016) setting can be manually increased by torque (0-30%). If automatic torque boosting (P=2) is enabled, the motor constant needs to be determined through automatic tuning.

Sensorless vector control (P=3): Motor parameter self-tuning (F400=2) is required first, and the system automatically measures stator resistance (F402) and leakage inductance. But the manual clearly states: "When the drive capacity differs from the motor capacity by more than two levels, vector control may not function properly

PID control (F360~F389):

Used for constant pressure water supply, tension control, etc. The feedback source is selected through F369 (VIA/VIB/VIC), and F360 selects process PID or speed PID. Proportional gain F362, integral gain F363, and differential gain F366 require on-site debugging. F367/F368 sets upper and lower limits. The sleep/wake function (F359/F256/F391) can prevent the water pump from running idle at low frequencies.

Selection of Braking Resistors and Dynamic Braking

VF-S15 does not include a braking resistor internally and requires external connection. For situations that require rapid parking, continuous regeneration of loads (such as elevators), or frequent occurrence of overvoltage (OP), an external braking resistor must be connected.

The manual provides a selection table for standard braking resistors (3% ED):

200V 0.75kW（VFS15-2007PM-W）：PBR-2007（120W-200Ω）

200V 2.2kW（VFS15-2022PM-W）：PBR-2022（120W-75Ω）

200V 5.5kW（VFS15-2055PM-W）：PBR7-004W015（440W-15Ω）

400V 4.0kW（VFS15-4037PM-W）：PBR-4037（120W-160Ω）

400V 15kW（VFS15-4150PL-W）：PBR7-008W030（880W-30Ω）

Minimum allowable resistance values: 12 Ω for 200V 5.5kW and 5 Ω for 200V 15kW; 400V 5.5kW is 43 Ω, and 400V 15kW is 16 Ω. It is strictly prohibited to connect resistors below the minimum allowable resistance value, otherwise it may damage the internal brake pipe.

The brake resistor wiring terminals are PA/(+) and PB. At the same time, it is necessary to set:

F304 (dynamic braking selection): Set to 1 (enabled and effective resistance overload protection).

F308 (braking resistance value): Input the resistance value (Ω) of the connected resistor.

F309 (braking resistor capacity): Input resistor power (kW).

To prevent fires, a thermal relay (THR) must be connected in series in the main circuit as a backup protection.

In depth investigation of typical fault codes

When the keyboard displays a fault code, the vast majority of cases are not due to hardware damage to the inverter, but rather external parameter or wiring issues. The following are the high-frequency faults that occur on site and their handling paths.

OC1/OC2/OC3 (overcurrent)

Trigger condition: The output current exceeds the rated value by about 200%.

Common causes and solutions:

Short acceleration and deceleration time: Increase ACC/DEC.

Improper V/f setting: Check the P and UB parameters and reduce the torque boost value.

Motor cable damage causing short circuit: shake test insulation, replace cable.

Input start signal to the rotating motor: Enable F301 (speed search) or F302 (energy feedback control).

Using low impedance high-speed motors: It is recommended to use a higher capacity driver.

OP1/OP2/OP3 (overvoltage)

Trigger condition: The DC bus voltage exceeds 400V (200V level) or 800V (500V level).

Main reason: The deceleration time is too short, and the regenerative energy of the motor is injected back. Solution: Extend deceleration time and install braking resistors. In addition, voltage fluctuations caused by the opening and closing of power factor compensation capacitors or thyristor systems on the power supply side can also lead to OP, in which case an input reactor needs to be installed.

OL1 (frequency converter overload)

Trigger condition: 150% action per minute.

Reason: Short acceleration time, excessive DC braking, and heavy load. Solution: Increase acceleration time, reduce F251 (DC braking current), and increase driver capacity. If the carrier frequency is high and the load is heavy at low frequencies (below 15Hz), F316 can be set to 1 (automatic carrier down conversion).

OL2 (motor overload)

Trigger condition: Electronic thermal relay action.

Reason: Improper V/f setting, motor stalling, long-term low-speed operation. The electronic thermal protection characteristics are selected through OLm (F017), and standard motors need to choose 0 or 1, while VF dedicated motors need to choose 4 or 5. Attention: When driving multiple motors or when the motor capacity differs significantly from the driver capacity, electronic thermal protection will fail and an external thermal relay is required.

OH (overheating)

Trigger condition: The temperature of the heat sink exceeds about 85 ℃ (IGBT component pre alarm at about 95 ℃).

Troubleshooting: Has the cooling fan stopped running? The lifespan of the fan is about 10 years. If it gets stuck or makes loud noise, it needs to be replaced. Is the ambient temperature too high? Is the ventilation opening blocked? F620 can set the fan to "automatic control" and only start during high temperatures or operation to extend its lifespan.

ERR5 (Communication Error)

Trigger condition: RS485 communication interruption time exceeds the set value of F803.

Troubleshooting: Check if F800 (baud rate), F801 (parity check), and F802 (station number) are consistent with the main station. F804 selects timeout action (only alarm or trip).

Preventive maintenance and component replacement cycle

Although VF-S15 is durable, its internal electrolytic capacitors and cooling fans will age over time and temperature. Based on manual maintenance suggestions:

Typical failure phenomena of component standard replacement cycle

Cooling fan with loud noise, no rotation, and frequent OH for 10 years

The electrolytic capacitor in the main circuit has a 10-year capacity decrease (output current ≤ 80% rated), large ripple, and false positive input phase loss

Abnormal parameter storage and EEPROM failure of electrolytic capacitors on the control board after 10 years

Relay inspection results show that the contacts are stuck or unable to engage

Attention to replacement operation: It must be carried out after power failure and discharge. Fan replacement requires opening the bottom cover, refer to the original label for the model. For drives that have been stored unused for a long time (more than 2 years), they should be powered on for at least 5 hours every two years to restore the performance of the main circuit electrolytic capacitor. It is recommended to use a voltage regulator to slowly increase the voltage to the rated value.

Parameter backup: Read all parameters through RS485 (via Toshiba communication tool) or manually record key values. After replacing the control board, it is necessary to perform F400=2 (automatic tuning) to re measure the motor constant. If automatic tuning fails (displaying "etn1"), manual input of nameplate parameters such as F405 (rated motor capacity), F415 (rated current), F417 (rated speed), etc. is required.

Functional safety and emergency stop

VF-S15 supports multi-level emergency stop strategy, implemented through F603 (emergency stop selection) and input terminal function 20/21 (EXT).

Emergency stop method:

0: Free parking: Cut off the output and stop the motor sliding.

1: Slow down and stop: Slow down and stop according to the current DEC time.

2: Emergency DC braking: Apply DC braking according to F251 (DC braking amount) and F604 (emergency DC braking time).

3: Slow down parking (F515): Quickly stop according to the emergency deceleration time set by F515.

4: Rapid deceleration control: Enable overexcitation control to accelerate energy consumption.

5: Dynamic rapid deceleration: more aggressive energy consumption control.

Notes:

During the effective period of the emergency stop signal, the trip cannot be reset. External signals must be cleared before resetting.

If it is necessary to apply a lift, a mechanical brake must be added, and it cannot rely solely on the electrical brake of the frequency converter.

For situations where the automatic restart (F301) or retry function (F303) is activated, a warning label must be posted on the motor and equipment stating 'sudden start danger'.

CE/UL Compliance and EMC Measures

For equipment exported to the European or North American markets, VF-S15 must comply with the corresponding directives.

CE (EMC Directive 2004/108/EC):

Emission standard: IEC61800-3 C1 or C2 category (depending on motor wire length and filter).

Measure: Shielded motor cables and control cables must be used. Install EMC filters on the input side (some models have built-in filters, such as single-phase 240V and three-phase 500V). The grounding of the EMC board (optional) and shielding layer must be reliable (fixed with metal clamps, with a large contact area).

Leakage current impact: When there is a long line or high carrier, the leakage current increases, which may cause misoperation of the leakage protector. It is recommended to use high-frequency countermeasure type residual current circuit breakers or reduce the carrier F300.

UL/cUL：

Applicable models: All models with UL/CSA markings.

Branch circuit protection: UL certified Class J or Class CC fuses must be used (see Table I-7 in the manual). For example, the 200V 4.0kW model requires a Class J 45A fuse.

Environmental temperature: 240V 0.75kW and below models, UL compliance requires environmental temperature ≤ 40 ℃.

Short circuit withstand current (SCCR): It needs to be matched with a specified type of circuit breaker or fuse to reach 100kA.
