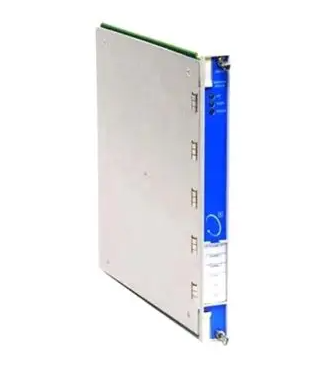

The Bently Nevada 3500/32 125712-01 Relay Module is a critical component of the 3500 Machinery Protection System, designed to provide configurable relay outputs for alarm annunciation and machinery protection logic. In industrial environments where rotating equipment reliability is essential, relay modules act as the interface between monitoring systems and external protection mechanisms. The 3500/32 module enables automated responses when abnormal operating conditions are detected.

Within a comprehensive condition monitoring architecture, the relay module processes alarm signals generated by monitoring modules such as vibration monitors, temperature monitors, and process variable monitors. When a parameter exceeds its predefined limit, the system logic activates relay outputs, allowing external devices such as alarms, shutdown circuits, or control systems to respond immediately.

Integration with the 3500 Machinery Protection System

The 3500 platform is widely used for continuous monitoring and protection of critical rotating machinery including turbines, compressors, pumps, and generators. The 3500/32 relay module functions as a programmable output interface that translates monitoring results into physical relay actions.

Each relay can be configured to respond to specific alarm conditions within the monitoring system. This flexibility allows engineers to design protection strategies tailored to the operational requirements of their machinery. For example, a relay may activate when vibration exceeds a danger level, when temperature surpasses operational limits, or when multiple parameters meet predefined logic conditions.

By connecting monitoring data with control actions, the relay module helps ensure rapid protective responses, minimizing equipment damage and improving overall plant safety.

Relay Output Functionality

The Bently Nevada 3500/32 module provides multiple relay outputs that can be individually configured to support different protection strategies. These relays function as electromechanical switches capable of controlling external circuits.

Relay outputs are commonly used for:

• Alarm annunciation systems

• Equipment shutdown circuits

• Process control integration

• Safety interlock activation

• Notification systems for abnormal machine behavior

Because each relay can be programmed through the system configuration software, users can define how alarms are mapped to relay responses. This ensures that the protection system operates according to plant-specific safety procedures.

Flexible Alarm Logic Configuration

One of the major strengths of the 3500/32 module is its flexible alarm logic capability. Instead of relying on fixed hardware wiring, the relay outputs are controlled through software configuration. This allows engineers to assign relay functions based on the monitoring results from multiple modules across the rack.

For example, a relay may activate only when two independent parameters exceed alarm limits simultaneously. Alternatively, a relay may represent a global system alarm condition, signaling that one or more monitoring channels have entered a danger state.

This level of flexibility supports complex machinery protection strategies while maintaining a centralized monitoring architecture.

Application in Rotating Machinery Protection

Relay modules are essential components in protection systems used in power generation, oil and gas production, petrochemical processing, and other industrial sectors. In these environments, rotating equipment must operate continuously and safely under demanding conditions.

The 3500/32 module ensures that abnormal conditions detected by monitoring modules are quickly communicated to control systems. When vibration levels, shaft displacement, or temperature values exceed configured thresholds, the relay outputs provide the electrical signals required to initiate alarms or protective shutdown procedures.

This immediate response capability helps prevent catastrophic failures and supports predictive maintenance strategies by ensuring early intervention when machinery health begins to degrade.

System Reliability and Industrial Design

The Bently Nevada 3500 platform is known for its robust architecture and high reliability in industrial monitoring applications. The 3500/32 relay module is engineered to operate within this system architecture, ensuring consistent performance and dependable signal handling.

The module integrates directly into the 3500 rack structure, simplifying installation and ensuring compatibility with other monitoring modules. Its design supports continuous operation in industrial control rooms and monitoring cabinets where equipment protection systems must function without interruption.

Typical Technical Characteristics

Role in Integrated Monitoring Solutions

In modern industrial facilities, machinery monitoring systems must work seamlessly with plant control and safety infrastructure. The Bently Nevada 3500/32 relay module provides a reliable connection between the monitoring system and these external systems.

Through its programmable relay outputs, the module ensures that machinery protection events can trigger appropriate plant responses. Whether used to activate alarms, notify operators, or initiate automatic shutdowns, the relay module contributes to the overall reliability and safety of industrial operations.

By integrating monitoring data with protective control actions, the 3500/32 module helps maintain safe operating conditions and supports long-term equipment reliability.
