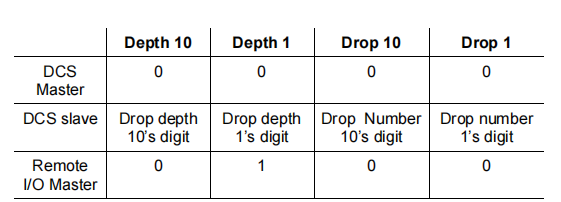

Set the Network Type and Node Address Switches  Before you install the module, you must set the network type, drop number and drop  depth using the switches at the top of the module.  The two switches at the left set the drop depth, the two at the right set the drop  number.  The following table shows how to set the switches for each mode of operation.

For example, to configure the 56AMXN/B as a DCS slave with drop number 17,  drop depth 5, set the switches to 0, 5, 1, and 7 from left to right.  Any other settings are invalid and result in the module going into “Thumbwheel  test” mode. In thumbwheel test mode, the display shows the current switch settings.  It doesn’t go out of thumbwheel test mode until you cycle power.  In thumbwheel test mode, the 56AMXN/B initially displays “Thumb Test Mode”  on the 4-character display, displays the switch settings for 5 seconds, then resumes  displaying “Thumb Test Mode”  For DCS slave operation, if the drop number and drop depth are individually valid  but the combination results in invalid drop numbers (for example, drop number 55,  drop depth 2), the module displays an error message on the 4-character display but  does not enter Thumbwheel test mode.

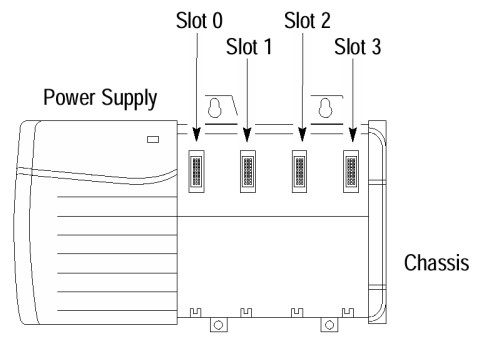

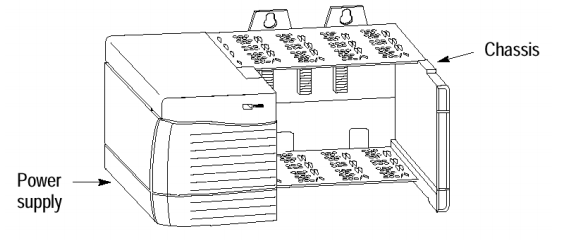

Determine Module Slot Location The figure below shows chassis slot numbering in a 4-slot chassis. Slot 0 is the first  slot and is always the leftmost slot in the rack (the first slot to the right of the power  supply). You can use any size ControlLogix chassis and install the module in any slot.  You can also install multiple 56AMXN/B modules in the same chassis. You can  install as many modules as your power supply can accommodate (i.e., number for  which the power supply is rated).

Installing or Removing the Module While Power Is Applied  Versions of the 56AMXN hardware prior to O-57677-1 do NOT support removal  and insertion under power.  The hardware version can be identified by looking for a sticker with the part number  O-57677-1 or above on the module’s printed circuit (near the serial number – you do  not need to disassemble the 56AMXN to find the sticker). Modules with no stickers  are hardware version O-57677 and do NOT support removal and insertion under  power  For hardware versions O-57677-1 and above, you can install or remove the module  while chassis power is applied if you observe the following precautions.
