YASKAWA A1000 series AC frequency converter

F: | Au:FAN | DA:2026-01-04 | 816 Br: | 🔊 点击朗读正文 ❚❚ ▶ | Share:


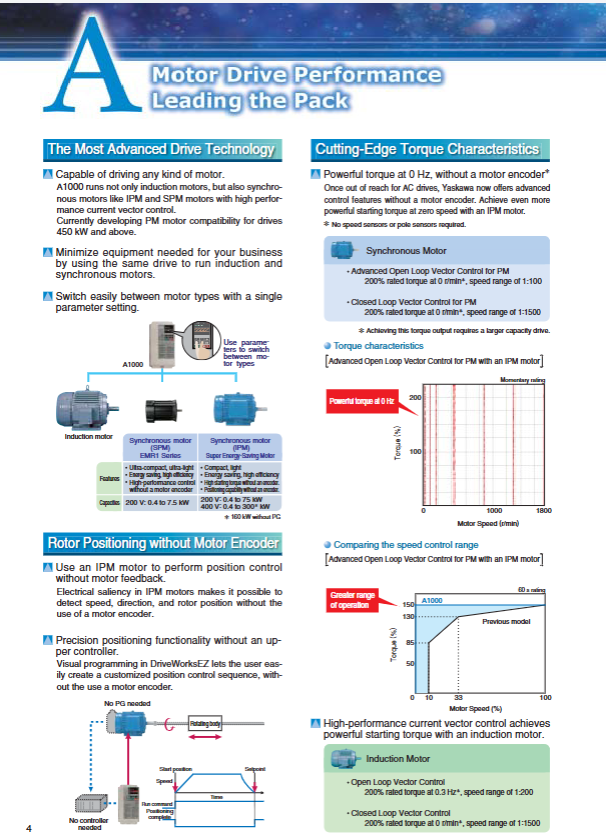

Core advantages of the product

(1) Efficient Energy Saving and Environmental Protection

Quantitative energy-saving effect

Case reference: 100 3.7kW motors are used for HVAC fan systems, operating 365 days a year, with an electricity cost of 0.15 USD/kWh.

Induction motor+ordinary frequency converter: Annual power consumption of 1903100kWh, electricity cost of $285500.

IPM motor+A1000 energy-saving control: Annual power consumption of 1754600kWh, electricity cost of $263200.

Annual electricity savings of $22300, reducing CO2 emissions by 82.4 tons (calculated based on 0.555kg CO2 per 1kWh).

Environmental Design Details

Noise suppression: Swing PWM technology reduces electromagnetic noise and motor operation noise, which is 23.3% lower than previous generation products.

Material compliance: The entire series complies with the RoHS directive, is lead-free and halogen-free, and uses 100% recycled paper and soy ink to print documents.

(2) Safe, reliable, and durable

Security protection system

Functional safety: The Safe Disable function achieves safe shutdown through dual input terminals (H1/H2), complying with EN954-1 Cat.3 and IEC/EN61508 SIL2 standards; EDM (External Device Monitor) function monitors security status in real-time.

Electrical protection: It has comprehensive protection against overcurrent, overvoltage, undervoltage, overload, overheating, grounding faults, etc. When the output current exceeds 200% of the rated overload value, it will immediately shut down.

Environmental adaptation: Provides IP54 dust-proof and drip proof options, supports moisture-proof, dust-proof, oil mist proof, and corrosion-resistant gas design, and is suitable for harsh industrial environments.

Long lifespan and low maintenance

Design lifespan: Key components such as cooling fans, capacitors, relays, IGBTs, etc. have undergone rigorous screening and are designed to have a lifespan of 10 years in an environment of 24 hours, 80% load, and 40 ℃.

Maintenance warning: Built in performance life monitoring function, real-time tracking of cooling fan (LT-1), capacitor (LT-2), surge suppression relay (LT-3), IGBT (LT-4) status, and early output of maintenance signals.

Convenient maintenance: The detachable terminal block supports parameter backup, and there is no need to rewire or set up when replacing the frequency converter; The cooling fan, operator, and other components can be quickly disassembled and replaced.

(3) Convenient operation and flexible configuration

Programming and configuration tools

DriveWorksEZ: a visual programming software that supports drag and drop creation of custom control sequences and detection functions, without the need for complex code writing.

Application Presets: Built in 8 types of application presets for fans, pumps, conveyors, cranes, etc., with one click automatic configuration of core parameters, greatly reducing debugging time.

Operator: Standard LED operator, optional LCD operator (JVOP-180), supports parameter copying and remote operation, equipped with 1m/3m extension cable.

Parameter Management and Migration

Local management: The operator supports parameter copying, and the terminal block has a built-in parameter backup function, ensuring that parameters are not lost after power failure.

Remote management: By using the USB copying unit (JVOP-181) or DriveWizard Plus software, multiple frequency converter parameters can be quickly copied and migrated; Supports RS-422/485 (MEMOBU/Modbus) communication with a maximum baud rate of 115.2kbps.

Flexible installation and layout

Compact design: The 400V 75kW model is 55.4% smaller than the previous generation F7 series, and the 200V 3.7kW synchronous motor is 64% smaller than the induction motor.

Installation method: Supports parallel installation (18.5kW and below), models without heat sinks (upcoming), and external heat sink installation, suitable for different control cabinet space requirements.


Applicable scenarios and selection schemes

(1) Main application areas and adaptation strategies

Application scenario core requirements A1000 adaptation advantages recommended configuration

Crane/winch high starting torque, motor switching, safe and reliable 200% starting torque, Motor 2 Switch function Safe Disable、 Maintenance monitoring overload mode (C6-01=0), closed-loop vector control, braking resistor unit

Energy saving control for fans/pumps, low noise, and stable operation Swing PWM、 Variable frequency jump (to avoid resonance), light load mode (C6-01=1), V/f control, PID control

Smooth operation of conveyor, fast braking, long-life overexcitation deceleration, torque ripple suppression, maintenance warning open-loop vector control, application preset (Conveyor), 24V control power option

Metal processing/machine tool power-off controllable, overvoltage suppression, high-precision KEB function, overvoltage suppression, zero servo control closed-loop vector control, pulse sequence input/output, braking unit

HVAC system energy-saving, communication compatibility, multi motor control energy-saving control, LONWorks communication options, multi-step speed control light load mode, PID control (including sleep function), remote monitoring
