Brand and Product Positioning

HIRSCHMANN, as a brand under belden, focuses on the research and development of industrial grade Ethernet switches. Its products have high reliability, industrial environment adaptability, and flexible configuration as core advantages, covering a full range from entry-level unmanaged to high-end 10G backbone managed, meeting the stable communication needs of industrial automation, infrastructure, special environments, and other scenarios.

Product Series Overview

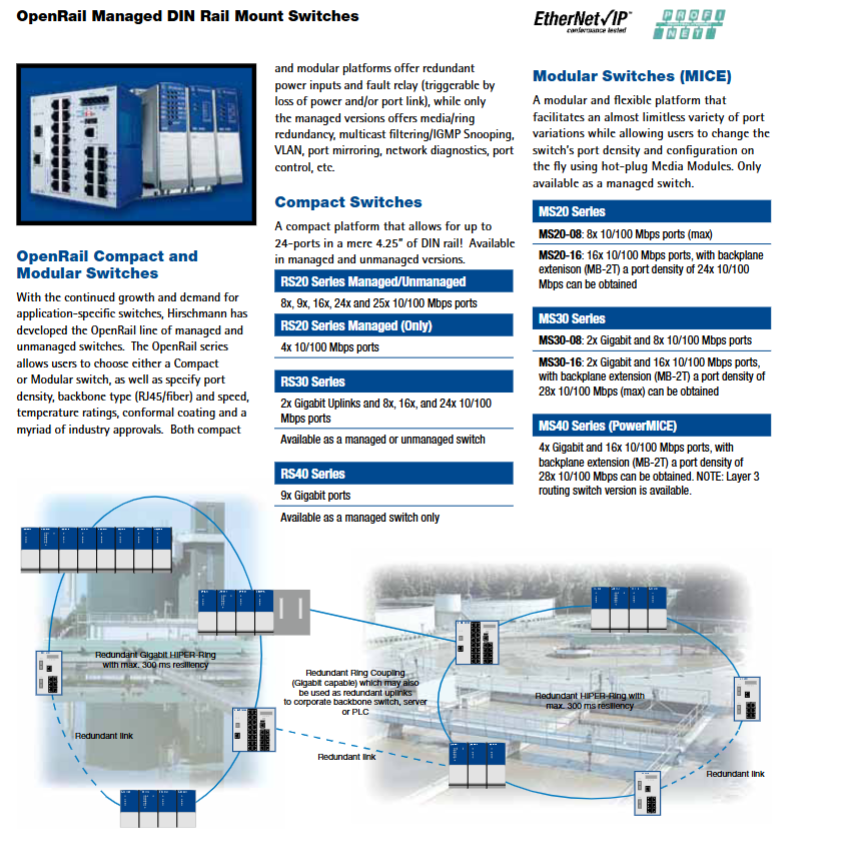

1. OpenRail series

There are two platforms: Compact and Modular.

Support redundant power input, fault relays, ring network redundancy (HIPER Ring), VLAN, port mirroring, etc.

You can customize the number, type (RJ45/fiber), temperature rating, certification, etc. of ports through online configuration tools.

2. RS20/RS30/RS40 series (compact)

RS20: 10/100 Mbps port, supports fiber optics (MM/SM).

RS30: 10/100 Mbps+2 Gigabit uplink ports.

RS40: Full Gigabit port, including combo port (RJ45+SFP).

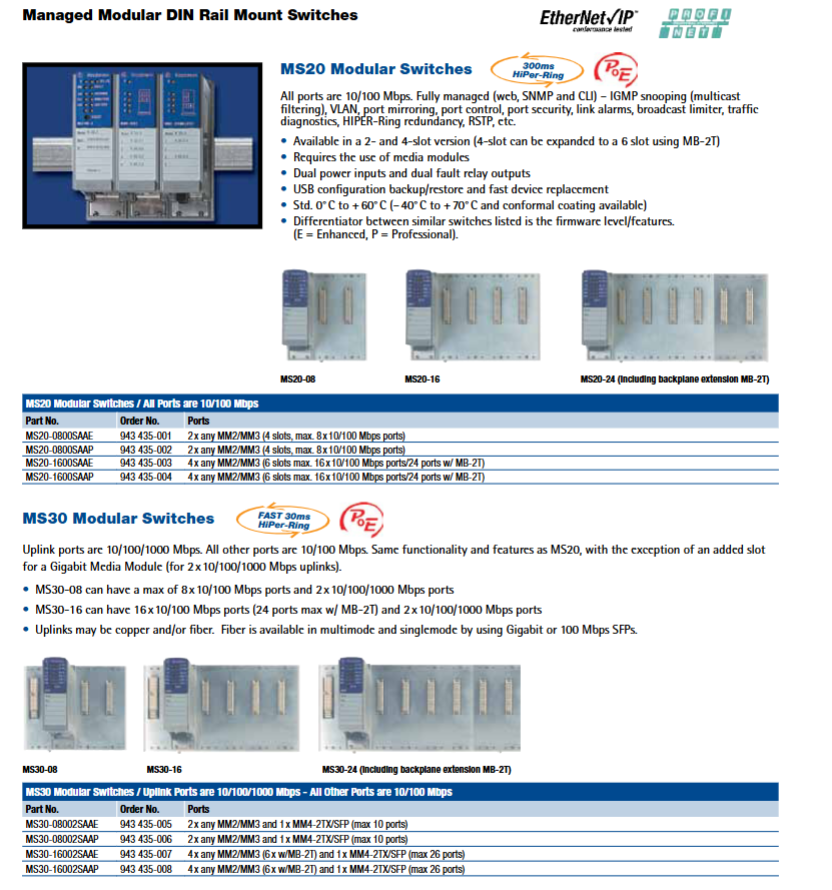

3. MS20/MS30/MS40 series (modular)

Support hot swappable media modules, with flexible configuration of port types and quantities.

PowerMICE (MS40) supports three-layer routing functionality.

4. RSR series (ultra rugged)

The working temperature range is wide (-40 ° C to+85 ° C).

High anti-interference (RFI/EMI), supporting fast ring network recovery (<10ms).

5. SPIDER series (non management entry-level)

Economical, high reliability, supports PoE version.

Suitable for simple, unmanaged scenarios.

6. MACH100/MACH1000/MACH4000 (rack mounted)

MACH100: Workgroup level, supporting modular media modules.

MACH1000: Ultra rugged rack mounted, suitable for extreme environments.

MACH4000: High density gigabit backbone switch, supporting layer 3 routing and 10G uplink.

Core hardware features

Port and speed

Speed coverage: 10/100 Mbps (basic model), Gigabit (mainstream model), 10G (MACH4000, XFP slot).

Port types: RJ45 (copper cable, supporting automatic negotiation/crossover), multimode fiber (MM, SC/ST/MTRJ interface), single-mode fiber (SM, including long-distance Long Haul+/200km models), SFP/SFP+slot (modular expansion).

Port density: Supports up to 48 Gigabit ports and 3 10G ports (MACH4002-48G+3X).

environmental adaptability

Temperature range: Standard 0 ℃ to+60 ℃, Extended -40 ℃ to+70 ℃ (EEC mark), Reinforced -40 ℃ to+85 ℃ (RSR/MACH1000).

Protection design: Some models support normal coating (moisture/dust resistance), metal shell anti electromagnetic interference (EMI/RFI), and anti impact vibration (in accordance with industry standards).

Adaptation to hazardous areas: Some models have passed ATEX 100A Zone2 and cUL1604 Class1 Div2 certification and are suitable for hazardous environments.

Power Supply and Reliability

Redundant power supply: Supports dual power input, with voltage options including 24/36/48VDC, 60/120/250VDC, and 110/230VAC.

Fault protection: Fault relay (triggering conditions: power loss, port link interruption), MTBF generally exceeding 100 years (non management type).

Core software function

Redundancy and high availability

Ring network redundancy: HIPER Ring technology, 100Mbps ring network recovery time ≤ 300ms, 1G ring network ≤ 30ms, supports up to 100 switching unit networks.

Other redundancies: RSTP (802.1w), link aggregation (802.3ad), redundant routing (VRRP/HNRRP, ≤ 500ms).

Network Management and Control

Configuration methods: web interface, SNMP (v2c/v3, supports encryption), CLI command line, USB backup/restore.

Core functions: VLAN (Static/Dynamic GVRP), IGMP Snooping/Queryer (Multicast Filtering), Port Mirroring (Traffic Monitoring), Broadcast/Multicast/Unicast Rate Limitation.

Industrial protocol adaptation: pre configured with PROFINET and EtherNet/IP protocols, seamlessly integrated with PLC/HMI.

security features

Access control: 802.1x authentication, Radius server docking, port security (IP/MAC address binding).

Data security: SSH encrypted communication, SNMP v3 password encryption, ACL access control list.

Certification and Compliance

Industrial standards: IEC61850-3 (substations), IEEE1613 (power communication), EN50121-4 (rail transit).

Safety certifications: UL508, cUL1604, German Lloyd (classification society), ATEX Zone2 (hazardous area).

Environmental compliance: RoHS compatible, some models support low-power design.
