Yokogawa AIP 830 Single Circuit Operation Keyboard

（4） Other core components

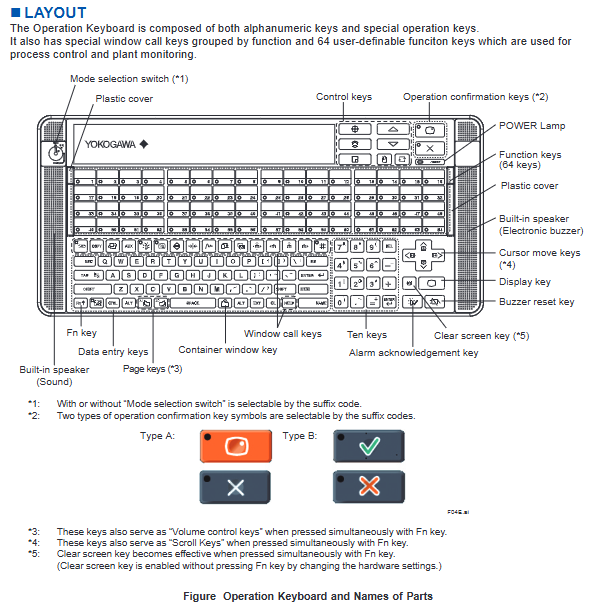

POWER Lamp: Intuitively displays the power status of the keyboard

Plastic protective cover: Provides dust-proof and scratch resistant protection for the core area of the keyboard

Built in dual sound components: including an electronic buzzer (for bumping alarms) and a USB speaker (for sound function output), to meet different types of sound prompt needs

External dimensions and installation specifications

（1） Keyboard body size

Cable length: 2300 ± 100mm, longer cables can flexibly adapt to different placement distances between keyboards and PCs, improving the freedom of installation layout

Key dimension annotation: Key dimensions such as body length and width should refer to the F02E.ai drawing in the document (applicable to AIP830-1  model)

Tolerance standard:

When the reference size is above 0.5mm and equal to or less than 120mm, the nominal tolerance is ± 0.8mm, and the combined nominal tolerance is ± 1.5mm

When the reference size exceeds 120mm, the nominal tolerance follows the JEM 1459 standard to ensure product size consistency and installation compatibility

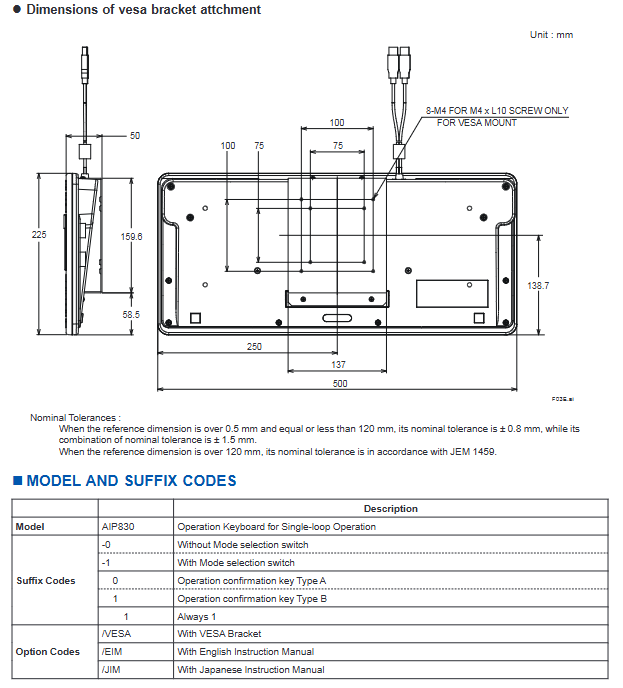

（2） VESA bracket installation dimensions

Products with VESA option codes are equipped with VESA brackets, and their installation dimensions should refer to the F03E.ai drawing in the document. The core parameters are as follows:

Screw specifications: 8-M4, only applicable to M4 × L10 screws. When installing, it is necessary to strictly match the screw specifications to avoid loose installation caused by incompatible screws

Installation hole spacing: Supports two VESA standard installation hole spacings of 100 × 100mm and 75 × 75mm, compatible with most VESA standard installation brackets, wall brackets, etc. on the market

Key installation dimensions (unit: mm): 225, 159.6, 138.7, 58.5, 250, 137, 500 (specific locations need to be confirmed in conjunction with the drawings)

Tolerance standard: Consistent with the dimensional tolerance standard of the keyboard body, ensuring the accuracy of bracket installation

Model and coding rules

The model of AIP830 consists of three parts: basic model, suffix code, and option code. Users can choose a combination according to their actual needs. The specific coding rules are as follows:

Detailed description of coding category and coding value

Basic model AIP830 single circuit operation keyboard (core model identification)

Postfix code-0 without mode selection switch (suitable for simplified operation scenarios without mode switching)

Suffix-1 with mode selection switch (suitable for complex operation scenarios that require multi-mode switching)

The suffix code 0 operation confirmation key is Type A (symbol style follows Type A standard)

The operation confirmation key for suffix code 1 is Type B (symbol style follows Type B standard)

The suffix code 1 has a fixed encoding value, which is included in all models

Option code/VESA with VESA bracket (supports wall mounting, bracket installation, and other fixing methods)

Option code/EIM comes with an English manual (convenient for English environment users to refer to)

Option code/JIM comes with a Japanese manual (convenient for Japanese language users to refer to)

For example, model AIP830-111/VESA/EIM indicates that the keyboard is a version with mode selection switch, operation confirmation key Type B, VESA bracket, and comes with an English manual.

Applicable standards and compliance requirements

The compliance of AIP830 keyboard depends on the connected PC device. Only when the certification mark corresponding to the standard is marked on the connected PC, the keyboard meets the requirements of the standard. The specific applicable standards are as follows:

（1） Safety standards

CSA standard: requires PC labeling with CSA markings

CE Marking (EU CE Certification): PC marking is required for CE marking

EAC Marking (Eurasian Economic Union Certification): PC marking of EAC mark is required

Moroccan Compliance Marking (C م Marking): PC is required to mark this marking

（2） EMC (Electromagnetic Compatibility) Compliance Standards

CE Marking (EU CE Certification): PC marking is required, and it should be noted that EN 61000-3-2 and EN 61000-3-3 standards are not applicable to AIP830

RCM (Australia and New Zealand certification): requires PC labeling with RCM mark

KC Marking (Korean certification): PC marking of KC mark is required

EAC Marking (Eurasian Economic Union Certification): PC marking of EAC mark is required

Moroccan Compliance Marking (C م Marking): PC is required to mark this marking

Note: For detailed information on the above standards, please refer to the "System Overview" document (document numbers GS 33K01A10-50E, GS 33K01A20-50E).
