Foxboro Evo ™ Compact 200 Series I/O subsystem of the system

Foxboro Evo ™  Compact 200 Series I/O subsystem of the system

System core positioning and compatibility

Product ownership: Foxboro Evo ™  Compact 200 Series I/O subsystem for process automation systems, launched by Schneider Electric

Core function: Provides analog measurement, digital sensing, analog/discrete control capabilities, supporting continuous, batch, and discrete control solutions

Compatibility: Fully compatible with existing I/A Series ®  The system's 200 Series I/O devices and traditional 100 Series I/O devices support upgrading and replacing existing standard 200 Series subsystems

Core value: Distributed deployment reduces on-site wiring, trunking, and conduit installation costs, and adapts to the flexible deployment needs of industrial scenarios

Core Components and Classification

Component type, key product, core function, key parameters

Control processor FCP280 200/100 Series FBMs control interface, supporting 4 HDLC buses and up to 128 FBMs

FCP270 is compatible with dual baud rates (2Mbps/268Kbps) and requires FBI100 to adapt to 100 Series. It supports 32 200 Series FBMs without FEM100

ZCP270 is compatible with 100 Series racks and supports up to 128 FBMs per module through FCMs communication

Fieldbus Modules (FBMs) Analog Input Class FBM201 (0-20mA), FBM214b (HART) ®  Input channel isolation/differential isolation, 8-32 channels

Analog output class FBM215 (HART) ®  Output), FBM237 (redundant 0-20mA) and other fail safe configurations (hold/fallback), 4-8 channels

Discrete I/O class FBM217 (32 channel input), FBM219 (24DI+8DO) and other group isolation/channel isolation, 8-32 channels

Hybrid I/O classes such as FBM227 (analog+discrete) and FBM247 (current/voltage/pulse) support HART ®、 Multi signal type adaptation

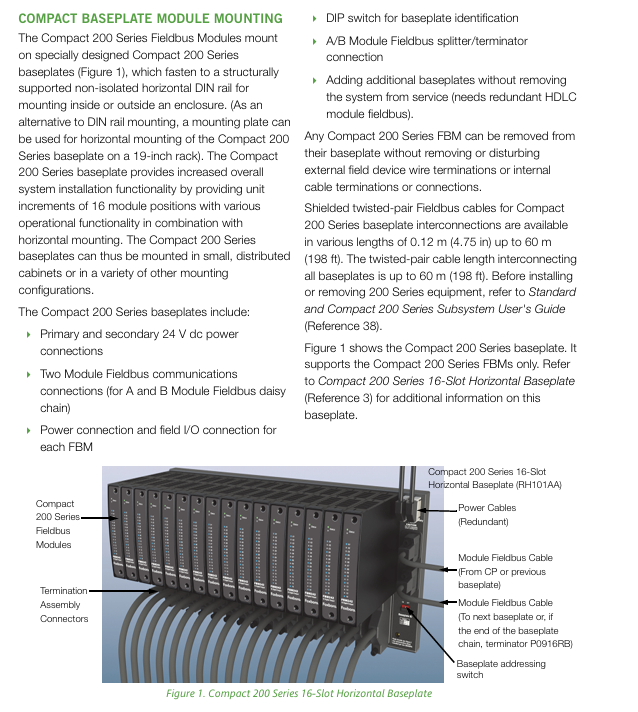

Auxiliary component base plate 16 slot horizontal base plate (RH101AA) supports 16 FBMs, DIN rail/19 inch rack installation

Communication module FCM100E/Et (fiber to bus conversion), FCM2F (fiber extension) FCM2F supports up to 10km single-mode fiber

Isolator FBI200 extends bus distance to 305m, isolation filtering

Shell G/K series G13/G14 (system/terminal shell), K13/K14 IP43/54 protection, suitable for ordinary/harsh environments

Key technical characteristics and advantages

performance

The analog input adopts SigmaDelta fast integration ADC, with an update speed of up to 25ms, suitable for high-speed regulation and control

Built in configurable moving average filter effectively removes electromagnetic noise

System communication speed: 100Mbps Ethernet (control network), 2Mbps/268Kbps HDLC module bus

Reliability Design

Integrating logic functions into a single ASIC chip reduces the number, volume, heat dissipation, and cost of components

Single module availability 0.999974 (redundant power supply+2-hour MTTR), redundant module availability 0.9999964

Optional redundancy: power supply, control network FCMs、 Control processors, module bus cables, and some FBMs

Deployment flexibility

Compact size: 1 16 slot compact base plate+16 FBMs space<2 standard 200 Series base plates+16 standard FBMs

Installation method: Horizontal DIN rail installation or 19 inch rack installation, supporting distributed small cabinet deployment

Cable length: shielded twisted pair 0.12-60m, fiber optic extension up to 20km (2 pairs of FCM2F10)

environmental adaptability

Pollution protection: Class G3 (ISA S71.04), suitable for harsh industrial pollution environments

Working temperature: FBMs up to 60 ℃ (140 ° F)

Safety certifications: UL (US Canada), ATEX (Explosion proof), CE (Low Voltage/EMC/ATEX Directive), RoHS compliance

System configuration and upgrade requirements

configuration scheme

Pure compact chassis configuration: only using Compact 200 Series chassis

Mixed configuration: Compact mixed with standard 200 Series baseboard (supports compact in front/back)

Maximum scale: Up to 32 FBMs per single bottom chain, 4 bottom chains supported per FCP280

Upgrade requirements

Space requirement: The installation location should have sufficient horizontal DIN rails

Power Requirements: Supports FPS480-24/FPS400-24/FPS220-24/FPS120-24 power supplies

Cooling requirement: 1 fan tray is required for every 2 adjacent compact baseboards (1 for each baseboard when deployed separately)

Cable replacement: The terminal cable of the standard 200 Series FBMs needs to be replaced with a Compact series adapter cable

Electrical and safety regulations

Grounding requirements: comply with IEC 61000-5-1/5-2 standard (or regional equivalent standard)

Power configuration: 24V DC power supply, supports single/redundant power distribution, triggers icon color change, system alarm, and print notification in case of power failure

Isolation level: FBMs support channel isolation, differential isolation, and group isolation, with some terminal components (TA) providing additional channel isolation

Wiring characteristics: FBMs are hot swappable and do not affect external field device wiring and internal cable connections

Key questions and answers

Question 1: What are the core advantages of the Compact 200 Series I/O subsystem? What scenarios are applicable?

Answer: The core advantages are concentrated in three points: ① High reliability and availability, achieved through ASIC integrated design with high availability of single module 0.999974 and redundant module 0.9999964, suitable for continuous operation requirements; ② Flexible deployment and compact design, with a volume only half of the standard 200 Series, supporting distributed DIN rail/rack installation, reducing wiring costs; ③ Strong environmental adaptability and compatibility, Class G3 pollution protection, 60 ℃ high temperature tolerance, and compatibility with existing 100/200 Series I/O devices, supporting seamless system upgrades. Applicable scenarios include: continuous/batch/discrete control tasks in industrial sites, harsh polluted environments (such as chemical and metallurgical industries), large factories that require remote distributed deployment, and existing I/A Series ®  System upgrade project.
