Delta AH500 PLC system operation and maintenance

Complete Guide to Installation, Debugging, and Troubleshooting of Delta AH500 Series PLC System

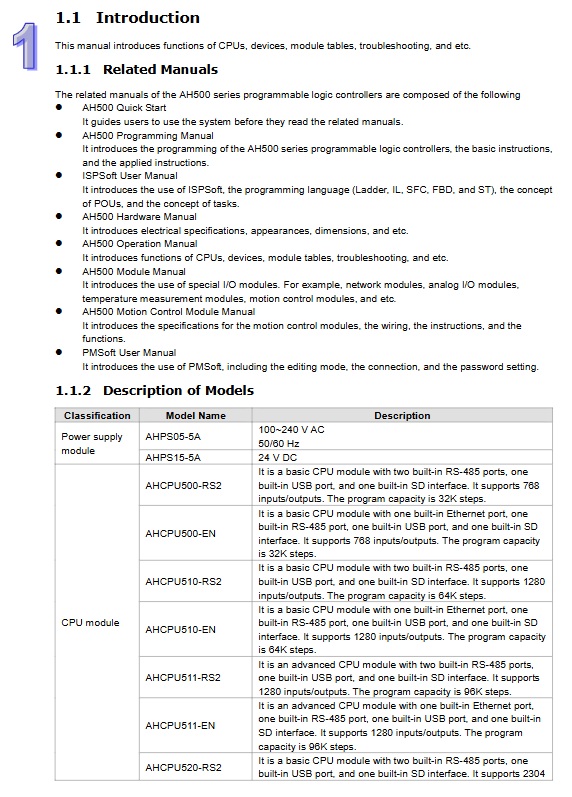

The Delta AH500 series is a medium to large programmable logic controller that is widely used in the fields of factory automation, process control, and motion control due to its modular design, powerful expansion capabilities (up to 68 I/O modules, 8 backboards), and rich communication interfaces (USB, Ethernet, RS-485/422/232). However, common problems encountered by on-site engineers during installation, debugging, and maintenance include: incorrect backplane expansion configuration, CPU module ERROR LED exception, program download failure, network communication timeout, etc. This article is based on the technical content of the AH500 operation manual, systematically summarizing the entire process knowledge from hardware installation to software configuration, from network setup to fault code diagnosis, to help engineers quickly locate and restore the system.

AH500 series CPU module selection and performance parameters

The AH500 offers two main types: basic (AHCPU 500/510/520/530) and advanced (AHCPU 511/521/531), with the main differences being program capacity, instruction execution speed, and I/O points.

Model, Program Capacity, Local I/O Points, Instruction Execution Speed, Built in Communication Port

AHCPU500-RS2/EN 32K steps 768 3K steps/ms RS2: 2×RS-485； EN: 1×Ethernet+1×RS-485

AHCP510-RS2/EN 64K steps 1280 3K steps/ms Same as above

AHCP511-RS2/EN 96K steps 1280 12K steps/ms Advanced version, faster speed

AHCPU520-RS2/EN 128K steps 2304 3K steps/ms

AHCP521-EN 192K steps 2304 12K steps/ms Advanced type

AHCPU530-RS2/EN 256K steps 4352 3K steps/ms

AHCP531-EN 384K steps 4352 12K steps/ms Advanced Type

Selection suggestion: For situations that require a large amount of floating-point operations or complex network communication, priority should be given to the advanced type (execution speed of 12K steps/ms). If the on-site I/O points exceed 2048, AHCP5-20 or higher models must be used.

Hardware Installation and Backplane Expansion Specification

3.1 Backboard Types and Expansion Limitations

The AH500 system consists of a main backplane and up to 7 expansion backplanes. Backboard type:

Main Backboard: 4/6/8/12 slots (AHBP04M1-5A/06M1-5A/08M1-5A/12M1-5A)

Expansion Backboard: 6/8 slots (AHBP06E1-5A/08E1-5A)

Maximum Expansion:

Up to 68 I/O modules (12 main slots+7 x 8 expansion slots)

AHCP500 can connect up to one backplane (only the main backplane)

AHCP510 can have up to 2 backboards (main+1 expansion)

AHCP5-20 up to 4 backboards (main+3 expansion)

AHCP530Up to 8 backboards (main+7 expansion)

Expansion cable: Available in four lengths: 0.6m, 1m, 1.5m, and 3m (AHACAB06/10/15/30-5A).

3.2 Installation steps

Backboard installation: Fix the backboard inside the control cabinet using M5 screws. It can also be installed on a 35mm DIN rail, and the installation clip needs to be pressed into the positioning hole.

Module installation: Insert the bottom protrusion of the module into the corresponding hole on the back panel, push forward until the buckle "clicks" and locks, and then tighten the upper and lower fixing screws.

Power module: Each backplane must be equipped with a power module (AHPS05-5A, 100-240V AC; or AHPS15-5A, 24V DC). The power capacity of the main backplane needs to calculate the total 5V/24V consumption of all modules, which must not exceed the nominal value.

Important: The installation location of the CPU module depends on the type of power module. If using a standard power supply (TSX PSY analogy, here AHPS05-5A), the CPU should be installed in slot 00; If using a double width power supply, install it in slot 01.

Software configuration: ISPSoft and HWCONFIG

The Delta AH500 uses ISPSoft programming software (supporting five languages: LD, FBD, ST, IL, and SFC) and comes with a built-in HWCONFIG hardware configuration tool.

4.1 Creating Projects and Hardware Configuration

Open ISPSoft, create a new project, and select the corresponding CPU model (such as AHCP530-EN).

Double click "HWCONFIG" to enter the hardware configuration interface. The system automatically generates a main backplane and pre installs power and CPU modules.

Drag the I/O module from the product library on the right to the empty slot on the backplane. The system automatically assigns input/output device addresses (X/Y).

Double click the CPU module to set basic parameters:

CPU name: for easy network identification.

Watchdog timeout: default 200ms. If the program scanning cycle exceeds this value, an error will be triggered.

Constant scanning cycle: can force a fixed scanning time (1-32000ms).

Lock device range: set the M, D, T, C and other areas for power-off holding.

Remote RUN/STOP: It can map an X point to control the running status of the CPU.

Configure COM port: Supports RS-232/485/422, can set baud rate, data bits, stop bits, parity bits, and station address (0~247).

Configure Ethernet port (EN type CPU): Set IP address, subnet mask, gateway, and enable email alerts, NTP time synchronization, Socket communication, and web monitoring functions.

4.2 Download and Online Diagnosis
