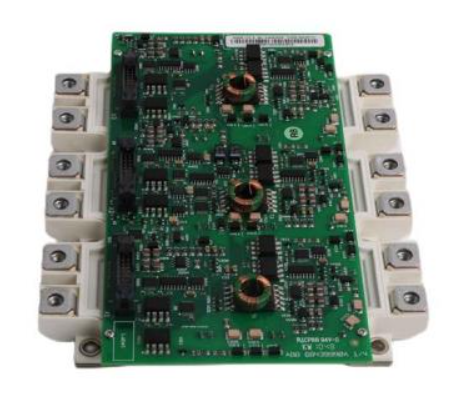

Product Overview

FS450R17KE3/AGDR-72C S 68569427 is a high-performance IGBT module kit launched by ABB, integrating advanced IGBT chips from Infineon and ABB's independently developed driver board, designed specifically for medium and high voltage power electronics scenarios. This kit achieves high reliability and efficiency in power conversion through optimized electrical structure and heat dissipation design, and is suitable for fields such as industrial transmission, new energy grid connection, and rail transit.

Core components:

IGBT module (FS450R17KE3): using Infineon E3 technology platform, supporting 1700 V high voltage and 450 A rated current, suitable for high power density scenarios.

Drive board (AGDR-72C): Integrated with overcurrent, overheat protection, and gate drive circuits, supports high-speed switch control, and is compatible with digital signal input (such as PWM signals).

Product code: 68569427, including modules, driver boards, installation accessories, and technical documentation.

Technical Parameter

igbt module

Rated voltage (V): 1700 V (Vces)

Rated current (A, RMS): 450 A (Tc=80 ° C, sine wave)

Pulse current (A, 10ms): 900 A

Saturation voltage drop (Vce (sat)): 2.1 V (typical value, Ic=450 A, Tj=25 ° C)

Switching frequency (kHz): up to 20 kHz (depending on heat dissipation conditions)

Drive board (AGDR-72C)

Supply voltage:+15 V/-7 V DC (isolated power supply)

Input signal type: Optocoupler isolated input (compatible with 3.3 V/5 V TTL signal)

Protection functions: overcurrent protection (DESAT detection), overheat protection (temperature sensor input), gate voltage monitoring

mechanical properties

Module size (mm): 160 × 65 × 20 (length × width × height)

Weight: Approximately 2.8 kg

Cooling method: Bottom plate water cooling/forced air cooling (recommended thermal resistance Rth (j-c) ≤ 0.05 K/W)

Application scenarios

1. Industrial transmission system

Medium voltage frequency converter: suitable for ABB ACS580MV and other medium voltage frequency conversion equipment, driving 200-400 kW motors, supporting vector control (DTC) and direct torque control, used for energy-saving speed regulation of fan and pump loads.

Rolling mill/hoist: In the steel industry, it supports high dynamic torque output to meet the fast start stop and four quadrant operation requirements of the rolling mill main drive.

2. In the field of new energy

Photovoltaic inverter: In a 1500 V photovoltaic system, as the core power module of the grid connected inverter, it supports maximum power point tracking (MPPT) and low harmonic output (THD<3%).

Energy Storage Converter (PCS): Used for bidirectional power conversion in grid level energy storage systems, supporting battery charging and discharging control, and responding to grid frequency regulation requirements.

3. Rail Transit

High speed rail auxiliary inverter: provides stable power supply for auxiliary systems such as train air conditioning and lighting, adapts to wide voltage input (1000-1500 V DC) and anti vibration design.

Electric vehicle charging: As a DC/DC conversion module in supercharging stations (above 300 kW), it supports fast charging on high-voltage platforms (800 V DC).
