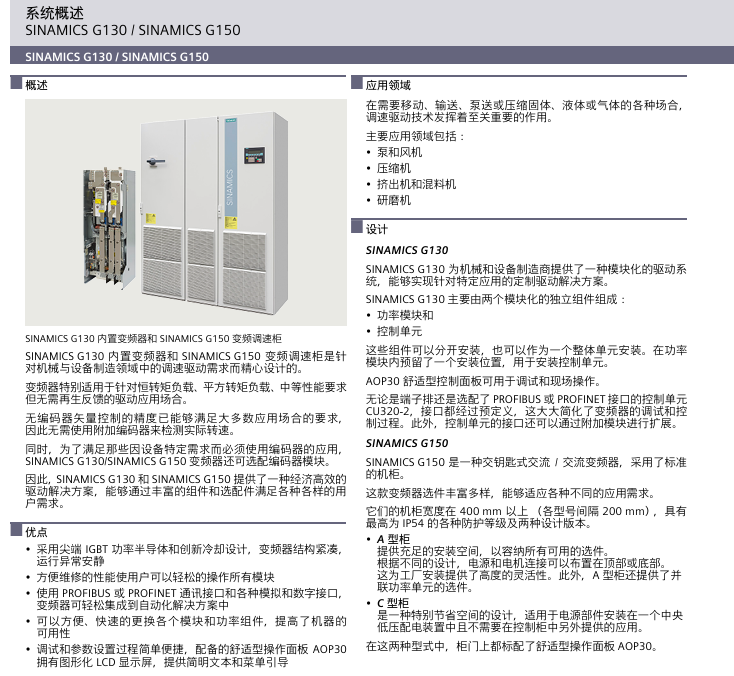

System Overview: SINAMICS Inverter Series and Digitization

SINAMICS frequency converter series positioning

Integration: Belonging to Siemens' "Fully Integrated Automation (TIA)", compatible with SIMATIC/SIMOTION/SUNMERIK control systems

Communication interface: Supports PROFINET, PROFIBUS, EtherNet/IP, Modbus TCP, etc

Application fields:

Application Type: Typical Scenarios Suitable for Frequency Converter Series

Simple pump/fan process industrial conveying and ventilation system V20/G120C

Medium performance driven compressor, extruder, conveyor belt G130/G150/S120

High dynamic servo machine tool, packaging machine, robot S92/S120

Digital driven solution

Full lifecycle coverage:

Design phase: Generate driver digital twins, support PLC virtual debugging, shorten time to market

Implementation phase: Drive connection to cloud/edge platforms, real-time monitoring of current, torque, and speed

Optimization stage: Analyze data through algorithms, predict maintenance requirements, and reduce downtime

Core advantages:

Machine manufacturers: Improve equipment availability and expand service models (such as warranty contracts)

Machine operator: Improve productivity, enhance production flexibility, and explore energy-saving potential

Key tool: TIA Selection Tool

Core functions: Quick project configuration, compatibility with TIA Botu, intelligent selection assistant, case database

Product Highlights: Core Features of Safety and Energy Efficiency

Safety Integrated

Compliance standards: Complies with EN ISO 13849-1 PL d/3 category IEC 61508 SIL 2， Partial functionality up to SIL 3/PL e

Functional classification:

The functional level includes the activation method for the function

Basic functions (standard) STO (safety torque off), SBC (safety brake control), SS1 (safety stop 1) terminal/ProfiSafe

Extended functions (license) SS1E, SS2, SOS, SLS (safety speed limit), SDI (safety direction) require F01/K01 license

Advanced features (license) SLP (secure limit), SP (secure position transfer), SCA (secure cam) with extended function license

G130/G150 adaptation: optional TM54F terminal module and safety brake adapter (SBA 230V AC) are required

Energy efficiency characteristics (compliant with IEC 61800-9-2)

Definition of Energy Efficiency Level:

CDM (Complete Driver Module): IE0 (+25% loss), IE1 (baseline), IE2 (-25% loss)

PDS (Electric Drive System): IES0 (+20% loss), IES1 (baseline), IES2 (-20% loss)

Energy saving measures:

Variable speed operation: Pump/fan application can save energy up to 60% -70%

Braking energy feedback: energy-saving for lifting applications up to 60%

Paired with high-efficiency motors: SIMOTICS motors can increase energy efficiency by up to 10%

SINAMICS G130 built-in frequency converter (75kW-800kW)

Basic Parameters

Power supply voltage, power range, rated output current range, protection level

3AC 380-480V 110kW-560kW 210A-985A IP00/IP20

3AC 500-600V 110kW-560kW 175A-810A IP00/IP20

3AC 660-690V 75kW-800kW 85A-810A IP00/IP20

Core components and technical data

Power module (6SL3310 series):

Including 6-pulse rectifier, IGBT inverter, and pre charging circuit

Cooling method: forced air cooling (AF), coated circuit board anti-corrosion

Control unit (CU320-2):

Communication interface: PROFIBUS (CU320-2 DP)/PROFINET (CU320-2 PN)

Expansion interface: Supports DRIVE CLiQ, can be connected to TM31 terminal module and SMC30 encoder module

Auxiliary components:

Component Type Model Example Function

The incoming filter 6SL3000-0BE32-5AA0 reduces EMC interference and meets the requirements of Class C2 environment

Braking module 6SL3300-1AE31-3AA0 25kW braking power, equipped with dynamic resistor

Outlet reactor 6SL3000-2BE32-1AA0 reduces motor voltage stress and supports 300m cable

Features

Control functions: vector control without encoder, V/f control, PID process controller (liquid level/flow control)

Protection functions: motor I ² t overheating protection, ground fault monitoring, electronic short circuit protection

Special features: Kinetic Energy Buffer (KIP), Capture Restart (supported by VSM10 module), Drive Control Chart (DCC)

SINAMICS G150 Variable Frequency Speed Control Cabinet (75kW-2700kW)

Basic parameters and cabinet types

Power and Voltage:

Power supply voltage, single cabinet power, parallel cabinet power

3AC 380-480V 110kW-560kW 630kW-900kW

3AC 500-600V 110kW-560kW 630kW-1000kW

3AC 660-690V 75kW-800kW 1000kW-2700kW

Cabinet type:

A-type cabinet: compatible with all options (main switch, filter, etc.), supports parallel power units

C-type cabinet: no incoming components, compatible with central low-voltage distribution unit (MCC)

Core Options (Key Categories)

Option Category, Option Code, Function Description, Compatible Cabinet

Electrical Option L13 Main Contactor (≤ 800A) Type A

L23 incoming line reactor (uk=2%,>500kW standard) type A/C

Safety Option K01 1 1 Axis Safety License Type A

K88 Safety Brake Adapter (230V AC) Type A

Protection option M54 has been upgraded to IP54 Type A/C protection level

Document Options D91 English/Chinese Language Pack Type A/C

Operation and maintenance

Standard AOP30 panel: 240 × 64 pixel green backlit LCD, supports 6 languages (including Chinese), two-level security lock (keyboard lock+password)

Maintenance features: modular components are easy to replace, dust plugs (6SL3066-4CA00-0AA0) protect DRIVE CLiQ ports, pre installed cables reduce wiring time

Compliance and supporting products

Core Compliance Standards

European directives: Machinery Directive 2006/42/EC, Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU

Certification: cULus (North America) CE、RCM、RoHS II、UKCA

matching products

Motor: SIMOTICS series (low-voltage motor, reduction motor, explosion-proof motor, compatible with SINAMICS)

Industrial switch: SIRIUS series (compliant with IEC 60947)

Communication: SIMATIC NET (Industrial Ethernet, PROFINET Switch)

Distribution: SENTRON (low voltage distribution), SIVACON (switchgear)

Key tips for selection and ordering

Key points for G130 selection

Power matching: Select the power module based on the rated power of the motor and the power supply voltage (e.g. 6SL3310-1GE32-1AA3 for 380V 110kW)

Component matching: The incoming reactor needs to be selected based on the RSC value (relative short-circuit capacity), and RSC>corresponding threshold must be configured (such as RSC ≤ 43 for<200kW)

Key points for G150 selection

Cabinet selection: For existing MCC, choose C-type cabinet, and for expansion options, choose A-type cabinet

Parallel cabinet: For power>800kW (690V), a parallel cabinet should be selected (such as 6SL3710-2GH42-7EA3 for 2700kW)

Option combination: Emergency stop options (L45/L57) need to be paired with power disconnect components (L13/L26)
