Detailed installation process explanation

1. Installation of core prerequisites

The control unit (CU240E) and power module need to work together and cannot operate separately; If installed incorrectly, it may cause the frequency converter to start unexpectedly, so the installation must be completed by certified personnel who have received training in the installation of such systems.

The default control and monitoring signal source for the control unit is the wiring terminal, which can be modified during debugging through parameters P0700 (command signal source) and P1000 (set value signal source).

2. Equipment structure and status indication

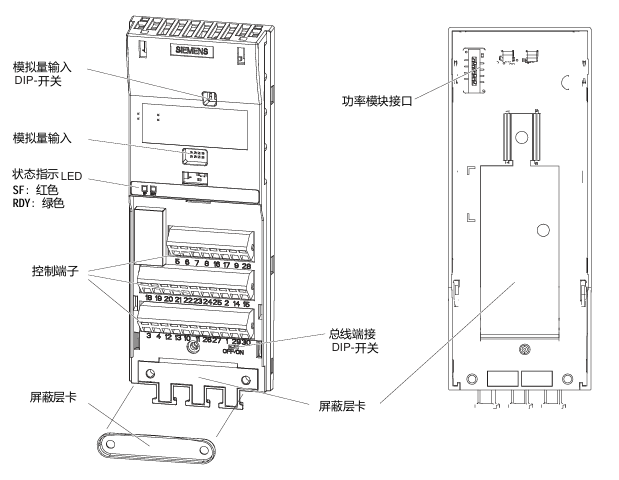

(1) Key Structure

Status indicator: includes a red SF (system fault) indicator light and a green RDY (ready) indicator light.

Core interfaces: analog input interface, power module interface, control terminal, bus termination switch, shielding layer card, option interface (supporting BOP basic operation panel and other options).

(2) Definition of Core Terminals in Wiring Diagram

Terminal Number Function Description Terminal Number Function Description

1 +10V 15 PTC-

2 OV 16 DI4

3 AIO 17 DI5

4 AI0- 18 NC

5 DIO 19 NO（DO0）

6 DI1 20-23 COM, NCC, NO, COM (DO1 related)

7 DI2 24 NO（DO2）

8 DI3 25 COMJ

9 U24V 26 AO1+

10 AI1+ 27 AO1-

11 AI1- 28-29 RS485 -A、UOV

12 AO0+ 30 RS485 -B

13 AO0- - -

14 PTC+ - -

3. Technical parameters of wiring terminals

Design type: Cage spring clamping design, compatible with cable specifications of 0.2~1.5 mm ² (24~14 AWG).

I/O interface configuration: 6 digital inputs (DI), 3 digital outputs (DO), 2 analog inputs (AI), 2 analog outputs (AO), and 1 PTC interface.

Cable requirements: The maximum length of the control cable should not exceed 10 meters (32.8 feet); Unshielded cables can work, but it is recommended to use shielded cables to meet the EMC (electromagnetic compatibility) requirements of CE standards.

4. Bus connection (USS protocol)

Connection method: RS485-UPS bus connection is made through terminals 29 (RS485-A) and 30 (RS485-B).

Transmission rate: The maximum baud rate is 115200 baud.

Terminal switch: The bus terminal switch is located below terminals 29 and 30 and needs to be set according to the bus topology requirements.

5. Installation and disassembly operations

Installation: The control unit is fixed on the power module by card mounting, and the installation and operation of all G120 control units and G120 power modules are completely consistent, without distinguishing models.

Disassembly: Press the release button on the top of the power module to remove the control unit from the power module.

Pre power on inspection (14 mandatory items)

Before powering on, the following checks need to be completed one by one to ensure that the system has no safety hazards and can be started normally:

Check the serial number, check the core requirements of the project

1. The environmental conditions meet the technical requirements of the frequency converter/motor (such as temperature, humidity, dust prevention, etc.)

2. Installation firmness: The frequency converter and motor are installed firmly without looseness

3. The installation and cooling installation methods are correct, and there is sufficient cooling air supply around the equipment

4. There are no safety issues with the readiness status of the motor and application equipment, and the motor can rotate freely (without jamming or obstruction)

The grounding and protection measures of the frequency converter are good, and there are no hidden dangers of poor grounding

6. Matching of power supply voltage: The input power supply voltage meets the rated input voltage requirements of the frequency converter

7 Fuse configuration: The fuse model for the input power supply is selected correctly and installed in place

8. The motor wiring and steering motor wiring are correct, and the steering direction meets expectations when starting

9. The wiring of the motor and power supply is good, and the tightening torque should be tightened according to the technical requirements

10 motor phase sequence: The motor phase sequence is not reversed (incorrect phase sequence may cause serious damage to connected equipment)

11. Cable routing: Separate the motor power cable from other control cables to avoid interference

12. The control signal wiring is correct and meets the corresponding technical requirements

13. There are no tools or foreign objects around the environmental cleaning equipment that may cause damage to the system operation

14. Unique power supply: The frequency converter is the only power supply device for the motor (to avoid multiple power supply conflicts)

Debugging the entire process (taking STARTER software as an example)

1. Debugging core prerequisites

The frequency converter (power module+control unit) cannot be directly applied after arrival and must be debugged before being put into use.

Debugging method: ① Download a set of valid parameters through BOP or STARTER; ② Gradually complete debugging through BOP or STARTER (this guide focuses on the STARTER software debugging method, refer to the control unit operation guide for other methods).
