XP POWER HDA1500 Series 1.5kW High Power AC-DC Power Supply

XP POWER HDA1500 Series 1.5kW High Power AC-DC Power Supply

The HDA1500 series is a high-performance, scalable AC-DC power supply launched by XP Power, which improves the output power of 1.5kW, high efficiency, and high power density in industrial technology applications. This series adopts a fan cooling design and has been approved by the ITE safety agency, making it an ideal choice for a wide range of applications such as testing and measurement, factory automation, and process control.

Core Features and Advantages

The HDA1500 series power supply provides a range of advanced features, which have a strong comparison among similar products in terms of configuration:

Minimum output: Supports programming of output voltage and output current, with a range of 0-105%.

High efficiency: The highest efficiency reaches 93%.

Input voltage: Supports single-phase input from 90 to 264VAC.

Digital Communication: Built in multiple digital communication protocols, including PMBus, RS485, MODBUS, and Ethernet.

Scalability: Equipped with source current sharing and integrated ORing hierarchy, supporting parallel operation to achieve higher power output.

Signal and Control: Provides remote on/off control, remote sensing function, and 5VDC/1A output (available when the main power is activated).

Protection function: Built in overvoltage, overload, and over temperature protection.

Graphic User Interface (GUI): Simplifies user operations and configuration.

List of Models and Rated Values

The HDA1500 series offers multiple models, covering a wide range of output voltages from 12VDC to 400VDC, with a rated output power of 1.5kW for all models

Model, output voltage V1, minimum output current, maximum output current, efficiency, output power

HDA1500PS12,12.0VDC,0.0A,125.0A, 89%, 1.5 kW

HDA1500PS24,24.0VDC,0.0A,62.5A, 92%, 1.5 kW

HDA1500PS48,48.0VDC,0.0A,31.3A, 92%, 1.5 kW

HDA1500PS57,57.0VDC,0.0A,26.3A, 93%, 1.5 kW

HDA1500PS120,120.0VDC,0.0A,12.5A, 92%, 1.5 kW

HDA1500PS400,400.0VDC,0.0A,3.75A, 92%, 1.5 kW

Key points of technical specifications

1. Features, gentle, top, unit

Input voltage, 90264, vacuum

Input frequency, 47,63 Hz

Power factor, -, 0.99/0.95 (115/230VAC full load)

Protection, F20A/250V internal fuse

2. Characteristics, typical values/ranges, units, notes

Output voltage programming, 0-105%,%, percentage of rated output

Output current programming, 0-105%,%, percentage of rated output

Maximum load, no requirements, --

Output completed, 5VDC @ 1.0A, -, present when AC is applied

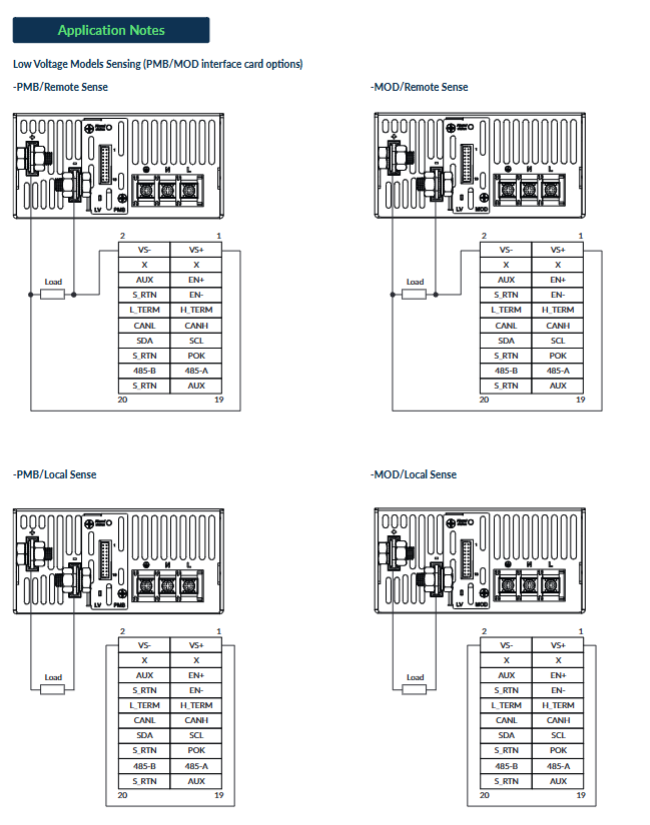

Remote sensing, compensating for a maximum voltage drop of 0.5VDC

Protection, overvoltage, overheating (automatic recovery), overload (constant current @ 105% rated power), short circuit (automatic recovery)

Environmental and Mechanical Information

Environmental specifications

Working temperature: -25 ° C to+60 ° C

At+50C full load operation, a linear derating from+50 ° C to+60 ° C is required to reach 60% load 1919.

Storage temperature: -40 ° C to+85C ° C

Equipped with an internal fan, the cooling speed increases with the load and internal temperature.

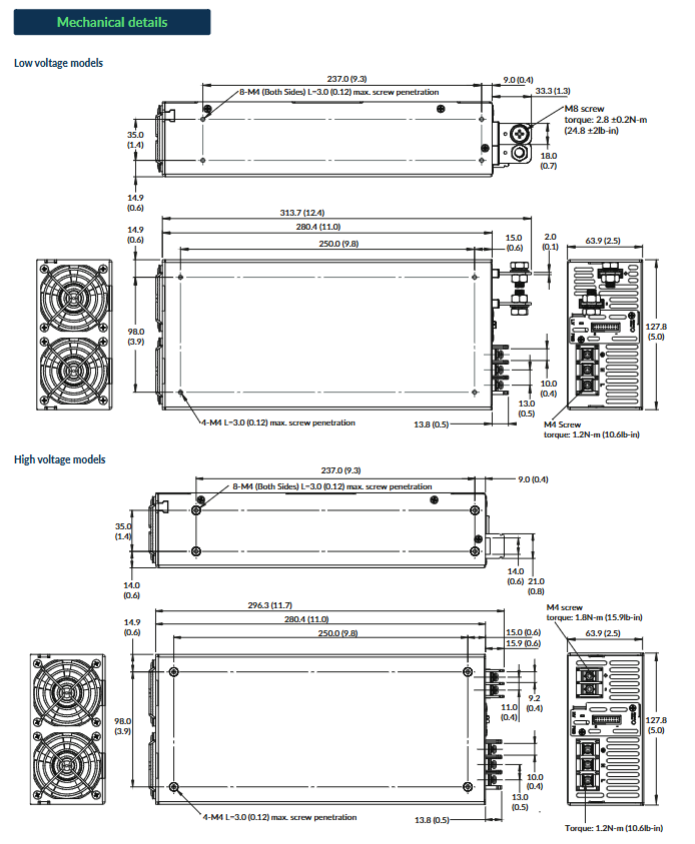

Mechanical dimensions

Size: 313.85 × 63.5 × 127mm (12.36 × 2.50 × 5.0)

Weight: Approximately 2.6 kilograms (5.7 pounds)

Safety and EMC standards

The HDA1500 series has been recognized by the ITE security agency and complies with EMC standards:

Safety Certification

CB：IEC62368-1。

UL: UL62368-1 (applicable to audio and video, information and communication technology equipment).

EN：EN62368-1。

EMC emission standards

Türkiye/Radiation: EN55032 Class A.

Harmonic current: EN61000-3-2 Class A.

Application field

With its high automation, high power, density, and reliability, the HDA1500 series is suitable for a variety of critical industrial applications:

Testing and Measurement

Factory Automation

process control

robotics

Semiconductor Manufacturing Technology

Laser equipment

LED heating
