Honeywell 7800 Troubleshooting Guide

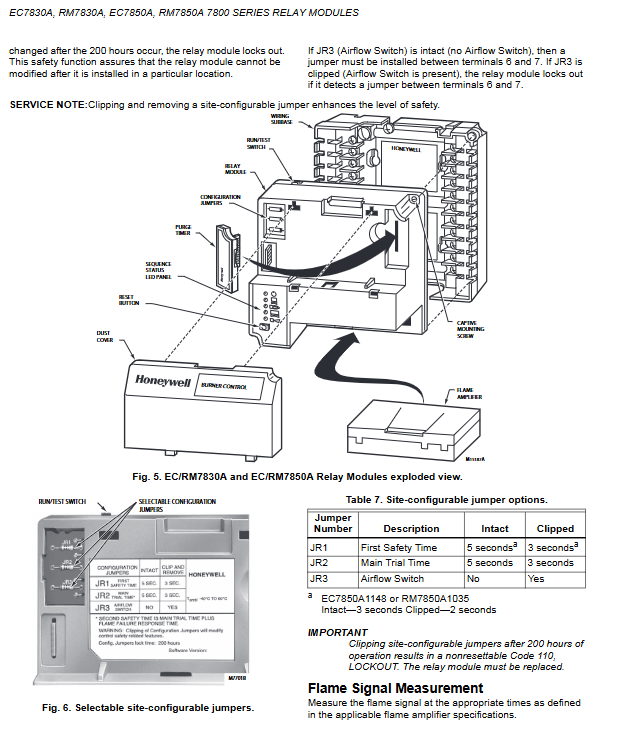

In the field of industrial burner control, Honeywell 7800 series relay modules (including EC/RM7830A and EC/RM7850A) have become the preferred safety control equipment for gas, fuel, and dual fuel burners due to their microprocessor intelligent control, comprehensive flame monitoring, and powerful self diagnostic functions. This series of products not only meets strict safety standards such as EN298 and SIL3, but also supports keyboard display modules (KDM), data control buses, and combustion system management software, greatly improving the convenience of on-site debugging and maintenance. However, due to on-site wiring errors, external interlocking faults, unstable flame signals, or configuration jumper misoperation, engineers often encounter issues such as module failure to start, safety locking, and abnormal alarm indications. This article is based on the official technical manual, systematically reviewing the technical specifications, installation points, static inspection process, operation sequence, and typical troubleshooting methods of the 7800 series, providing a practical technical manual for on-site service personnel.
