Bender LifeGuard® LG2-Series Protection Panels

• Push TEST for at least two seconds.

• The unit will trip, the green POWER ON LED will go out, and the red CIRCUIT TRIPPED LED will illuminate. Power to connected loads will be interrupted.

• Push RESET for at least one second.

• The unit will reset, the red CIRCUIT TRIPPED LED will go out, and the green POWER ON LED will illuminate. Power will be restored to the load.

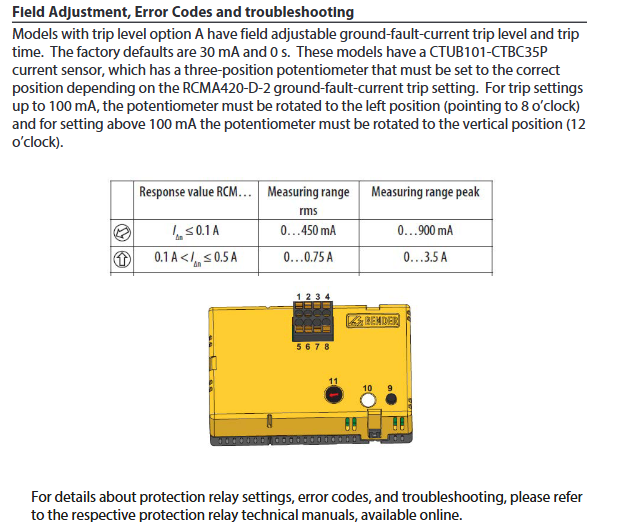

Field Adjustment, Error Codes and troubleshooting

Models with trip level option A have field adjustable ground-fault-current trip level and trip time. The factory defaults are 30 mA and 0 s. These models have a CTUB101-CTBC35P current sensor, which has a three-position potentiometer that must be set to the correct position depending on the RCMA420-D-2 ground-fault-current trip setting. For trip settings up to 100 mA, the potentiometer must be rotated to the left position (pointing to 8 o’clock) and for setting above 100 mA the potentiometer must be rotated to the vertical position (12 o’clock).

| Response value RCM... | Measuring range rms | Measuring range peak | | I_{4 n} ≤0.1 ~A$ | 0...450 mA | 0...900 mA | | 0.1 ~A<I_{An } ≤0.5 ~A$ | 0...0.75A | 0...3.5A |

For details about protection relay settings, error codes, and troubleshooting, please refer to the respective protection relay technical manuals, available online.
