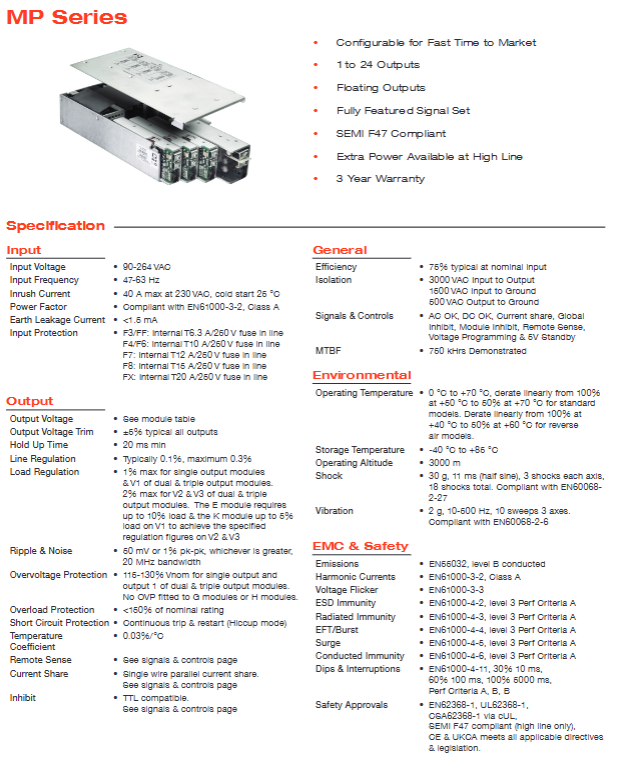

Product Overview

Product Name: XP MP Series AC-DC Power Supply

Power range: 300-2400 Watts (additional power can be increased when the high input voltage is 181-264VAC, such as F3+200W)

Core advantages: Supports 1-24 outputs, floating output design, SEMI F47 compliance (high input voltage only), 3-year warranty, MTBF up to 750000 hours, suitable for global critical system power supply needs

Security and EMC certification:

Specific standards for certification types

Safety certification EN62368-1, UL62368-1, CSA62368-1 (cUL), CE, UKCA

EMC emissions EN55032 Level B (conduction)

Electromagnetic Immunity EN61000-4 Series (ESD/Radiation/EFT Level 3, Performance Standard A)

Harmonic/flicker EN61000-3-2 Class A, EN61000-3-3

Electrical specification details

(1) Input parameters

Input voltage: 90-264 VAC (wide voltage range)

Input frequency: 47-63 Hz

Surge current: Maximum 40A at 230VAC cold start (25 ℃)

Power factor: Complies with EN61000-3-2 Class A

Leakage current:<1.5 mA

Input protection: built-in fuse (differentiated by chassis model)

Chassis model, fuse specifications

F3/FF T6.3A/250V

F4/F6 T10A/250V

F7 T12A/250V

F8 T15A/250V

FX T20A/250V

(2) Output parameters

Output voltage: Depending on module type (2-60V), supports ± 5% voltage fine-tuning

Adjustment accuracy:

Line adjustment: typical 0.1%, maximum 0.3%

Load regulation: Single output and dual/triple output V1 maximum 1%; Dual/triple output V2/V3 maximum 2% (E module V1 requires ≥ 10% load, K module V1 requires ≥ 5% load)

Ripple and noise: 50mV or 1% pk pk (whichever is greater), 20MHz bandwidth

Holding time: minimum 20ms

Temperature coefficient: 0.03%/° C

Protection function:

Overvoltage protection (OVP): Single and dual/triple V1 are 115-130% Vnom (G/H module has no OVP)

Overload protection:<150% rated power

Short circuit protection: continuous tripping+restart (hiccup mode)

(3) Isolation characteristics

Input output: 3000 VAC

Input ground: 1500 VAC

Output ground: 500 VAC

Configuration plan (chassis+module+options)

(1) Chassis selection (classified by power)

Chassis model, rated power, high voltage, additional power, applicable module quantity

F3 300W+200W 1-3 pieces

FF 350W+175W 1-3 pieces

F4 400W+200W 1-4 pieces

F6 600W+150W 1-4 pieces

F7 700W+200W 1-4 pieces

F8 800W+200W 1-6 pieces

FX 1000W+200W 1-6 pieces

(2) Output module type

Single output module: A/J/B/C/H series, voltage 2-60V, current 2-100A (example: B3)= 5V@60A ， JG= 10V@18A ）

Dual output module: G/K/D series, maximum power 150W (example: G2)= 15V@3A + 15V@3A ， K2= 5V@10A + 12V@8A ）

Three output modules: E series (Example: E1)= 5V@20A + 12V@2A + 12V@2A ）

(3) Option code (function extension)

Function description of option code

01-06 Parallel connection of B/C modules (e.g. 01=1-2 slots parallel connection of B modules)

21-25 J modules in parallel (such as 22=2-3 slot J modules in parallel)

1R reverse airflow (standard fan exhaust)

1S low noise (only F8/FX, standard intake)

2R Reverse Low Noise Airflow (F8/FX Only)

Environmental and mechanical parameters

(1) Environmental adaptability

Operating Temperature

Standard model: 0 ° C to+70 ° C (50% power when linearly rated to 70 ° C after 50 ° C)

Reverse airflow model: 40 ° C to+60 ° C (50% power when linearly rated to 60 ° C after 40 ° C)

Storage temperature: -40 ° C to+85 ° C

Working altitude: 3000 meters

Impact resistance: 30g, 11ms (half sine wave), 3 times per axis, a total of 18 times (EN60068-2-27)

Vibration resistance: 2g, 10-500Hz, 10 scans on each of the 3 axes (EN60068-2-6)

(2) Mechanical details

Size and weight (example):

Chassis model size (inches/millimeters) Weight (lb/kg)

F3（300W） 8.88×5.00×4.20（225.6×127.0×106.7） 2.80/1.27

FF（350W） 9.94×5.00×4.20（252.5×127.0×106.7） 3.95/1.80

F8（800W） 11.00×7.00×6.20（279.4×177.8×157.5） 3.96/1.80

Connectors: AC input (Molex 26-60-7050), standby output (Molex 39-01-4033), logic connector (AMP 87631-5), etc

Signal and control functions

Core signals: AC OK (power failure warning ≥ 5ms), DC OK (output voltage compliance indication), current sharing (single wire parallel), global prohibition, module prohibition, remote induction, voltage programming, 5V standby output

Remote sensing: supported by A/J/B/C/K and E modules V1 (compensating for a maximum voltage drop of 0.5V); D module supports return line voltage drop compensation (maximum 0.25V); H/G and E modules V2/V3 do not have this function

Module parallel/series connection: Single channel module and dual/triple channel module V1 can be connected in parallel to increase current; Single module can be connected in series to increase pressure (>80V, please consult sales)

Key issue

Question 1: What are the core configuration flexibility aspects of XP MP Series power supply? How to choose chassis and modules based on requirements?

Answer: Nuclear psychic activity is reflected in three aspects: "optional chassis power+combinable output modules+expandable functional options":

Chassis selection: According to the continuous maximum output power requirement, models such as 300W (F3), 350W (FF), 400W (F4) to 1000W (FX) can be selected, and additional power can be increased under high input voltage (181-264VAC);
