Complete Guide to Field Application and Troubleshooting of Mitsubishi GT15-RS2/4 Serial Communication Unit

Every year:

The measured RS-485 differential voltage (A-B) should be -0.2V~+0.2V (without bias) or stable above+0.8V (with bias) when communication is idle.

Observe the signal waveform with an oscilloscope, and the rising and falling edges should be smooth without overshoot.

6.2 Unit replacement steps (quick on-site replacement)

When it is determined that there is a hardware failure in the serial communication unit (such as internal short circuit, connector breakage), replace it according to the following process:

Backup parameters: Upload project data of GOT through GT Designer 3 and record communication settings (baud rate, station number, protocol).

Power off: Turn off GOT and external 24V power supply.

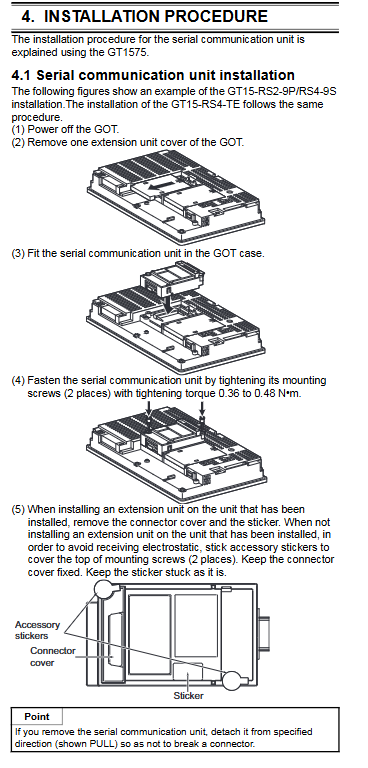

Dismantling: Unscrew the installation screws and pull out the old unit in the direction of "PULL".

Set up a new unit: If the new unit is GT15-RS4-TE or GT15-RS4-9S, set the DIP switch (terminal resistor) to the same state as the original unit in advance.

Install new unit: Align the expansion interface and press in, tighten the screws (torque 0.36-0.48 N · m).

Reconnect the external line: GT15-RS4-TE needs to plug the original terminal block back in (pay attention to the direction) and check the shielded wiring.

Power on test: Enter the GOT communication monitoring screen and confirm that the error count does not continue to increase.

Fill in maintenance records: record the replacement date, unit serial number, and fault symptoms.

Notes:

After replacement, the same model as the original must be used (for example, GT15-RS4-9S cannot replace GT15-RS4-TE because although the electrical characteristics are the same, the connector form makes it impossible to directly replace it).

If the GOT firmware version is lower than the requirement, the new unit will also not be recognized - the GOT system needs to be upgraded synchronously.

Chapter 7 EMC, RoHS and Environmental Compliance

The Mitsubishi serial communication unit complies with the following international standards:

EMC Directive (89/336/EEC): System level installation must be carried out in accordance with the "EMC and Low Voltage Directive" guidelines (such as using shielded cables and proper grounding).

Low Voltage Directive (73/23/EEC): The unit itself is a Safety Ultra Low Voltage (SELV) circuit, but the external 24V power supply connected to the system must comply with safety standards.

China RoHS: According to the Management Measures for the Restriction of Hazardous Substances in Electrical and Electronic Products, the circuit board components in the unit contain lead (Pb), but the resin shell and metal parts meet the standards. When disposing of waste, it must be classified and recycled according to industrial waste.

CE mark: printed on the GOT host nameplate, not on the serial unit, but the overall system must meet EMC requirements.
