OMRON CJ2 CPU Troubleshooting and Maintenance

Safety precautions and preventive measures

6.1 External safety circuit design

Internal faults in PLC may cause output misoperation, and a safety circuit must be designed externally:

Emergency stop circuit: Use the RUN output of the power unit (CJ1W-PA205R only) to control the external main contactor, ensuring that the load power is cut off when the CPU is not running.

Interlocking circuit: For example, the forward and reverse rotation of the motor are interlocked to prevent both outputs from being turned on at the same time.

Power off priority: Power on the PLC first, then power on the load; When cutting off power, first disconnect the load and then disconnect the PLC.

6.2 Grounding and Noise Suppression

Grounding resistance ≤ 100 Ω, use wires of 2mm ² or more.

Short circuiting the LG terminal to the GR terminal and grounding it can reduce power noise.

The I/O signal line and power line are wired separately, with a spacing of ≥ 200mm.

Inductive loads (relays, solenoid valves) require parallel diodes (DC) or RC absorption circuits (AC).

6.3 Installation Environment

The temperature inside the control cabinet is 0-55 ℃, and the humidity is 10% -90% without condensation.

Stay away from strong electromagnetic interference sources (such as frequency converters, high-frequency welding machines, etc.).

Leave at least 100mm of ventilation space above and below the CPU unit.

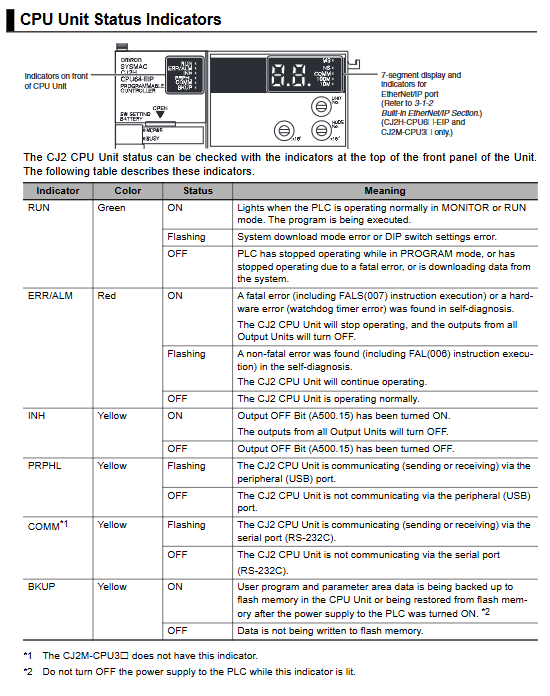

Troubleshooting Example: CX Programmer Cannot Connect

When the programming software cannot connect to the PLC, follow the following steps to troubleshoot:

USB connection:

Check if the USB cable is securely plugged in; Confirm that the computer has installed the USB driver (CX-ONE will automatically copy the driver to C: Program Files OMRON CX Server USB during installation).

You should be able to see 'OMRON SYSMAC PLC Device' in the Device Manager.

If it does not appear, manually update the driver to point to the above folder.

RS-232C connection:

Confirm the settings of DIP switch pin 5: ON for Toolbus and OFF for Host Link. The network type of CX Programmer needs to be consistent.

Use dedicated cables (XW2Z-200S-CV, etc.), and do not use regular serial port cables.

When pin 5 is turned on, the PLC automatically detects the baud rate; When OFF, the matching baud rate needs to be set in the PLC settings.

EtherNet/IP connection (CJ2H-CPU6 □ - EIP or CJ2M-CPU3 □ only):

Confirm that the computer IP and PLC IP are in the same network segment (default IP is 192.168.250. Node address, set by the front switch).

Use direct connection or switch to confirm that the 100M/10M indicator light is on.

If unable to ping, check if the IP settings of the network cable, switch, and PLC have been modified.
