Troubleshooting of R&S EPL1000

Troubleshooting of R&S EPL1000

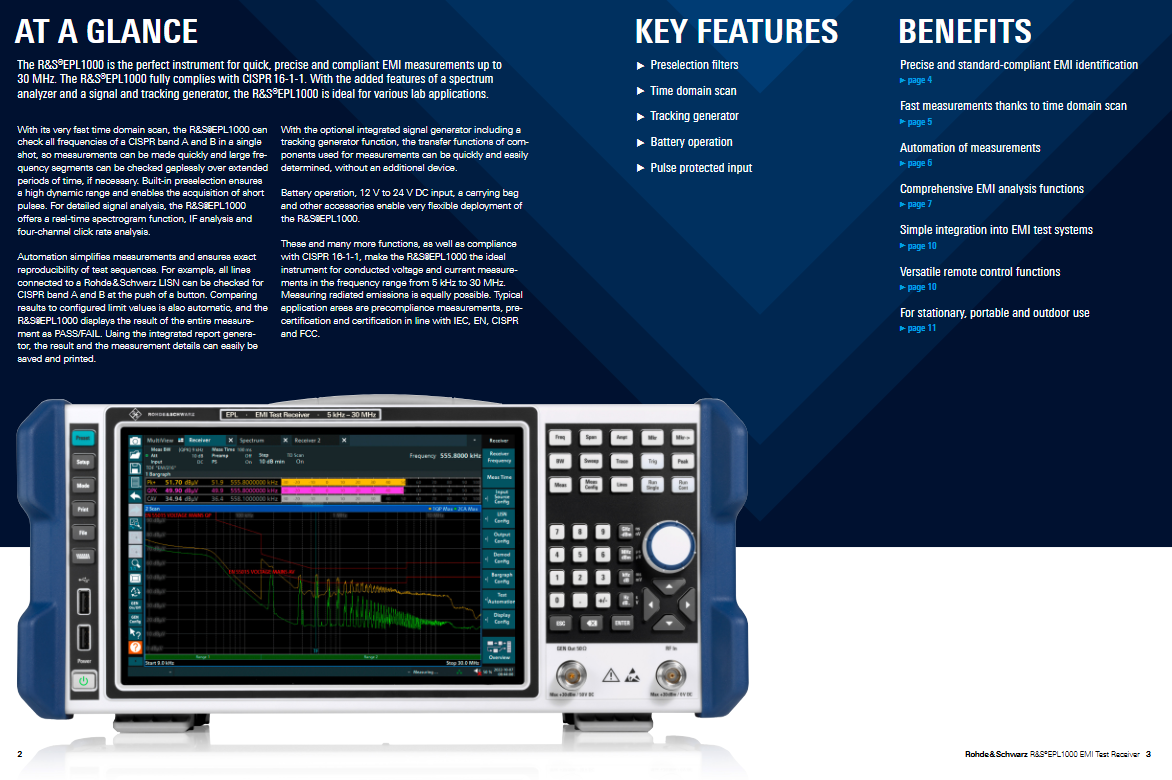

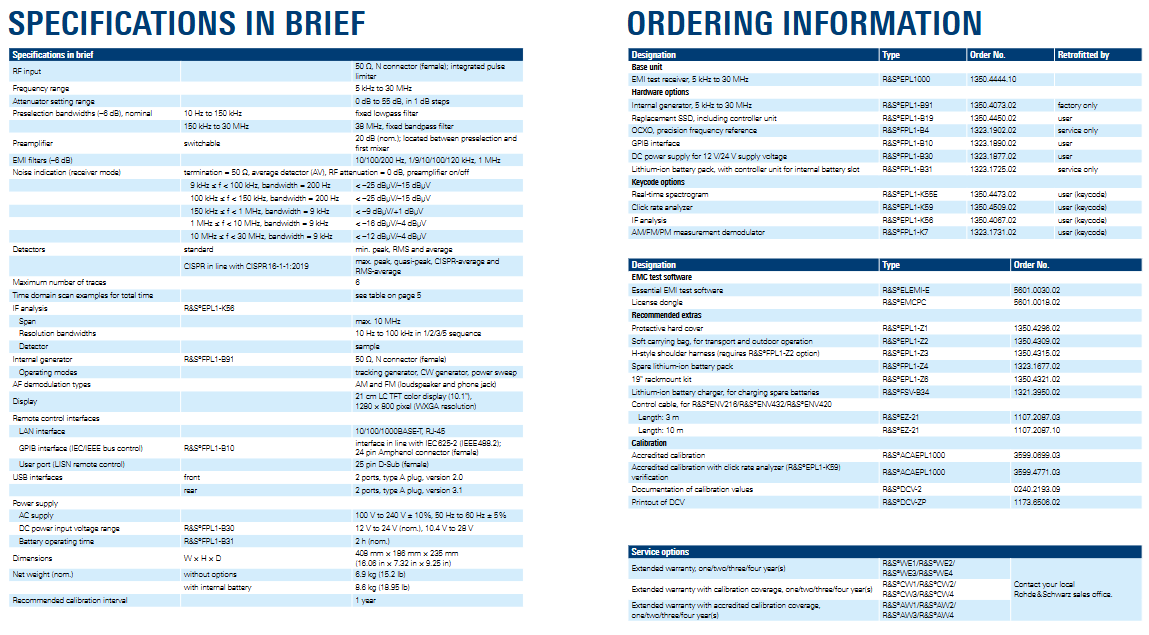

Electromagnetic compatibility (EMC) testing is a crucial step in the compliance certification of electrical products, and as the core measuring equipment, the correct configuration and troubleshooting of EMI receivers directly affect the accuracy and efficiency of test results. R&S launched by Rohde&Schwarz ® The EPL1000 EMI receiver is designed specifically for conducting emission measurement in the frequency range of 5kHz to 30MHz, fully compliant with CISPR 16-1-1 standard, and integrates advanced features such as time-domain scanning (TDS), real-time spectrogram, and click through rate analysis. However, in practical engineering applications, engineers often encounter problems such as slow measurement speed, abnormal detector response, failure to evaluate intermittent interference, and LISN communication failure. Based on the technical characteristics of EPL1000, this article systematically summarizes six common fault scenarios and provides standardized troubleshooting steps and optimization strategies to help on-site testers quickly restore equipment performance and ensure compliant measurements.

Common faults in hardware connection and initialization

1.1 Equipment unable to power on or abnormal battery power supply

Fault phenomenon:

After pressing the power button, EPL1000 has no response and the screen does not light up; Or automatically shut down after working for a few minutes on battery power.

Troubleshooting steps:

Check AC power supply: EPL1000 supports 110V to 240V AC input. It is necessary to confirm that the power cord is firmly connected and the socket is supplying power normally. If using rack installation, check if the backplane power module is securely plugged in.

Built in battery status: R&S selected ® When using EPL1-B31 rechargeable batteries, if the battery is completely depleted, the device may not be able to start. At this point, connect the AC power supply and charge for at least 30 minutes before attempting to turn it on. During the charging process, the power indicator light on the front panel should flash orange and turn green when fully charged.

Battery replacement operation: For long-term outdoor measurements (such as on-site in-situ testing), EPL1000 supports hot swappable batteries (R&S) ® EPL1-Z4/R&S ® FSV-B34）。 If the battery has aged and the range is insufficient, the device needs to be turned off, the bottom battery compartment cover should be released, the old battery should be removed, and a new battery should be replaced. Attention: Replacing the battery will not lose stored measurement data, but ongoing measurements will be interrupted.

DC input alternative: When there is no AC power and the main battery is depleted, 12V to 24V DC input can be used (option R&S) ® EPL1-B30）， Powered by a car cigarette lighter or an external battery. Pay attention to polarity when connecting: the center pin is positive.

Preventive measures:

Before conducting critical tests, check the remaining battery capacity percentage through the "System" menu. It is recommended to charge to above 80% before conducting long-term measurements. For uninterrupted testing exceeding 2 hours, prepare a backup battery or an external DC power source.

1.2 LISN remote control communication failure

Fault phenomenon:

EPL1000 is unable to automatically switch the phase lines of LISN (Line Impedance Stabilization Network). After manually selecting the LISN line, the measurement results are abnormal or display "LISN not detected".

Root cause analysis:

EPL1000 communicates with R&S through a dedicated control interface ® LISN (such as ENV216) communication requires the use of R&S ® EZ-21 control cable (length optional 3m or 10m). Common reasons for failure include: incorrect cable connection, LISN not setting the correct address, or EPL1000's remote control function not being enabled.

Solution steps:

Physical connection check: Confirm that the DB9 end of the EZ-21 cable is connected to the "LISN CTRL" interface of the EPL1000 backplane, and the other end is connected to the "Remote" interface of the LISN. Do not accidentally plug it into the RS-232 or GPIB port.

LISN address configuration: Some LISNs support cascading of multiple devices and require setting a unique address through a dip switch. For a single LISN, it is usually set to address 1. Check the LISN manual for confirmation.

EPL1000 software settings:

Press the SETUP key and select the LISN Control menu.

Set the 'LISN Type' to the corresponding model (such as ENV216).

Set 'Remote Control' to 'On'.

Select the phase lines (L/N/PE, etc.) that need to be automatically measured in the "Line Selection".

Self check verification: Perform a Preview Scan to observe if the current measured phase line identifier (such as "L1") is displayed on the screen. If you still cannot switch, try restarting EPL1000 and LISN.

Advanced malfunction:

When the length of the control cable exceeds 10m or the electromagnetic environment is harsh, communication may be disrupted. At this point, it is recommended to use GPIB or Ethernet to control EPL1000 and LISN separately, and coordinate the switching through SCPI commands, but an external controller (such as a PC running R&S ELEKTRA software) is required.

Time domain scanning configuration and performance failures

2.1 Spectrum leakage or low amplitude in time-domain scanning results

Fault phenomenon:

When using FFT based time-domain scanning to measure CISPR Band B (150kHz~30MHz), compared with traditional stepped scan results, the amplitude of certain frequency points is more than 2dB lower or non-existent false signals appear.

Principle Review:

The time-domain scanning of EPL1000 adopts parallel FFT processing to collect the entire CISPR frequency band at once, fully meeting the requirements of CISPR 16-1-1 for measurement time and detector response. However, FFT processing is sensitive to the signal-to-noise ratio and aliasing effects of the input signal. If the pre selection filter is not correctly enabled, it may lead to spectral leakage.

Solution:

Check the status of the pre selection filter: EPL1000 has built-in pre selection filters for CISPR Band A (9kHz~150kHz) and Band B (150kHz~30MHz). Under the 'FREQ' menu, confirm that 'Preselection' is set to 'Auto' or 'Band B'. If set to 'Off', strong signals can cause ADC saturation and harmonic distortion.

Adjust attenuator settings: Press the [AMPT] key to set the RF attenuation to "Auto". The pulse protection input of EPL1000 can withstand high instantaneous power, but excessive attenuation will reduce sensitivity. The automatic attenuation function optimizes the dynamic range based on the signal level.

Check overload indicator: If a red warning of "OVLD" appears in the status bar at the top of the screen, it indicates that the input signal exceeds the linear range of the mixer. At this point, it is necessary to increase the attenuation (manually set to 10dB or higher), or enable a 20dB preamplifier (only used in weak signals).

Measurement time setting: The measurement time for time-domain scanning should be at least 1 second to ensure that the CISPR quasi peak detector reaches steady state. If the setting is too short (such as 10ms), the quasi peak response will be insufficient and the amplitude will be lower. Recommended settings: Band B measurement time ≥ 1s, Band A measurement time ≥ 5s.

Verification method:

Comparative test: Under the same signal source (such as a comb wave generator), time-domain scanning and step scanning measurements should be used separately, and the deviation between the two should be within the ± 1.5dB range allowed by CISPR 16-1-1. If exceeded, contact the R&S service center for calibration.

2.2 Intermittent interference cannot be captured

Fault phenomenon:

There is occasional transient interference in the device (such as pulses generated by relay jumps), but multiple repeated scans have not shown this interference, resulting in missed reports in the pre compatibility test.

Reason:

The default Preview Scan uses a peak detector for fast scanning, but the scanning time is short (such as 100ms), which may miss transient events with low probability of occurrence.

Solution - Long term gapless measurement:

The time-domain scanning of EPL1000 supports a continuous measurement time of up to 100 seconds. The operation steps are as follows:

Enter the "Scan Table" menu and define the frequency range to be monitored (e.g. 150kHz to 30MHz).

Set the 'Measurement Time' to 10 seconds or higher (maximum 100 seconds). Note: The longer the measurement time, the larger the amount of data in a single scan, but it can ensure the capture of all transient signals.

Enable the 'Max Hold' tracking feature to overlay the maximum hold curve after multiple scans.

If you need to accurately locate the time point where interference occurs, use the Real time Spectrogram function - this mode ensures seamless acquisition of the entire frequency band and displays amplitude changes over time in color coded format.

case

When testing the laptop power adapter, it was found that some frequency points occasionally exceeded the CISPR 22 Class B limit. After setting the measurement time to 10 seconds and repeating the scan 5 times, the maximum retention curve clearly shows that the peak appears at 22.3 MHz. Further use of real-time spectrograms identified interference occurring every 2 seconds for approximately 50ms, ultimately confirming it as switch noise from the power management IC.

Troubleshooting of detector and limit line faults

3.1 Significant deviation between peak measurement results and certified laboratory

Fault phenomenon:

Under the same device and LISN, the quasi peak value (QP) measured by EPL1000 is more than 3dB lower than that of a third-party certified laboratory, but the peak detector results are consistent.

Root cause:

The charging and discharging time constants of the quasi peak detector strictly follow CISPR 16-1-1. If the measurement time (dwell time per point) of EPL1000 is insufficient, or the pulse repetition frequency of the measured signal is extremely low, the QP detector cannot reach a fully charged state.

Standard operation:

Confirm measurement time: For QP detectors, CISPR requires that the minimum measurement time for each frequency point depends on the intermediate frequency bandwidth of the receiver. For a bandwidth of 9kHz (Band B), the minimum dwell time is 1s; for a bandwidth of 200Hz (Band A), the minimum is 5s. In EPL1000, enter the "Detector" setting, set "Meas Time" to "Auto" or manually enter the above value.

Check detector mode: Ensure that the QP detector is not confused with the "Fast" mode. EPL1000 provides two QP algorithms, "Normal" and "Fast", and certification testing must use the "Normal" mode, which strictly simulates the time constant of the analog detector.

Signal stability: If the interference emitted by the tested device has a low repetition rate (e.g.<10Hz), the QP response will be lower than that of continuous waves. At this point, the "Manual" mode should be used to extend the measurement time to 10 seconds or even 20 seconds, and observe whether the QP reading continues to rise. Record after stabilizing.

Software version verification: Early firmware may have QP calculation errors. Check the EPL1000 firmware version (UTIL ->"System Info") to ensure it is the latest version. R&S regularly releases updates and fixes detector algorithms.

Practical tips:

When conducting pre certification testing, it is recommended to use peak, QP, and CISPR average detectors simultaneously, and set a longer measurement time (such as 2s/point). Although the total time has increased, the consistency between the results and the certified laboratory can be improved to within ± 1dB.

3.2 Limit line import failure or comparison PASS/FAIL logic error

Fault phenomenon:

After importing the custom limit line, EPL1000 displays "Invalid limit line format", or the measurement result clearly exceeds the limit but the system still judges it as PASS.

Solution:

Limit line file format requirement: EPL1000 supports importing via USB CSV or Limit line in TXT format. The standard format is: first column frequency (Hz), second column limit (dB μ V), third column optional (limit type, A=absolute value, M=margin). The frequency must strictly increase. Creating new lines using the instrument's built-in limit line editor ("Limit Lines" ->"Edit") can avoid formatting errors.

Database call: EPL1000 pre stores over 170 limit lines based on the latest versions of CISPR/EN, FCC, MIL-STD-461, and DO-160. It is recommended to directly use the standard lines in the library instead of manually entering them. Press the 'Limit' key, select 'Load from Library', and call according to the standard number (such as EN 55032 Class B).

The impact of margin setting: PASS/FAIL judgment is based on the "Margin" parameter (default 0dB). If the user sets a positive margin (e.g.+2dB), the system will determine FAIL when the measured value exceeds the limit of -2dB. Check the "Margin" value under the "Limit Line" menu and set it to 0dB unless necessary.

Detector correspondence: A limit line can only be associated with one type of detector (QP or AV). If both QP and AV are used in the measurement, corresponding limit lines must be assigned separately. In the Scan Table, specify the correct limit line number for each sub range.

Click through rate analysis (CISPR 14-1) troubleshooting

4.1 Clicking on measurement cannot start or recognize intermittent interference

Fault phenomenon:

Optional R&S ® EPL1-K59 click through rate analysis option, but the progress bar stagnates or there are no click events displayed on the screen after starting the measurement.

Configuration check:

Option activation: Confirm in [UTIL] ->"Installed Options" that "K59" is authorized and display "Enabled". If not activated, you need to enter the license key.

Measurement mode selection: Click rate analysis needs to run in a dedicated "Click Rate" mode, rather than the regular spectrum scanning mode. Press the [MODE] key and select "EMI Click Rate".

Frequency setting: CISPR 14-1 stipulates that click measurement must be conducted on four fixed frequencies (150kHz, 500kHz, 1.4MHz, 30MHz) or other frequencies according to the Japanese DENAN method. Enter 'Click Setup' and verify that 'Frequencies' is set to' CISPR 14-1 'instead of' User Defined '.

Measurement duration: Clicking on the measurement requires recording at least 25 valid clicks or a duration of 2 hours (for continuous interference). Set the 'Duration' to at least 30 minutes to collect sufficient samples. Attention: Do not turn off the screen or switch modes during the measurement process.

The underlying reason for no click detection:

The tested device itself does not generate intermittent interference (such as pure resistive loads).

The background noise is too high, causing the click discriminator defined in CISPR 14-1 to be unable to distinguish pulses from noise. Solution: Before measurement, scan the environmental background to ensure that the noise at each frequency point is at least 6dB below the limit.

Click through rate analyzer not calibrated: The K59 option has been validated with the test pulses defined in CISPR 16-1-1 at the factory, but can be used with R&S after long-term use ® Verify the DCV-2 or ACAPEL1000 calibration options.

4.2 Click result FAIL, but the engineer believes that the device should pass

Fault phenomenon:

EPL1000 determines that the click has failed, but according to the upper and lower limit rules (upper limit and lower limit) of CISPR 14-1, the device may actually be qualified.

Principle clarification:

CISPR 14-1 adopts the "N_limit" rule for intermittent interference: when the number of clicks per unit time exceeds the specified value and the click amplitude exceeds the limit, it is judged as FAIL. EPL1000 will display the "Clicks above limit" count and "Decision" for each channel in the "Result Summary". But some users mistakenly treat instantaneous exceeding as FAIL.

Correct interpretation steps:

Open the 'Result Details' window and view the:

Total clicks

The number of clicks exceeding the upper limit

The number of clicks exceeding the lower limit but not exceeding the upper limit

The N_limit value applied to this channel (depending on the number of switch operations)

According to the standard, FAIL is only judged when the number of severe clicks (exceeding the upper limit) exceeds N_limit. Exceeding the lower limit does not constitute failure.

Using the "Flow Chart" visual interface, EPL1000 will draw a logical tree from measurement to decision, helping users understand the basis of the decision.

If there are still doubts, the original measurement data can be exported to Excel and manually calculated according to the CISPR 14-1 formula.

Optimization measures:

If FAIL is caused by a few abnormally high clicks and the clicks come from external interference (such as other devices in the same laboratory), the "Exclude spikes" filter can be enabled in the "Click Rate" setting, or the majority decision can be taken by repeating the measurement three times.

Spectrum diagram and real-time spectrum diagram mode failure

5.1 There is a time gap in the standard spectrum diagram, and transient signals are missing

Fault phenomenon:

In the conventional spectrogram mode, although signal strength changes over time can be observed, some fast transients (such as<1ms) are not displayed.

Reason explanation:

In standard spectrogram mode, the level values within each row (time slice) may come from multiple non continuous acquisition cycles, and there are also time gaps between rows. This means that very narrow pulses may fall into the gap and be missed.

Switch to real-time spectrum:

EPL1000 offers optional R&S ® EPL1-K55E， After enabling, you can select "Real time mode" in the "Spectrogram" settings. This mode forces the use of gapless data collection to ensure continuous and uninterrupted frequency range and measurement time. Enabling steps:

Ensure that the K55E option is installed.

Press the MEAS key and select "Spectrogram".

In the "Config" menu, change the "Mode" from "Normal" to "Real time".

The system will automatically adjust parameters such as RBW and measurement time to meet the seamless condition. Users cannot modify these parameters arbitrarily, otherwise the mode will revert back to standard mode.

Starting the measurement, the screen will draw a real-time spectrum line by line, with color depth representing the level. The circular buffer can store up to the last 100000 rows and can be replayed for analysis even if measured continuously for several hours.

Application Scenario:

Check for intermittent stray emissions from wireless products such as Bluetooth and Wi Fi, or observe the response at the moment of filter insertion during electromagnetic compatibility rectification. Real time spectrograms can capture every detail.

5.2 Insufficient color contrast in the spectrogram, making it difficult to identify weak signals

Fault phenomenon:

The default rainbow color map displays levels close to the noise base as dark blue, making it difficult to distinguish from areas without signal.

Adjustment method:

Enter the "Color Map" settings and select the "High Contrast" or "Thermal" color palette.

Manually set the reference level and display dynamic range. For example, if Reference is set to 60dB μ V and Range is set to 100dB, the noise floor (such as 20dB μ V) will be mapped to the bottom of the color scale and clearly visible.

Enable the "Marker" function, click on the suspicious time-frequency point, and EPL1000 will pop up the precise amplitude value and frequency of the point, avoiding relying on visual judgment.

Automated measurement and report generation failures

6.1 Scan Table execution sequence error or repeated measurement of the same frequency band

Fault phenomenon:

Multiple frequency bands were defined (e.g. Band A: 9kHz~150kHz, Band B: 150kHz~30MHz), but only Band B was measured during execution, or two bands were alternately confused.

Configuration correction:

Enter the "Scan Table" editor and check that the "Start Freq" and "Stop Freq" of each entry do not overlap. Suggest arranging them in ascending order of frequency.

Each entry can independently set RBW, detector, measurement time, etc. Confirm that the 'Enabled' checkbox for each entry is checked.

Before executing the automatic sequence, press the dropdown menu next to the [RUN] key and select "Scan Table (All)" instead of "Single Range".

If multiple lines (L, N, PE) of LISN need to be measured, first check the lines to be measured in "LISN Control", and then start "Multi Line Scan". EPL1000 will automatically switch lines and repeat scanning tables.

6.2 Missing key graphics or data during report generation

Fault phenomenon:

The built-in report generator is used to save PDF reports, but the report only includes scanned limit line graphs and lacks click through rate analysis results or spectrograms.

Setting method:

Before generating the report, the measurement result window that needs to be included must be placed in the foreground. For example, to save the click rate analysis results, first switch to the "Click Rate" results interface.

Press the 【 REPORT 】 key and select 'Create Report'.

In the "Content" tab, check the required content such as "Screenshot of current display", "Limit Line Table", "Peak List", etc.

If click through rate analysis requires detailed channel statistics data, it is also necessary to check "Click Details".

Select Template: Users can customize template files (. dotx) and place them in the/Templates/directory on a USB drive. EPL1000 will insert data and graphics according to the template layout.

The generated report can be saved in PDF or Microsoft Word format and supports adding the company logo and tester signature.

Remote control and software integration failure

7.1 SCPI command unresponsive or timed out

Fault phenomenon:

When sending SCPI commands via Ethernet or GPIB (such as "FREQ: STAR 150kHz"), EPL1000 does not execute or returns the error "-113, Undefined header".

Troubleshooting steps:

Network connection: Use the ping command to test if the IP address of EPL1000 is reachable. If it doesn't work, check the network cable and switch settings, or try a cross line direct connection.

Ports and protocols: SCPI commands are typically transmitted through ports 5025 (Telnet) or 23 (Telnet). Confirm that the port used by the upper computer software is correct. In the LAN settings of EPL1000, "SCPI over Telnet" needs to be enabled.

Command syntax: Pay attention to the case sensitivity of EPL1000? SCPI generally does not differentiate, but certain parameters require capitalization. It is recommended to write completely according to the programming manual. Common error: Missing units (e.g. kHz cannot be omitted in "150kHz").

GPIB address: If using GPIB option R&S ® EPL1-B10， Confirm that the GPIB address matches the settings of the upper computer (default 28) and that there are no address conflicts on the bus.

Reset communication stack: In [UTIL] ->"Remote Control", execute "Reset SCPI Interface".

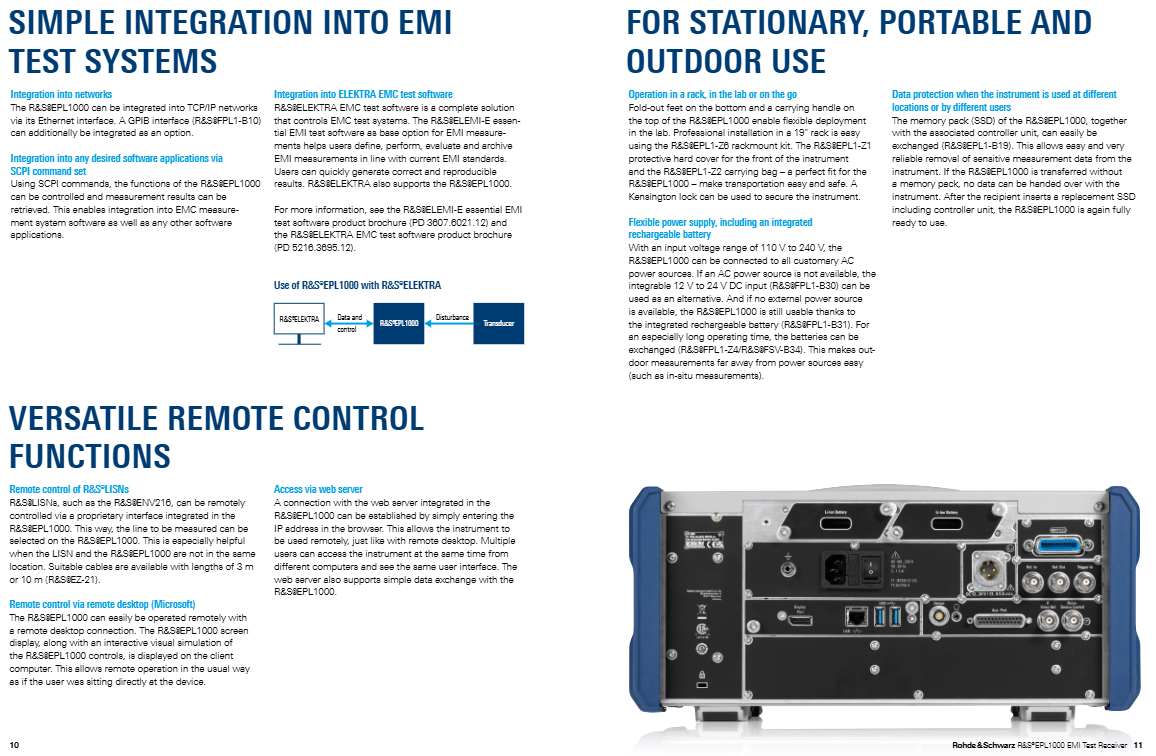

7.2 R&S ELEKTRA software cannot recognize EPL1000

Fault phenomenon:

After installing the R&S ELEKTRA EM testing software, EPL1000 cannot be found when adding devices, or "Instrument not responding" is displayed.

Solution:

Ensure that the ELEKTRA software version supports EPL1000 (requires Ver 2.0 or higher).

In the "Hardware" configuration of ELEKTRA, select "Add Instrument", type "EMI Receiver", and model "EPL1000".

We recommend using VISA over TCP/IP as the connection method. First, enable the "VXI-11" protocol on EPL1000 (SETUP ->"LAN" ->"VXI-11" set to On).

Manually enter the IP address of EPL1000 for detection.

If it still fails, try using R&S ® Connect VISA Tester separately to verify correct driver installation.

Maintenance, Calibration, and Data Protection

8.1 Measurement drift or poor repeatability

Possible reasons:

The internal reference oscillator of EPL1000 is aging, or the ambient temperature exceeds the working range (nominal+5 ° C to+40 ° C). It is recommended to calibrate once a year. Before use, preheat the instrument for at least 20 minutes until the internal temperature stabilizes.

Self checking function:

Press 【 UTIL 】 ->'Self Test' to execute the 'Receiver Performance Test', which can quickly verify frequency accuracy, amplitude linearity, noise floor, etc. If self inspection fails, it is necessary to return to the factory for repair.

8.2 Sensitive Data Protection - Removable Storage Modules

For EPL1000 used on multiple customer sites or testing involving military projects, data security is crucial. EPL1000 provides R&S services ® EPL1-B19 can replace SSD storage packs. Operation steps:

Turn off the device and disconnect all power sources.

Use a screwdriver to open the bottom storage compartment cover and remove the SSD module with controller.

Insert another blank SSD, EPL1000 will automatically initialize and load firmware after restarting.

The data in the original SSD is completely isolated and cannot be read by new users.

When handing over the instrument to other departments or customers, it is recommended to remove the SSD first to ensure that there is no residual data.
