On site Troubleshooting and Parameter Recovery Guide for Reliance Electric GV3000/SE Vector Inverter

6. Check if the input voltage is within ± 10% of U.018 when the bus voltage exceeds the limit

When triggering self-tuning with 7 current limit, the default current limit P.005 is 150%. If the rated current of the motor is too small, it can be temporarily reduced to 80% and retry

Practical skills: For SVC (without encoder) self-tuning, it should be ensured that U.001=SE and the motor pole number U.002 is correct (2/4/6/8). Usually, the rated speed of a 4-pole motor is 1725-1780rpm, and U.005 is input according to the nameplate.

3.4 Temporary emergency operation for encoder failure (changed to SVC)

When the encoder used for flux vector control (FVC) is damaged and there are no spare parts, it can be temporarily restored to operation by modifying the parameters:

Record the original U.001 (e.g. 1024) and change it to SE.

Set P.048 to UEC (maintain vector).

Adjusting the speed regulator gains U.012 and U.013 may require fine-tuning, and default values can be used (see Appendix C, U.012=5.0, U.013=5.0 below 50HP).

Re execute self-tuning (U.008=ON, press START). Attention: Self tuning still requires the motor to be unloaded.

Test run and observe if the low-speed torque is sufficient. If starting is difficult, you can slightly increase U.032 (SVC flux current regulator gain increased from default 1000 to 1200).

Limitations: SVC's torque capacity decreases near zero speed and is not suitable for applications that require maintaining torque.

Chapter 4 Parameter Recovery and Password Processing

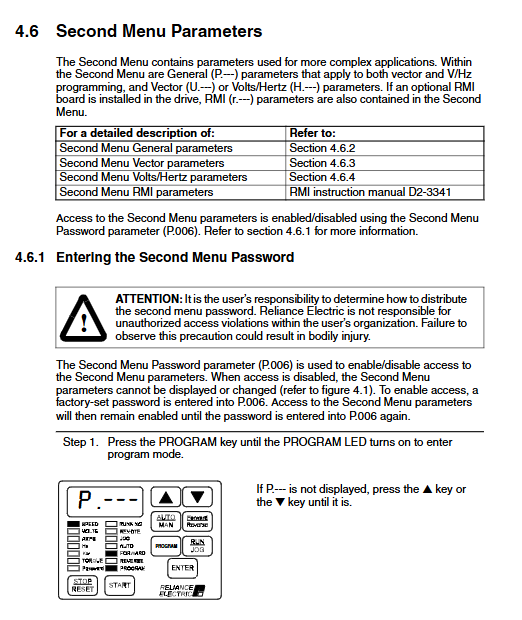

4.1 Second level menu password forgotten

The password for the GV3000/SE factory secondary menu is 107 (corresponding to P.006). If the password is changed and lost, the U/H group parameters cannot be accessed, but the first level menu can still be viewed. Solution:

Using CS3000 software (version 2.0 or above) to directly read parameters through the serial port, the software can bypass passwords.

If there is no software, the "factory default reset" function can be executed through the Operator Interface Module (OIM) - but it should be noted that this will clear all custom parameters.

Hardware method: Cut off the power, short circuit JP8 (password reset jumper) on the regulator board, power on, hold for 5 seconds, then power off and remove the short circuit. The password is restored to 107.

4.2 Restore all default parameters without losing motor data

P. 050=ON will restore all P parameters to factory default (country determined by P.049), but P.048 (V/Hz or vector) and P.099 (power module model) remain unchanged. Attention: After restoration, the motor nameplate data (H.002/U.004, etc.) will also be reset and need to be re entered. It is recommended to record all key parameters through Appendix B or upload a backup using CS3000 before performing the recovery.

4.3 Parameter adaptation after power module replacement

When replacing power modules of the same series (such as upgrading 15HP to 20HP), P.099 usually automatically recognizes the power and voltage level of the new module. But if PUc or PUn occurs, manually set P.099 to 0 and power it on again to let the driver enumerate again. If there is a significant difference in module models (such as switching 460V to 230V), it is necessary to adjust the AC line voltage settings of H.021 (V/Hz) or U.018 (vector) simultaneously.

Chapter 5 Analog Input Faults and Handling of 4-20mA Signal Loss

The analog input terminal (terminals 12-15) of GV3000/SE can accept ± 10V or 0-20mA, configured through jumper J4 and P.011. Common speed control failures and alarms on site.

5.1 Signal type mismatch

Symptom: 0-10V is given, but the displayed speed fluctuates between high and low; Given 4-20mA but no response.

Check: J4 should be placed in "Voltage" or "Current"; P. 011 should be set as:

0-3 (voltage), where 2=0-10V without disconnection detection

4-11 (current), 4=4-20mA disconnection alarm fault, 8=4-20mA disconnection alarm and maintain the last valid value

5.2 Adjusting Analog Offset and Gain

P. 009 (offset) and P.010 (gain) are used to correct inconsistencies in external potentiometers. Correction steps:

Ensure that P.000=rE (remote) and the AUTO LED is on.

Turn the potentiometer to the minimum and observe the display of "selected reference value" (press ENTER until all monitoring LEDs light up simultaneously).

Adjust P.009 to display equal to P.003 (minimum speed).

Turn the potentiometer to maximum and adjust P.010 to display P.004 (maximum speed).

After completion, restore the original value of P.000 according to actual needs.

5.3 Analog Start/Stop Function (P.011=12)

This special configuration allows the 0-10V input to serve as both a speed setting and automatically start driving when the voltage exceeds a threshold (without the need for external starting contacts). Warning: This feature poses a high risk of accidental activation and must be strictly followed in accordance with the manual warning to retain the function loss (FL) input as a safety interlock.

Chapter 6 Typical Maintenance Process and Safety Precautions

6.1 Regular Inspection Checklist

Cooling fan: The power module fan is in operation and should be replaced immediately if it is blocked or has abnormal response.
