Rockwell Automation CompactLogix 5380/5480 Complete Guide

USB programming port cannot connect to driver program not installed or cable quality issues using standard USB Type B cable; Install Rockwell USB driver (included with Logix Designer)

Reference for shutdown replacement and upgrade path

Although the current document does not list discontinued models, according to industry practices, the following replacement strategies are available for reference:

Original CompactLogix 5370 L3 (such as 1769-L33ER) → 5380 corresponding model (such as 5069-L330ERM). Note that 5370 uses 1769 I/O, while 5380 uses Compact 5000 I/O, so I/O modules need to be replaced simultaneously. But the 5380 supports remote I/O by reserving a portion of 1769 I/O through EtherNet/IP.

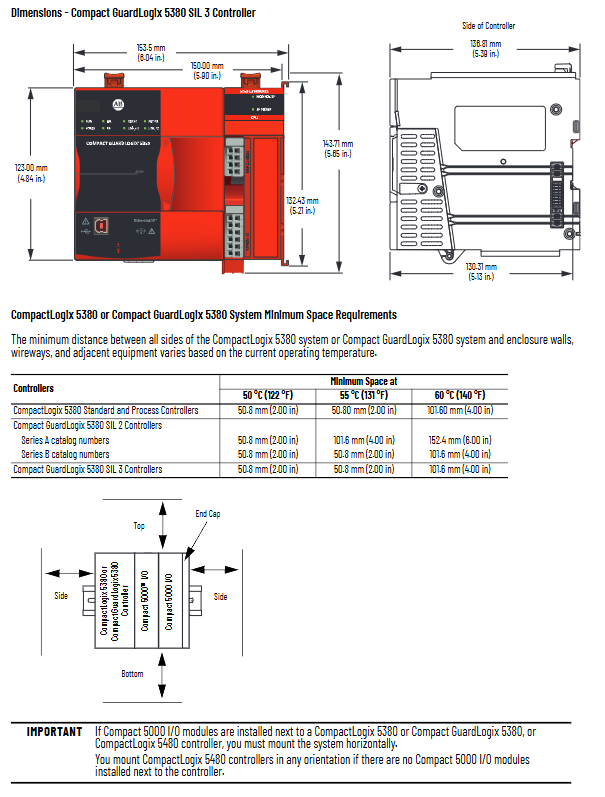

Original GuardLogix 5370 (such as 1769-L33ERMS) → 5380 SIL2 or SIL3 corresponding model. The security program needs to be revalidated.

Replacing the original ControlLogix 5560/5570 with CompactLogix 5480 can reduce costs, but attention should be paid to whether the I/O capacity and number of motion axes meet the requirements.

Summary of replacement steps:

Export the original project (. L5K or ACD）。

Create a new project and select the target 5380/5480 controller.

Import logic and remap I/O addresses (due to different I/O buses).

Download and test.
