SAMSON Type 3434 Pneumatic Controller Module

Pneumatic control core: Type 3434 controller module

In the field of industrial process control, pneumatic controllers are still widely used in industries such as chemical, petroleum, and pharmaceutical due to their inherent safety, resistance to electromagnetic interference, and suitability for flammable and explosive environments. As a key component of the Type 3430 pneumatic controller series, the Type 3434 controller module provides a flexible and reliable control solution for pneumatic control systems with its low-cost modular design. This article will provide a comprehensive and in-depth technical analysis of the controller module from the aspects of application scenarios, working principles, model versions, technical specifications, and selection points.

Product Application and Positioning

The Type 3434 controller module is specifically designed for installation in the Type 3430 pneumatic controller. The Type 3430 series is a classic on-site pneumatic control station widely used for adjusting process parameters such as pressure, temperature, and flow rate. The Type 3434 module serves as its core control unit, receiving pneumatic input signals ranging from 0.2 to 1 bar (3 to 15 psi) and outputting pneumatic signals within the same range. The gas supply pressure requirement is 1.4 bar (20 psi), which meets the standard industrial pneumatic signal range.

The plug design of this module perfectly matches the self sealing connector of the controller station and is secured with fastening screws to ensure a secure and leak free installation. The characteristic of self sealing connectors is that when the module is pulled out, the connector automatically closes to prevent gas leakage and facilitate online replacement or maintenance.

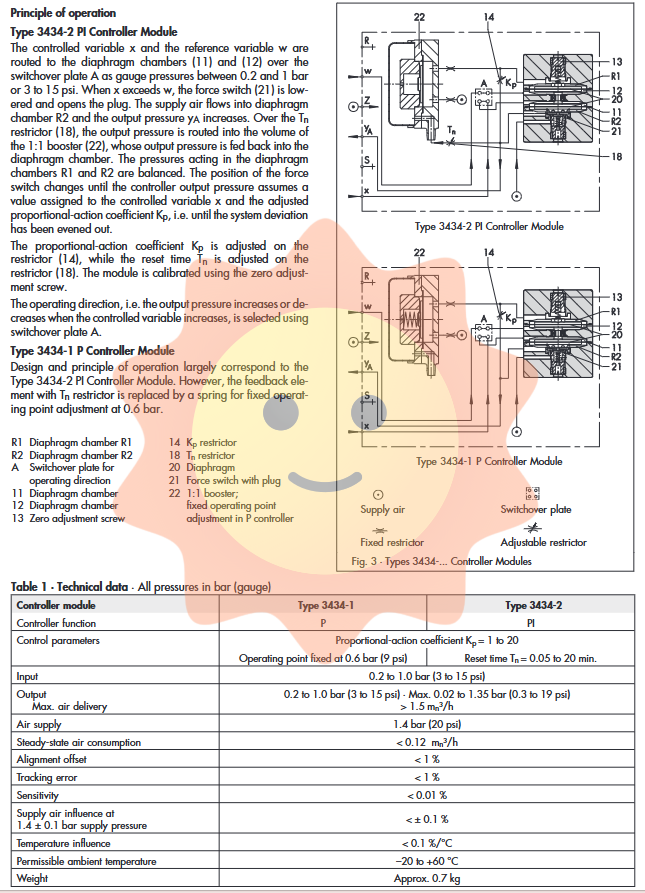

Working principle: force balance comparator

The core of the Type 3434 controller module is a box comparator that operates based on the principle of force balance. The principle of force balance is a classic closed-loop control mechanism in pneumatic instruments:

The input signal (measured value) generates a force through a bellows or diaphragm.

The set value generates a reference force through another component.

The difference between two forces drives the baffle nozzle mechanism, changes the back pressure, and thus controls the output pressure.

The output pressure is simultaneously fed back to the comparator, forming a closed loop until the force reaches equilibrium.

This design has high precision, high repeatability, and good anti vibration performance. The proportional action coefficient Kp (i.e. gain) can be continuously adjusted between 1 and 20 through a limiter to adapt to the time constants and load characteristics of different processes.

Model Version

According to different control functions, the Type 3434 controller module offers multiple versions. This data manual focuses on the following two basic models. For more P, PI, PD, and PID versions, as well as special control task modules, please refer to data sheet T 7040 EN.

1. Type 3434-1: P Control Function (Proportional Controller)

Type 3434-1 (Figure 1) achieves pure proportional control and has a fixed operating point. Proportional control outputs proportionally based on the magnitude of the deviation, with the formula: output=Kp x deviation+operating point. This model has a simple structure and fast response, suitable for situations where static error is allowed and load changes are not significant, such as pressure control of buffer tanks or non critical temperature control. Fixed working point means that when the deviation is zero, the output stabilizes at the preset bias value (usually the valve position corresponding to 0.2 bar or 3 psi).

2. Type 3434-2: PI Control Function (Proportional Integral Controller)

Type 3434-2 (Figure 2) implements proportional integral control. The integral function can eliminate static errors and make the controlled variable accurately equal to the set value during long-term operation. The PI controller is suitable for situations where the load changes frequently or where high control accuracy is required, such as temperature control of distillation columns, pressure control of reactors, etc. The integration time can be adjusted through an internal throttle (although the specific range is not listed in this data manual, the integration time of a typical pneumatic PI module can range from a few seconds to a few minutes). Compared to pure P control, PI control adds an integral element and the internal structure of the module is more complex, including integral gas volume and throttle valve.

Signal and gas path connection

The input and output signals of the Type 3434 module are all standard pneumatic signals:

Input signal (measured value): 0.2~1 bar (3~15 psi)

Output signal (control output): 0.2~1 bar (3~15 psi)

Gas supply pressure: 1.4 bar (20 psi) ± 10%

The gas supply pressure must be stable at 1.4 bar. If it is too high, it will damage internal components, and if it is too low, it will not be able to achieve full range output. The module adopts a plug-in design, and when the plug is inserted into the self sealing connector of the controller station, the air circuit is automatically connected; When pulled out, the connector automatically closes, without causing gas waste or system pressure loss. Tightening screws provide mechanical locking to prevent loosening caused by vibration.

Adjustment of proportional action coefficient Kp

The Kp regulating throttle (usually a needle valve with a scale) is located on the front or side of the module. Kp is defined as the ratio of the output change to the input change (reciprocal in the proportional band). The adjustment range of 1-20 means:

Kp=1: Low gain, proportional band of 100%, smooth control effect, good stability but large static error.

Kp=20: High gain, proportional band of 5%, strong control effect, fast response but may cause oscillation.

In actual adjustment, it is usually started from a lower Kp, gradually increasing until the system exhibits equal amplitude oscillation, and then returning to 50%~70% of the critical value. For pneumatic controllers, adjusting Kp will change the sensitivity of the baffle nozzle mechanism.

Relationship with other controller modules

Type 3434 is just a sub series of the Type 3430 controller series. According to the data manual, there are more controller modules to choose from:

P controller (other models): may have different working point settings or a wider range of proportional bands.

PD controller: Proportional derivative control, suitable for large lag objects such as temperature control.

PID controller: Proportional integral derivative control, suitable for objects with complex dynamic characteristics.

Special task modules: such as ratio control, cascade control, selection control, etc.

The specific specifications and ordering information of these modules need to be found in data sheet T 7040 EN. The Type 3434 series is positioned as a low-cost, basic module, suitable for applications that do not require high control functionality but require high reliability.

Key points for installation and maintenance

1. Installation steps

Confirm that the gas supply pressure of the controller station (Type 3430) has been adjusted to 1.4 bar.

Align the plug of the Type 3434 module with the self sealing connector and gently push it into place.

Tighten the fastening screws (recommended torque of 0.3~0.5 N · m to avoid damaging the plastic shell).

Connect the gas supply and check for leaks. You can apply soapy water to the connection.

2. Debugging

Set the Kp throttle to the initial value (e.g. 5).

For the PI module (3434-2), it is also necessary to set the integration time (if adjustable).

Input analog measurement signals (such as using precision pressure reducing valves to provide 0.2, 0.6, 1.0 bar) and measure whether the output corresponds to the expected value.

After entering the closed-loop, adjust Kp according to the system response.

3. Maintenance

Regularly check the gas supply filter to ensure that the gas source is clean, free of oil and water.

Verify the input-output characteristics every 6 months. If the deviation exceeds 1% of the full range, clean the throttle or replace the module.

If the fastening screw slips, thread locking adhesive (low strength) can be used as an aid.

Troubleshooting Guide

Possible causes and solutions for the fault phenomenon

No output. Insufficient or interrupted gas supply pressure. Check the gas source and adjust it to 1.4 bar

Output always at maximum or minimum baffle nozzle blockage or damage Clean or replace module

Output fluctuation Kp is too large or supply pressure fluctuation decreases Kp, stabilize the gas source

Static error cannot be eliminated (PI type). If the integration time is set too long or the integration gas volume leaks, reduce the integration time and check the internal seal

After replacing the module, the self sealing connector of the controller station still does not work properly. Troubleshooting connector

Selection guide and ordering information

Select the correct model based on control requirements:

Only requiring proportional control, allowing for static deviation, cost sensitive: choose Type 3434-1

Need to eliminate static error, frequent load changes: choose Type 3434-2

Differential action required: Refer to T 7040 EN and select PD or PID module

Special algorithms (such as interval and ratio): select the corresponding special module

Order Text Format: Controller Module Type 3434-... Output 0.2 to 1 bar or 3 to 15 psi (specify output signal range, choose one of the two). For example, "Controller Module Type 3434-2, output 0.2 to 1 bar".

Comparative advantages with electronic controllers

Although DCS and PLC dominate in large factories, pneumatic controller modules are still irreplaceable in certain scenarios:

Intrinsic safety: No explosion-proof enclosure required, can be directly installed in hazardous areas (Zone 0/1).

Anti electromagnetic interference: not affected by lightning strikes, radio, and frequency converters.

Simple and reliable: without electronic components, the lifespan can reach several decades.

Low cost maintenance: On site personnel can clean the throttle and replace the diaphragm by themselves.

The Type 3434 module is an ideal choice for renovating old factories or building small pneumatic control systems based on these advantages.

Compatibility and Alternative Information

The Type 3434 module is fully compatible with the Type 3430 controller station. If the original system uses pneumatic controllers from other brands (such as Foxboro, Fisher, Moore, etc.), it is usually not directly interchangeable because the pneumatic connection size and signal range may be different. But if the entire controller station is replaced with Type 3430, the Type 3434 module can be used. For scenarios that require upgrading to higher performance, solutions with I/P converters or intelligent locators can be chosen, but the cost will significantly increase.
