Overview

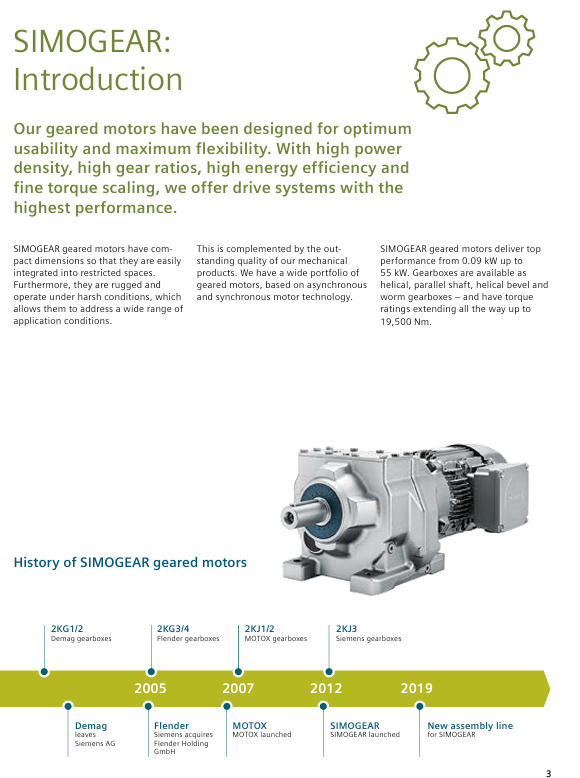

The Siemens SIMOGEAR gear motor product manual (order number DIMC-B10031-00-7600) provides a core introduction to the modular gear motor series covering a power range of 0.09-55kW and a maximum torque of 19500Nm. It includes asynchronous/synchronous reluctance motor technology and offers helical, parallel axis helical bevel、 Multiple types of gearboxes such as worm gears, with IE2-IE4 energy efficiency levels (maximum mechanical efficiency ≥ 96%), IP55 protection level, and compatible installation dimensions with market standards (same shaft height, flange, torque arm size); The product supports MODULOG modular installation system (compatible with brakes, encoders, etc.), SIMOLOC convenient shaft connection, and can integrate SINAMICS frequency converters (such as G110M). It also has digital capabilities (connected to MindSphere's Analyze MyDrive application for predictive maintenance) and is widely used in logistics, automotive, food and beverage industries. It can be selected and configured through TIA Selection Tool or Drive Technology Configurator

Core parameters and classification of products

1. Overview of Key Performance Parameters

Parameter Category Value/Range Remarks

Power range 0.09-55kW, covering low to medium to high power scenarios

The maximum torque range is 19500Nm, suitable for different load requirements

Energy efficiency levels IE2, IE3, and IE4 comply with IEC 60034-30 standard, and the efficiency of level 2 helical grade gear motors is ≥ 96%

Protection level IP55 car wash specific type with higher moisture and corrosion resistance

5 major categories of gearbox types (helical, parallel axis helical bevel、 Worm, helical worm) with 1-3 stages of transmission, transmission ratio 1.29-50000

Motor technology: Asynchronous motors, synchronous reluctance motors. Synchronous reluctance motors can operate stably without the need for encoders and have high overload capacity

Install compatibility with the same shaft height, flange size, torque arm size, and output shaft (solid/hollow) 1:1 replacement of market standard products, without the need to modify equipment structure

2. Product classification and application scenarios

Product type, core characteristics, typical applications, applicable industries

Standard gear motor with multiple types of gearboxes, supporting horizontal/vertical installation, high mechanical efficiency for horizontal conveyors, vertical hoists, cranes, mixers, logistics, automobiles, and water treatment

Synchronous Reluctance Gear Motor IE4 has energy efficiency, high dynamic performance, excellent heat dissipation, and stable operation without encoders for airport baggage handling, warehouse sorting, automotive sled systems, airports, logistics, and automobiles

Gearboxes with motor adapters support IEC/NEMA motors, servo motors (such as SIMOTICS S-1FL6), and are compatible with flexible packaging machines, metal forming machines, printing machinery manufacturing, food and beverage industries

The gear motor with integrated frequency converter is equipped with SINAMICS G110M/G115D, which supports STO safety function and enables quick debugging of sorting systems, mail processing, warehousing logistics, conveyor logistics, airports, and postal services

Car washing special gear motor die-casting aluminum shell, NBR sealing, anti chemical spray, 0-45 ℃ ambient temperature Car washing equipment (roller brush, conveyor belt) Car washing industry

Core Technology and Design Highlights

1. Modular and compatibility design

MODULOG modular installation system:

Support the installation of brake, rotary encoder, independent drive fan and other components in the later stage. The components are in stock and have a short delivery cycle, which can flexibly adapt to different functional requirements.

SIMOLOC axis connection system:

Replacing traditional hollow shaft keyways, shrink discs, or spline connections, it has lower costs, easier installation, and is suitable for fast docking between gear motors and loads.

Market standard compatibility:

Unified installation dimensions (shaft height, flange size, torque arm installation hole position, output shaft diameter) ensure 1:1 replacement with existing equipment, reducing renovation and upgrade costs.

2. Energy efficiency and reliability design

High energy efficiency motor:

Covering IE2-IE4 energy efficiency levels, with a mechanical efficiency of ≥ 96% for Level 2 helical level gear motors. Compared to traditional Level 3 gear motors (with an efficiency of 94%), the energy-saving effect is more significant, reducing long-term operating costs.

Durable structure:

The gearbox housing is made of aluminum (small size) or cast iron (large size) material, and the car washing special type is a one-piece die cast aluminum housing without bearing end caps and installation caps, reducing the number of failure points; The seal is made of NBR material, which is resistant to chemical spraying and high humidity environments.

Security function:

The integrated frequency converter model supports Safe Torque Off (STO) safety function, without the need for additional external components, meeting industrial safety standards.
