Honeywell Sieger System 57 Modbus Interface Module Kit Operating Instructions

It is recommended that the host system be programmed to use Function 02 to collect alarm and status data from all channels. If the alarm function needs to be reset, Function 06 or 16 should also be implemented.

Modbus Function Reference

Supported Features

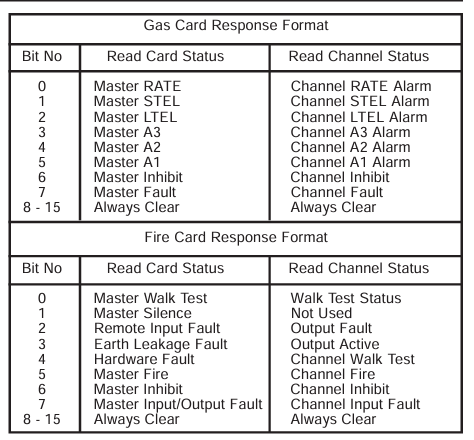

Function 02: Read input status, can read channel status bits, each sub channel has 11 status bits.

Function 03: Read the hold register. The host can read the contents of the hold register and can read up to 35 registers per frame.

Function 04: Read input registers, with two types of input registers: analog signal value and animation value. A maximum of 64 registers can be read per frame.

Function 06: Preset a single hold register.

Function 16: Preset multiple hold registers, up to 35 registers can be set per frame.

Specification parameters

Environmental parameters

Working temperature: -5 ° C to+55 ° C.

Storage temperature: -25 ° C to+55 ° C.

Humidity: 0 to 90% RH (non condensing).

EMC/RFI compliance

Compliant with EN50081 Part 1 and Part 2 (EMC/RFI Generic Emission) and EN50082 Part 1 and Part 2 (EMC/RFI Generic Immunity).

Serial communication

Format: Asynchronous serial data.

Data bit: 8.

Speed: 19200, 9600, 4800, 2400 baud.

Stop position: 1 or 2.

Parity check: odd, even, or none.

Mode: Half duplex.

Modbus protocol

Mode: RTU.

Supported functions: 02, 03, 04, 06, and 16.

RS485/422 interface module

Power supply: Powered by the engineering card.

Power consumption: maximum 1.5W.

Weight: 30g.

On site terminal: 2.5mm ² (14 AWG), located on the DC input card.

Cable type: It is recommended to use shielded twisted pair cables with separate grounding wires.

Input/Output: Two RS485 transceivers (Channel 1, Channel 2).

Working mode: single RS485 highway, dual RS485 highway (primary and secondary) RS422 highway。

Multi node capability: up to 31 nodes (RS485) or up to 10 nodes (RS422).

Maximum cable length: 1200m (3900ft).

Maximum data rate: 19.2k baud.

RS232 module

Power supply: Powered by the engineering card.

Power consumption: Maximum 0.75W.

Weight: 30g.

On site terminal: 2.5mm ² (14 AWG), located on the DC input card.

Cable type: It is recommended to use shielded multi-core wires.

Input/Output: Two data sets (RXD, TXD) and two handshakes (DTR, DSR).

Maximum cable length: 15m (49ft).

Maximum data rate: 9600 bits per second.
