Westinghouse WH7500V portable generator

来源: | 作者:FAN | 发布时间 :2025-11-13 | 9 次浏览: | Share:

Westinghouse WH7500V portable generator

Detailed explanation of core product information

1. In depth analysis of technical parameters

Category parameter details note explanation

Power performance: Continuous power 6000W, peak power 7500W, voltage 120/240V single-phase, frequency 60Hz. Peak power is only used to start inductive loads (such as motor equipment), and continuous operation requires ≤ 6000W

The engine system is a four stroke single cylinder OHV engine with a cylinder diameter of 66 × 90mm and an ignition method of TCI (transistor ignition). The OHV design improves combustion efficiency and extends engine life; Forced air cooling for heat dissipation, suitable for long-term operation

Oil specifications: Oil capacity 1.1 liters, recommended models: SAE 10W-30 (normal temperature -10~40 ℃), 5W-30 (low temperature<-10 ℃), SAE 30 (high temperature>30 ℃). API SJ or higher grade four stroke engine oil is required, and the use of two-stroke engine oil or mixed engine oil is strictly prohibited

The fuel tank capacity of the fuel system is 25 liters (6.6 gallons), suitable for unleaded gasoline of grade 87 and above. E15/E85 ethanol gasoline is prohibited if the ethanol content is ≤ 10% (which can easily cause corrosion and blockage of the fuel system); 50% load can run for more than 10 hours under full oil condition

Starting method: Electric start (12V lead-acid battery), manual manual start (emergency backup). Electric start requires sufficient battery power, and manual start is an emergency plan suitable for battery depletion scenarios

The physical characteristics are equipped with universal wheels and a telescopic single handle. The body is made of steel frame, and the bottom is equipped with shock-absorbing pads for easy short distance movement by a single person. The shock-absorbing pads reduce vibration during operation; The net weight is relatively heavy (about 100kg), and long-distance transportation requires the cooperation of two people or mechanical assistance

Safety protection includes low fuel automatic shutdown, GFCI leakage protection, circuit overload protection, spark suppressor, and fuel shut-off valve to comprehensively avoid operational risks. The spark suppressor prevents sparks from leaking out of the muffler and is suitable for outdoor dry environments

2. Analysis of core components and control panel

(1) Core component functions

Engine compartment: Built in four stroke OHV engine, including air filter, spark plug, muffler (with spark suppressor), oil filling port/dipstick, oil drain bolt, engine block with heat sink to enhance heat dissipation.

Fuel system: large capacity fuel tank (with fuel gauge), fuel shut-off valve (controlling fuel supply on/off), fuel filter (sedimentation cup type, filtering impurities), carburetor (atomizing fuel).

Power generation system: AC generator (with AVR voltage regulator, stable output), equipped with main circuit breaker and branch circuit breaker to prevent overload and short circuit.

Mobile and Fixed Components: Universal Wheels (Wear resistant and Anti slip), Telescopic Handle (Rubber Anti slip Grip), Bottom Support Feet (Enhance Placement Stability), Shock Absorbers (Reduce Operating Vibration).

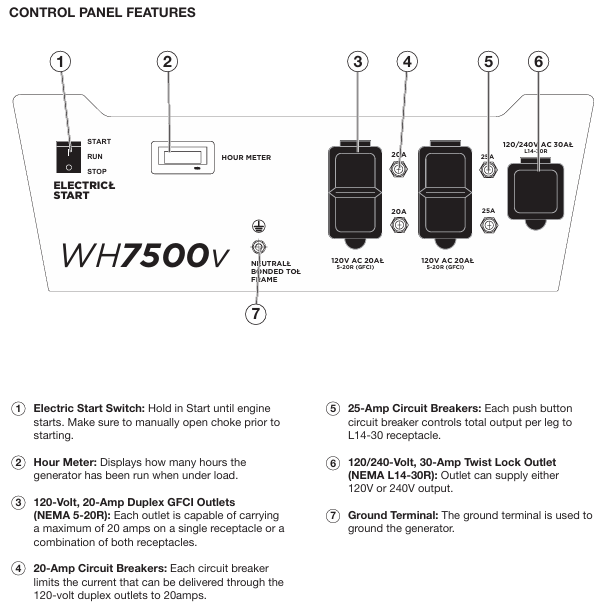

(2) Control panel full analysis

Component Name Function Description Operation Points

The electric start switch (START/RUN/STOP) integrates the functions of starting, running, and stopping. Press "START" for 1 second to start, keep "RUN" for running, and set "STOP" for stopping

The hour meter records the cumulative operating time of the generator to remind maintenance intervals (such as 50 hours of oil change), and only counts under load conditions

Two 120V 20A GFCI dual socket outlets output 120V AC power with leakage protection. The maximum load of a single socket is 2400W, and the total load of the dual sockets is ≤ 4800W. After use, close the waterproof cover plate

120/240V 30A locking socket (1) outputs mixed voltage, suitable for high-power equipment (such as air conditioning, water pump) with a maximum load of 7200W (240V) or 3600W (120V), requiring the use of a dedicated L14-30R locking plug

Circuit breaker (20A/25A) 20A corresponds to a 120V socket, 25A corresponds to a 240V socket, and automatically trips when overloaded/short circuited. Before resetting, the fault needs to be investigated (such as reducing the load and repairing the short circuit)

The grounding terminal is used for external grounding (such as when connected to a household power distribution system). The neutral wire is already connected to the body and does not require additional grounding when used separately; Grid connection must be grounded according to regulations

The fuel gauge visually displays the remaining fuel level in the fuel tank. When the fuel level is less than 1/4, it should be replenished in a timely manner to avoid running out of fuel and shutting down during operation


Safety operation standards (including risk avoidance)

1. Environment and placement safety

Core requirements for placement:

Only use in fully open and well ventilated outdoor areas, at least 6 feet (about 1.8 meters) away from doors, windows, ventilation openings, tents, etc., to prevent carbon monoxide exhaust from entering indoors (the engine exhaust contains highly toxic carbon monoxide, which is colorless and odorless).

Place on a hard, horizontal surface (with an inclination angle of ≤ 5 °) to avoid engine wear caused by fuel leakage or uneven oil lubrication; Do not place it on loose surfaces such as sand or grass (which can easily attract debris and block the heat dissipation outlet).

At least 3 feet (about 0.9 meters) of heat dissipation space should be reserved around the fuselage, away from flammable materials such as hay, wood, paint, gasoline, etc. The muffler should face the unmanned area (the temperature can reach 400 ℃ or above during operation).

Environmental limitations and responses:

Prohibited scenarios: rainy, snowy, or damp ground (to prevent electric shock); Closed/semi closed spaces (such as garages, basements, tents); Dust and corrosive gases (such as coastal salt spray and chemical plant areas) environment.

Extreme weather: In rainstorm days, temporary awning (not sealed, ensure ventilation) shall be built to prevent rain from splashing the engine and control panel; In high temperature weather (>35 ℃), it is necessary to reduce the capacity for use (reduce the capacity by 10% for every 10 ℃ increase).

2. Fuel safety operation

Preparation before refueling:

Turn off the engine and wait for at least 5 minutes for it to cool down (due to the high temperature of the muffler and engine block, which can easily ignite the fuel).

Clean the oil and dust around the fuel tank cap to prevent impurities from entering the fuel tank; Prepare a qualified fuel can and do not pour it directly from a bucket.

Refueling operation specifications:

Slowly add fuel, with the fuel level not exceeding the lower edge of the fuel tank filling port (leaving 5-10% expansion space), to avoid fuel spillage during high temperatures.

If fuel overflows, immediately wipe it clean with a dry cloth and wait for the fuel to completely evaporate before starting the engine (do not ignite immediately); Check for leaks at the connections of the fuel tank and oil pipes. If there are leaks, do not start.

Fuel storage and handling:

Backup fuel should be stored in a compliant fuel container, in a well ventilated, cool, and away from sources of ignition. The storage time should not exceed 3 months (with the addition of fuel stabilizers, it can be extended to 6 months).

Degraded fuel must be handed over to professional institutions for recycling, and it is prohibited to dump it indiscriminately (which pollutes the environment and is flammable).

Forbidden operation: Do not refuel while the engine is running; Do not use fuel to clean the body or components; Do not place fuel containers on the generator or near heat sources.

3. Electricity safety regulations

Extension cable selection:

Outdoor dedicated, undamaged, and well grounded three core cables must be used, with cable specifications matching the load and length:

20A load (such as small power tools): use 14 gauge cable for lengths ≤ 25 feet; Use 12 gauge cable for ≤ 50 feet.

30A load (such as 3kW air conditioner): use 10 gauge cable for lengths ≤ 50 feet; Use size 8 gauge cable for ≤ 100 feet.

It is prohibited to use two core ungrounded cables, damaged cables, or multiple cables connected in series (which are prone to heating and leakage).

Load access principle:

Before starting, all loads must be disconnected to avoid overload triggering protection during startup (the starting current is 3-5 times the operating current).

After the generator runs stably (no-load for 3-5 minutes), connect high-power devices (such as air conditioning and water pumps) first, and then connect low-power devices (such as lights and mobile phone chargers), with a total operating power of ≤ 6000W.

Inductive loads (motor type) require separate calculation of starting power to avoid multiple units starting simultaneously (such as a 3kW air conditioner+a 2kW water pump, the starting power may exceed 7500W).

Grounding and grid connection requirements:

The neutral wire of the generator is connected to the metal casing of the machine body, and does not require additional grounding when used alone; If it is necessary to connect to the household fixed power distribution system, a certified electrician must install an automatic transfer switch (direct grid connection is prohibited to avoid reverse power transmission to the grid).

When connecting metal shell equipment (such as power tools, water pumps), ensure that the equipment is well grounded to avoid electric leakage and shock.

GFCI socket usage:

Before each use, it is necessary to test: after starting the generator, press the "TEST" button on the socket, and the socket should trip and cut off power; Press the "RESET" button again to reset and confirm that the power supply is normal.

If GFCI trips frequently, it may be due to equipment leakage or cable damage, and the fault needs to be investigated before use.

4. Personnel safety protection

Operation protection: goggles must be worn (to prevent fuel splashing and debris from entering the eyes), gloves must be worn (to prevent oil contamination and burns); Long hair should be curled up to avoid getting caught up in moving parts such as starting ropes and fans.

Personnel management: Children and pets should stay away from the running generator (at least 3 meters away); Do not operate the generator when fatigued, under the influence of alcohol, or after taking medication (which affects judgment).

Emergency response:

If symptoms such as dizziness, nausea, and fatigue occur after inhaling carbon monoxide, immediately transfer to fresh air and seek medical attention in severe cases.

If burns occur (due to contact with high-temperature components such as mufflers), immediately rinse the burned area with cold water, and seek medical attention in severe cases.

If a fire occurs, use ABE or BE type fire extinguishers to extinguish it (it is prohibited to directly extinguish electrical or fuel fires with water).


Complete operation process (assembly → start → run → stop)

1. First use assembly and preparation

Open box inspection:

Remove the generator and its accessories (wheel kit, feet, tool kit, oil, battery, manual, quick guide).

Check that the appearance of the generator is undamaged, the components are not loose, the sockets and switches are functioning properly, and the battery is fully charged (voltage ≥ 12V).

Install wheels and feet:

Tilt the generator (ensuring that the fuel shut-off valve is closed to avoid fuel leakage), and use the attached M8 flange bolts to secure the support feet on both sides of the bottom of the fuselage.

Thread the wheel axle pin through the wheel and body bracket, insert the washer, insert the split pin and bend it to lock, ensuring that the wheel rotates flexibly and is securely installed (which can drive the generator to test stability).

Install battery:

Find the battery compartment on the body, first connect the red positive cable to the positive pole (+) of the battery, and put on an insulating sheath; Connect the black negative cable to the negative pole of the battery (-), and also cover it with a protective sheath (to avoid short circuits between the positive and negative poles).

Confirm that the cable connection is secure, fix the battery in the battery compartment, and avoid shaking during operation.

Add engine oil:

Place the generator on a level surface, unscrew the oil filler cap on the side of the body, and take out the dipstick.

Slowly add the recommended model of engine oil (SAE 10W-30) and check the dipstick while adding until the oil level is between the "L" (lowest) and "H" (highest) marks (not exceeding the "H" mark to avoid excessive oil accumulation and oil leakage).

Tighten the oil filler cap and dipstick, and wipe off any remaining oil with a dry cloth.

Add fuel:

Unscrew the fuel tank cap (counterclockwise) and clean the impurities around the fuel inlet.

Add unleaded gasoline of grade 87 or above, with the fuel level not exceeding the lower edge of the filling port, and tighten the fuel tank cap (clockwise).

Check for leaks at the connection between the fuel tank and oil pipe. If there is any overflow, wipe it clean immediately.

2. Start the process

Preprocessing:

Confirm that the generator is placed horizontally, the fuel shut-off valve is turned to the "ON" position, all loads have been disconnected, and the circuit breaker is in the reset state.

Cold engine start: Set the air door to the "ON" position (close the air door to increase fuel concentration); Hot engine start: Keep the air door in the "OFF" position (open the air door).

Startup mode selection:

Electric start: Press and hold the "START" button on the control panel for 1 second, and release it immediately after the engine starts (to avoid damaging the starter motor); If it fails to start once, try again after a 15 second interval (up to 3 times, if unsuccessful, switch to manual start).

Manual start: Turn the start switch to the "RUN" position, slowly pull the start rope until there is resistance (piston compression stroke), and then quickly and forcefully pull the handle; After starting the engine, slowly release the starting rope.

Stable operation:

After starting, let the generator run without load for 3-5 minutes, and gradually turn the air damper to the "OFF" position (adjust according to the engine operating status to avoid unstable idle).

Observing the control panel: The hour meter is counting normally, the fuel gauge shows sufficient, the circuit breaker is not tripped, and there is no abnormal noise (such as knocking or whistling).

Load connection:

According to the principle of "high power first, low power later", connect the devices one by one, ensuring that the plug is fully inserted to avoid loosening and heating.

If connecting to a 240V device, a dedicated L14-30R locking plug is required. After insertion, rotate it clockwise 1/4 turn to lock it; If 120V devices are used simultaneously, the load should be balanced through socket color identification (red/green identification for each device with the same power) to avoid abnormal generator vibration.

3. Monitoring and regulation during operation

Real time monitoring points:

Power monitoring: Total operating power ≤ 6000W, avoid long-term full load operation (recommended ≤ 80% load to extend engine life).

Oil monitoring: Check the oil level every 8 hours, and replenish if it is below the "L" mark; Add fuel promptly when the fuel level is below 1/4.

Temperature monitoring: There are no abnormal hot hands on the side of the body during operation, and there are no foreign objects blocking the heat dissipation port. If the engine overheats, it will automatically shut down. After cooling, clean the heat dissipation fins and restart.

Adjustment operation:

If the circuit breaker trips due to excessive load, immediately disconnect part of the load, press the circuit breaker reset button, and then reconnect.

If the engine speed fluctuates during operation, it may be due to insufficient fuel supply or clogged air filter. Check if the fuel shut-off valve is fully open and if the air filter is clean.

Long term operation (exceeding 2 hours) requires regular inspection of the equipment's operating status to avoid overheating and cable overheating.

4. Shutdown process (operating in different scenarios)

(1) Normal shutdown

Disconnect all loads (unplug or turn off the device switch).

Run the generator without load for 3-5 minutes to cool down the engine and generator (to avoid direct shutdown due to high temperatures causing carbon buildup).

Turn the start switch to the "STOP" position to shut down the engine; Close the fuel shut-off valve (set to "OFF").

Close all waterproof covers of sockets and cover with dust covers (if not used for a short period of time).

(2) Emergency shutdown (fire, leakage, abnormal noise, etc.)

Directly turn the start switch to the "STOP" position and force the machine to stop (without disconnecting the load).

Follow up processing: Investigate the cause of the malfunction (such as fuel leakage, engine noise), eliminate the fault before use, and prohibit restarting without troubleshooting.

(3) Long term shutdown (exceeding 1 month)

Disconnect the load according to the normal shutdown process and run it without load for 1 minute.

Close the fuel shut-off valve and allow the engine to continue running until the fuel runs out and automatically shuts down (to avoid fuel deterioration and blockage in the carburetor).

Disconnect the battery connection (first unplug the negative cable, then unplug the positive cable), fully charge the battery, and store it separately (to avoid damage due to low battery).

Clean the dust and oil stains on the surface of the generator, check the condition of the air filter and spark plug, and clean them if necessary.

Inject 1 teaspoon of new engine oil into the cylinder and pull the starting rope 3-5 times (without ignition) to evenly distribute the oil on the cylinder wall (rust prevention).

Cover with a dust cover and store in a dry, ventilated, and cool room (do not store in flammable areas).


Complete maintenance process (including cycle and details)

1. Preparation before maintenance

Safety measures: Turn off the generator, disconnect the battery connection, and allow the engine to cool to room temperature (to avoid high-temperature burns); Operate in a well ventilated area and prepare tools (wrench, oil pan, funnel, wire brush, etc.).

Tool list: Cross/Phillips screwdriver, spark plug socket wrench, 10mm/13mm wrench, oil pan, funnel, cleaning cloth, compressed air (optional), new engine oil, fuel stabilizer, spare spark plug.

2. Routine maintenance items (executed on a periodic basis)

Before/after each use

Cleaning: Use a dry cloth to wipe the dust and oil stains on the surface of the machine body, clean the debris on the heat sink and ventilation openings (to avoid blockage that affects heat dissipation); Check if the waterproof cover of the socket is intact.

Check:

Appearance: The components are not loose or damaged, and the oil pipes and oil pipe joints are not leaking.

Oil level: The engine oil level is between "L" and "H", the fuel gauge shows sufficient, and there is no leakage.

Battery: The connection is firm, without bulging or leakage (lead-acid batteries need to check the electrolyte level, and if it is insufficient, add distilled water).

Cable and plug: No damage or aging, and the plug has good contact.

GFCI test: After starting the generator, test the leakage protection function of the socket (press the "TEST" button to trip and the "RESET" button to reset).

Run every 8 hours (or after each use)

Oil level check: Add oil to the standard level (not exceeding the "H" mark).

Fuel filter inspection: Observe whether there is moisture or impurities in the sedimentation cup. If there are, unscrew the drain screw to drain it, and then tighten it again.

3. Long term storage and maintenance (over 3 months)

Preparation before storage:

Cleaning: Thoroughly wipe off dust and oil stains on the surface of the body, clean up debris from the heat sink and ventilation vents.

Fuel treatment:

Method 1 (Adding Stabilizer): Fill up with fresh fuel, add fuel stabilizer (according to the instructions), start the engine and run for 5 minutes, let the stabilizer circulate to the fuel system, and close the fuel shut-off valve and battery switch.

Method 2 (Drain Fuel): Close the fuel shut-off valve, unscrew the carburetor float drain screw, and drain the fuel; Unscrew the fuel tank drain screw, drain the fuel from the tank, and then tighten all screws.

Oil change: Change the engine oil according to the procedure (to avoid impurities in the old oil corroding the engine).

Cylinder rust prevention: Remove the spark plug, inject 1 teaspoon of new engine oil into the cylinder, pull the starting rope 3-5 times (without ignition) to evenly distribute the engine oil on the cylinder wall, then reinstall the spark plug and pull the starting rope until the piston is in compression stroke (valve closed to prevent moisture from entering).

Battery handling: Disconnect the battery, store it separately after fully charging, and recharge it every 1-2 months (to avoid battery depletion).

After storage, remove and use:

Remove the dust cover and check the appearance of the generator for any damage or debris.

Connect the battery and check the oil level (replenish if insufficient).

Add fresh fuel (do not use fuel that has been stored for too long).

According to the normal start-up process, the engine may emit smoke for a short period of time (residual oil in the cylinder), which is a normal phenomenon and will disappear after running for 1 minute.

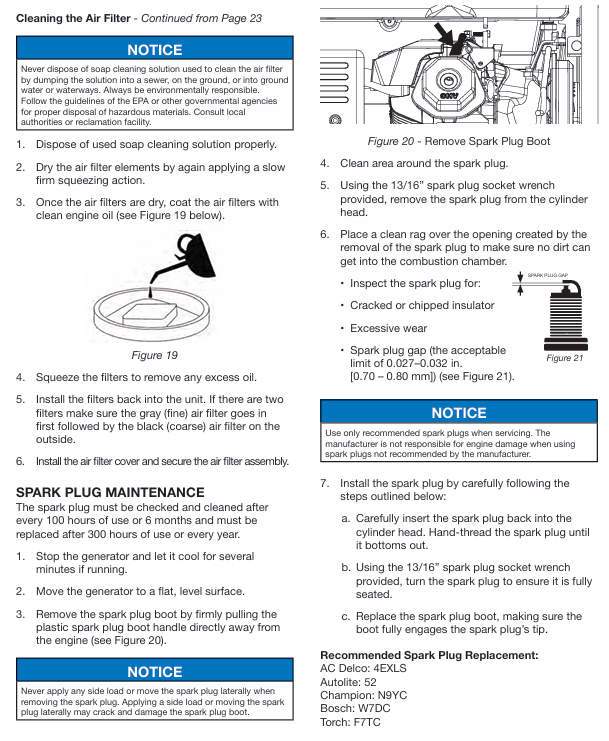

4. Maintain taboos and precautions

Do not use flammable solvents such as fuel or banana oil to clean components (such as air filters and machine bodies) to avoid causing fires.

It is prohibited to mix different brands and models of engine oil, and it is forbidden to use two-stroke engine oil or inferior engine oil (which can damage the engine).

When replacing spark plugs, the recommended model must be used and the tightening torque should not be too high (to avoid damaging the cylinder head threads).

When cleaning the air filter, do not twist or tear the foam filter element, and do not wash the paper primary filter with water (only air blowing).

After all maintenance operations, it is necessary to ensure that the components are securely installed and the screws are tightened to avoid detachment during operation.


Deep troubleshooting of common faults (including causes and solutions)

Possible causes of malfunction, troubleshooting steps, and solutions

Unable to start: 1. Battery is running low (electric start failure); 2. Insufficient or deteriorated fuel; 3. Spark plug malfunction (carbon buildup, improper clearance, moisture); 4. The fuel shut-off valve is not open; 5. Incorrect position of the air door (the air door of the refrigeration unit is not closed); 6. Low oil protection triggered; 7. The spark plug cap is not tightly inserted. 1. Check the battery voltage (≥ 12V), and charge or replace it if it is depleted; 2. Check the fuel gauge and add fresh fuel; 3. Remove the spark plug and check its condition; 4. Confirm that the fuel shut-off valve is in the "ON" position; 5. Close the air door of the cooling machine and open the heating machine; 6. Check the low oil alarm and replenish the engine oil; 7. Tighten the spark plug cap. 1. Charge or replace the battery; 2. Replace with fresh fuel; 3. Clean spark plugs, adjust clearances, air dry if damp, replace if damaged; 4. Open the fuel shut-off valve; 5. Adjust the position of the air door; 6. Add engine oil to the standard level; 7. Tighten the spark plug cap

Stop immediately after startup. 1. Low oil protection (insufficient engine oil); 2. Fuel pipeline blockage; 3. The load is not disconnected; 4. Blockage of carburetor; 5. Spark suppressors are blocked. 1. Check the low oil alarm and replenish the engine oil; 2. Check for blockages in the fuel filter and fuel pipes; 3. Confirm that all loads have been disconnected; 4. Clean the carburetor float; 5. Clean the spark suppressor filter. 1. Add engine oil; 2. Clean the fuel filter and unclog the fuel pipe; 3. Restart after disconnecting the load; 4. Disassemble and clean the carburetor (professional operation); 5. Clean the spark suppressor and replace it if it is damaged

Insufficient power/unstable speed during operation 1. Load exceeding the standard; 2. Insufficient fuel supply (clogged fuel filter, leaking fuel pipe); 3. Air filter blockage; 4. Spark plug carbon deposition; 5. The air door is not adjusted to the "OFF" position; 6. Poor fuel supply to carburetor. 1. Check if the total load exceeds 6000W. 2. Check if there are impurities in the fuel filter and if the fuel pipe is leaking; 3. Check the status of the air filter; 4. Clean the spark plug; 5. Adjust the air damper to a stable position; 6. Check the carburetor float oil level. 1. Reduce the load to the rated range; 2. Clean the fuel filter and repair the leaking oil pipe; 3. Clean or replace the air filter; 4. Clean or replace spark plugs; 5. Adjust the air door; 6. Clean the carburetor (professional operation)

No output voltage: 1. Circuit breaker tripped; 2. GFCI socket not reset; 3. Loose wiring or poor plug contact; 4. Internal winding failure of the generator; 5. Load short circuit triggering protection 1. Check if the control panel circuit breaker has tripped; 2. Press the "RESET" button on the GFCI socket; 3. Check if the output socket and wiring are loose; 4. Disconnect all loads, restart and test; 5. Check if the connected device is short circuited. 1. Reset the circuit breaker after checking for overload; 2. Reset the GFCI socket, if it still does not work, replace the socket; 3. Tighten the wiring and plugs; 4. If there is still no output, contact after-sales maintenance; 5. Replace faulty equipment

Electric start failure (manual start normal) 1. Battery depletion; 2. Fault in the starting motor; 3. Start switch malfunction; 4. Loose wiring: 1. Check the battery voltage. If there is a loss of power, charge or replace it; 2. After connecting the power, listen for the sound of the starting motor running; 3. Test whether the startup switch is on or off; 4. Check the wiring between the starter motor and the battery. 1. Charge or replace the battery; 2. Replace the starter motor; 3. Replace the start switch; 4. Tighten the wiring

Abnormal noise during operation (knocking/whistling sound): 1. Loose spark plug; 2. Wear and tear of internal engine components; 3. Malfunction of the cooling fan; 4. Loose components (such as feet and wheels); 5. Spark suppressors are blocked. 1. Check if the spark plug is tightened; 2. Listen to the source of abnormal noise (cylinder, fan, body); 3. Check if the cooling fan is rotating normally; 4. Check if the screws and legs of the machine are loose; 5. Clean the spark suppressor. 1. Tighten the spark plug; 2. Immediately stop the machine and contact after-sales maintenance; 3. Repair or replace the cooling fan; 4. Tighten loose parts; 5. Clean the spark suppressor and replace it if it is damaged

GFCI socket frequently trips. 1. Leakage of connected equipment; 2. Cable damage; 3. GFCI socket failure: 1. Disconnect all devices and connect them one by one for testing; 2. Check if the extension cable is damaged; 3. Replace the known normal socket for testing. 1. Repair or replace the leakage device; 2. Replace damaged cables; 3. Replace GFCI socket


  • HIMA X-CPU 01 processor module
  • ABB TU811 Compact Module Terminal Unit
  • ABB REM610C55HCNN02 motor protection relay
  • ABB IMRIO02 Remote Input/Output Module
  • ABB PFEA113-20 3BSE050092R0 Tension Electronic Equipment
  • ABB UFC911B108 3BHE037864R0108 communication interface
  • ABB REU615E_D Voltage Protection and Control Relay
  • ABB PPD512A10-150000 Controller
  • ABB 5SHX1445H0001 3BHL0000391P0101 3BHB003230R0101 5SXE05-0152 module
  • ABB ICST08A9 Modular Controller
  • ABB 1SVR011718R2500 Analog Converter
  • ABB TB807 3BSE008538R1 module bus terminator
  • ABB PM511 processor module
  • ABB PP877 3BSE069272R2 Industrial Touch Screen
  • ABB EasyLine EL3020 Continuous Gas Analyzer
  • ABB PFEA111 series optical discs
  • ABB DSTD150 I/O connection terminal unit
  • ABB AO801 Analog Output Module
  • ABB PM866 controller
  • ABB 408368B IAM module
  • ABB 3HAC025562-001/06 capacitor unit
  • ABB IEPAS02 power module
  • ABB MSR04X1 serial communication module
  • ABB ICSI16E1 Digital Input Module
  • ABB 3HAC026271-001/DSQC646 Robot Drive
  • ABB SPBRC400 PLC module/rack
  • ABB DSQC355A Analog Input/Output Module
  • ABB PFEA111-65 Tension Controller
  • ABB PM645B processor module
  • ABB FS450R12KE3/AGDR-71C driver combination
  • ABB D2D146-AA28-28 fan
  • ABB PPD513A0E110110 3BHE039724R0E41 Controller
  • ABB PFVO102 PFVO142 3BSE023732R1 Controller Module
  • ABB XFD213A 3BHE02812R0001 Speed Sensor Interface
  • ABB 560PSU02 1KGT011900R0001 power supply device
  • ABB 4LA41100102V1.2 KB2 Broken Board Detector
  • ABB 3BHE023784R1023 PP D113 B01-10-150000 Controller Module
  • ABB 3BHE02294R0103 GFD233A103 Multi functional Control Machine
  • ABB 500MBA02 1MRB150003R003 1MRB200053/M Controller Module
  • ABB 500MBA02 1MRB150003R000/B drive module
  • ABB 500MBA01 1MRB150003R002 1MRB200053/L control card
  • ABB CH-3185 3BHL000986P1006 Controller
  • ABB 969.105EBG 540KKS166899 Controller
  • ABB WE-73-10/CH 64421956 THYRISTOR MODUL
  • ABB 12556917-738385 RADOX GKW cable
  • ABB AF400-30 contactor
  • ABB 103.32125AF 8431160021 connector
  • ABB MTA025 EBG92026 motor terminal adapter
  • ABB 3BHE034863R001 UDC920BE01 Analog Input Module
  • ABB 3BHB009175R0001 Automation Module
  • ABB 3BHB004791R0101 Controller Module
  • ABB HIES208441R interface module
  • ABB SCYC51220 multi-channel pulse trigger board
  • ABB SCYC51213 63911607C multi-channel pulse trigger board
  • ABB SCYC51204 63912476 Transient Absorber Module
  • ABB SCYC51204 63912476C Advanced Pulse Trigger Board
  • ABB TNR 25590 TNR25590 Thermal Overload Relay
  • ABB KTS 011 KTS011 Compact Thermostat
  • ABB KTO 011 KTO011 Compact DIN Rail Thermostat
  • ABB B09261 Electronic Motor Protection Relay
  • ABB LT2005-S/SP19 Programmable Logic Controller
  • ABB RM602024 intermediate relay
  • ABB RM302024 Relay
  • ABB GRBTU-01 3BSE01317R1 DC motor inverter module
  • ABB SZ4127.000 door switch
  • ABB CT-APS.22 1SVR630180R3300 Controller
  • ABB NTAC-02 58967441E pulse encoder
  • ABB BN5930 safety relay
  • ABB UAC389 HIEE410506P104 Industrial Automation Controller
  • ABB UFC921A 3BHE024856P201 industrial control module
  • ABB XVC724BE102 3BHE009017R0102 circuit board
  • ABB LDMUI-01 61320946 High Performance LD MU I/O Module
  • ABB 704.910.4 contact block strip
  • ABB 704.910.5 position switch
  • ABB IEC/EN 60947 contactor
  • ABB E-UK terminal fixing components
  • ABB DIL EM-01-G contactor
  • ABB 90.21 relay
  • ABB 55.34.9.024.0040 Timer Relay
  • ABB 60.13.9.024.0040 power relay
  • ABB KD2406PTBX 24V DC terminal block module
  • ABB PS201PRE fuse module
  • ABB ZM-16-PKZ2 contactor
  • ABB PKZMO-10-T motor protection circuit breaker
  • ABB ZM-40-PKZ2 motor protection stroke block
  • ABB FAZ-C6/1 Miniature circuit breaker
  • ABB FAZ-C10/1 miniature circuit breaker
  • ABB FAZ-C2/1 Circuit Breaker
  • ABB FAZ-C2/2-DC Circuit Breaker
  • ABB FAZ-XHIN11 auxiliary contact equipment
  • ABB Z-NTS neutral wire circuit breaker
  • ABB M3V4-1/0-0 64122088 Input/Output Module
  • ABB NDBU-95C 64008366D control module
  • ABB LWN2660-6EG Automation Control Module
  • ABB LWN2660-6E power supply
  • ABB FPX86-9377-A capacitor
  • ABB MR627 P89627-0-2333400-300-401-601-701 Motor Control Unit
  • ABB 57619414 A 1/2 connector module
  • ABB 57619414 A 2/2 connector module
  • ABB LDMTR-01 63940135F Input/Output (I/O) Module
  • ABB LDSTA-01 63940143B Input/Output (I/O) Module
  • ABB CRBX01 2VAA008424R1 Remote Bus Expander
  • ABB UNITRAL1010 3BHE035301R1002 UNS 0121A-Z, V1 high-performance excitation controller
  • ABB UNITRAL1010 3BHE035301R0001 UNS 0121 A-Z, V1 brushless excitation system
  • ABB CHBX01R 2VAA008575R1 Compact Bus Expander
  • ABB CHBX01L 2VAA008574R1 Bus Expander
  • ABB RMU610 2VAA008425R1 redundant communication module
  • ABB 3BUS208796-501 Communication Module
  • ABB 128057-204 086345-504 multifunctional module
  • ABB HIEE205014R1 HI220856-312/20 UNC4673AV1 redundant controller
  • ABB PP882 3BSE069275R1 Control Panel
  • ABB AC800M PM891 3BSE053240R1 Controller Module
  • ABB AC900F PM904F 3BDH0001002R0001 Controller
  • ABB P8151B communication interface module
  • ABB P8403C controller module
  • ABB P8431 controller module
  • ABB Y129740-002 Analog Module
  • ABB PFTL201D 100KN 3BSE008922R0100 Tension Sensor
  • ABB PPD117A3011 3BHE030410R3011 Excitation Controller
  • ABB PPD512A10-454000 3BHE040375R103E Static Excitation System Unit Module
  • ABB 3BHE046836R0101 GFD563A101 Interface Module
  • ABB 3BHE023784R2530 PPD113B01-25-111000 Controller Module
  • ABB PFCL201CE 50KN 3BSX802939-108 Tension Controller
  • ABB LS4000 diode laser analyzer
  • ABB REM615 HBMBCCAHNB1NN1XD Motor Protection Control
  • ABB 3BHE017628R0002 PPD115A02 SG579989013 Controller Module
  • ABB G2000A5.7ST human-machine interface
  • ABB DKTFM418B 3BHB015651P0001 Controller
