DESCRIPTION

Woodward’s easYview is a family of visualization touch-panels designed for system level visualization. It is customized to provide users a miniSCADA visualization solution for a fleet of gensets controlled by Woodward power management controllers. It is particularly useful for switchgear builders, genset packagers and system integrators as an off-the-shelf HMI option for any application where a secure remote control, monitoring, and visualization are desired such as hospitals, data centers, offshore rigs, landfill, rental, and wastewater gas-topower applications to name a few.

easYview is available in three display sizes keeping the digital core constant but expanding the touch display from small (7”) and medium (10”) to large (15”) screens. Combined with a versatile atvise® SCADA software tool, it makes an excellent multi-device visualization system as device connections (easYgen-XT family and LS-6XT to start with) are already made and data structure is already set-up to help minimize your engineering effort while providing flexibility that is expected from a scalable platform. VNC is supported across the easYview family for detailed connection to single controllers making it ideal not only for commissioning and troubleshooting your PowerGen assets but also for operating and maintaining them later. Additionally, extended operating temperature range combined with strict ingress protection, wide viewing angle, anti-glare treatment and strong Luminance makes it as good for outdoor use as for indoor installations.

Features

Off-the-shelf easYview supports two operation modes,

miniSCADA – multiple easYgen-XT and/or LS-6XT connects via Modbus TCP connection. Data structure prepared for a total 6 devices (3x easYgen-XT and 3x LS-6XT).

remoteHMI – VNC connection to single controllers. Depending upon the easYview screen size (7’, 10’ or 15’), 1, 2 or 4 different remote HMI screens can be shown simultaneously

Engineered to achieve a range of customizations using tunables and online keyboard

Further customization using atvise® SCADA tool under password protection (see AN#37949)

PC mode to free the license from easYview Hardware and perform customizations using a PC

VNC connection also supported in miniSCADA mode for detailed visualization of single controllers

Possible to connect multiple easYview to single controllers in remoteHMI mode

List of available devices in network with a search filter option

Auto connection setting to the last connected device(s)

Customizable remoteHMI connection in full mode, annunciator mode or deactivate

Neutral bezel and field replaceable Logos for customer branding (see AN#37946)

Multi-lingual remoteHMI screens of the connected controller

Detailed explanation of technical specifications

3.1 Power and Environmental Specifications

Parameter specifications

Power supply 24 Vdc ± 20%

Typical intrinsic power consumption is 9W; maximum is 21W

Working environment temperature -20 to 60 ° C (-4 to 140 ° F)

Storage temperature -30 to 70 ° C (-22 to 158 ° F)

Environmental humidity of 95% RH@40 ° C, non condensing

3.2 Mechanical Structure and Protection

Shell: Die cast aluminum alloy front frame, metal shell front, true plane insulation surface

Weight:

7 inches: 2kg (4.44lb)

10 inches: 3.9kg (8.63lb)

15 inches: 4.1kg (13.15lb)

Protection level: IP66 (fastened with fixtures)

Connector: power screw/plug terminal 1.5mm ²

Interface: Ethernet (other interfaces are not used for easyYview applications)

3.3 System Hardware Configuration

Component specifications

CPU NXP ®  ARM ®  Cortex ™- A53 i.MX 8M Mini quad core 1.6 GHz processor

Backup storage FRAM 1 MB

Four core memory: 2 GB DDR4 RAM

Storage of 16GB eMMC

3.4 Display and Touch Screen Features

Parameter easyYview-07-030 easyYview-10-060 easyYview-15-150

Display type WSVGA TFT LCD WXGA TFT LCD FHD TFT LCD

Display size 7 inches 10.1 inches 15.6 inches

Maximum resolution 1024 × 600 1280 × 800 1920 × 1080

Brightness 425 cd/m ² 500 cd/m ² 450 cd/m ²

Maximum color 16M 16M 16M

Viewing angle 170 °/170 ° 170 °/170 ° 170 °/170 °

Backlight lifespan LED; 50000 hours of LED; 50000 hours of LED; 50000 hours

Brightness adjustment support

Dealing with anti glare, anti glare, and anti glare

Contrast ratio 800:1 800:1 800:1

Touch screen features:

Touch point: 10 point touch

Transmittance: above 85%

Pencil hardness: ≥ 7H

Vibration protection: During operation, random vibration of 2 Gms (5 to 500 Hz)

Impact protection: 10G impact during operation (within 11ms)

3.5 Terminal Connection and Application

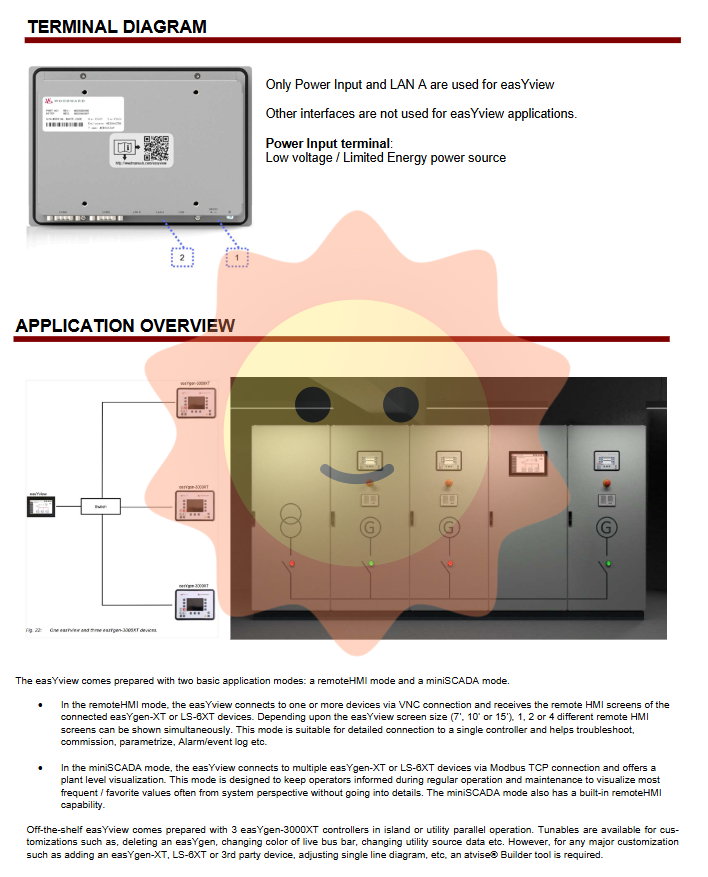

EasyView only uses power input and LAN A interface, and other interfaces are not used for EasyView applications:

Power input terminal: low voltage/limited energy power supply

LAN A: Used for Ethernet communication

Application scenarios and advantages

4.1 Ready to use solutions

The factory pre installed easyYview is equipped with three easyYgen-3000XT controllers, supporting islanding or grid connected operation. The following customization can be achieved through adjustable parameters:

Delete easyYgen controller

Change the color of the live busbar

Change public power data, etc

For major customization needs, such as adding easyYgen XT, LS-6XT or third-party devices, adjusting single line diagrams, etc., the atvise Builder tool is required.

4.2 Advantages of Operation and Maintenance

Simplify wiring: reduce wiring work to access doors and maintain remote high-voltage connections

Ethernet communication: communicate with connected control devices through Ethernet

Security configuration: Provide real-time configuration with the same security level as the connection control device

End user personalization: supports personalized settings for end users

4.3 Environmental adaptability

The wide working temperature range combined with strict protection levels, wide viewing angles, anti glare treatment, and strong brightness make it suitable for both outdoor and indoor installation.

Certification and Compatibility

5.1 Product Certification

CE mark: Complies with European standards

UL certification: meets North American safety standards

FCC Class A: Compliant with the Federal Communications Commission Class A standards in the United States

5.2 Compatibility of Related Products

Easyview is fully compatible with the following Woodward products:

Generator set control easyYgen-3100XT/3200XT-P1 (product specification # 37582)

Generator set control easyYgen-3400XT/3500XT-P1/P2 (product specification # 37583)

Circuit breaker control easyYgen | LS-6XT (product specification # 37913)
