Question 1: What is the core difference between the 240V and 480V models of GA800 frequency converter? How to choose the corresponding model based on motor power and input power when selecting?

Answer:

Core difference:

Power range: The maximum power of the 240V model is 150HP (such as 2360ABM, ND 150HP/360A), and the maximum power of the 480V model is 1000HP (such as 4H12AAM, ND 1000HP/1200A);

Output current: Under the same HP, the current of the 480V model is about half of 240V (such as 10HP ND, 240V is 30A, 480V is 17.5A);

Adaptation scenarios: 240V is suitable for low-power loads (such as small fans and pumps), and 480V is suitable for medium to high-power equipment (such as compressors and large machine tools).

Selection method:

Confirm input power supply: If it is 240V 3-phase, refer to the "240V Drives" table (Table 1); If it is 480V 3-phase, refer to the "480V Drives" table (Table 2);

Match motor power and performance requirements: If the motor requires strong torque (such as lifting equipment), choose the HD model; If you need to drive a larger motor (such as a regular conveyor belt), choose the ND model;

Example: 480V 30HP motor (requiring strong torque), corresponding to HD model 4044ABM (HD 25HP/39A, ND 30HP/44A), with protection code 4044BBM if IP20 is selected.

Question 2: What is the difference between dynamic braking of GA800 frequency converter and regenerative braking of R1000? Which industrial scenarios are they applicable to?

Answer:

Core Differences: | Comparison Dimensions | Dynamic Braking | R1000 Regenerative Braking | | Energy Processing | Energy Consumption through Resistors (Heating) | Energy Feedback to the Grid (Energy Saving) | | Duty Cycle | 3% (3 seconds within 100 seconds) or 10% (10 seconds within 100 seconds) | 25% (25 seconds within 100 seconds, 100% rated current x 60 seconds) | Component Requirements | Braking Resistors+Transistor Modules (Some models have built-in) | R1000 Module+Current Suppression Reactor+Power Coordination Reactor+Fuse | Cost and Complexity | Low Cost, Simple Wiring | High Cost, Additional Kit Required|

Applicable scenarios:

Dynamic braking: suitable for scenarios with low braking frequency and low energy demand, such as ordinary machine tools (intermittent braking), small elevators (short-term deceleration), typical models such as 240V 10HP with R7510 resistor (3% duty cycle);

R1000 regenerative braking: suitable for scenarios with frequent braking and high energy recovery requirements, such as elevators (frequent start stop), centrifuges (continuous deceleration), and winding machines (constant tension control). Typical kits include R1000-480-50HP (compatible with 480V 50HP motors).

Question 3: What are the differences in protective features and installation requirements for Type 1, Type 12, and Type 3R enclosures in the GA800 configuration package? How to choose the appropriate configuration package for outdoor pump stations?

Answer:

Shell characteristics and installation requirements: | Shell type | Protection level | Core protection capability | Installation requirements | Environmental restrictions | | Type 1 | IP30 (after adaptation) | Anti solid foreign object (≥ 2.5mm), anti finger contact | Must be installed in a clean room, can be wall mounted/independently installed, heat sink optional internal/external | Temperature -10~+40 ℃, humidity ≤ 95% (no condensation) | | Type 12 | IP54 (heat sink external) | Anti dust intrusion, anti splashing liquid | Must be installed in a Type 12 independent shell, heat sink external (to avoid dust accumulation) | Temperature -10~+50 ℃, pollution level 2 (IEC 60721-3-3) | | Type 3R | IP54 (weatherproof) Waterproof, anti snowflake, anti solid foreign object (≥ 2.5mm)| Can be installed outdoors, optional 12/18/30 inch independent legs (to prevent ground moisture) | Temperature -10~+50 ℃ (optional 50 ℃ adaptation), avoid direct exposure to sunlight|

Selection plan for outdoor pump station:

Shell selection: Type 3R (weatherproof), model prefix G8C3 (ND) or G8C6 (HD);

Power options: Select 100kAIC circuit breaker (M)+input fuse (F) to meet the overload requirements of the pump station motor;

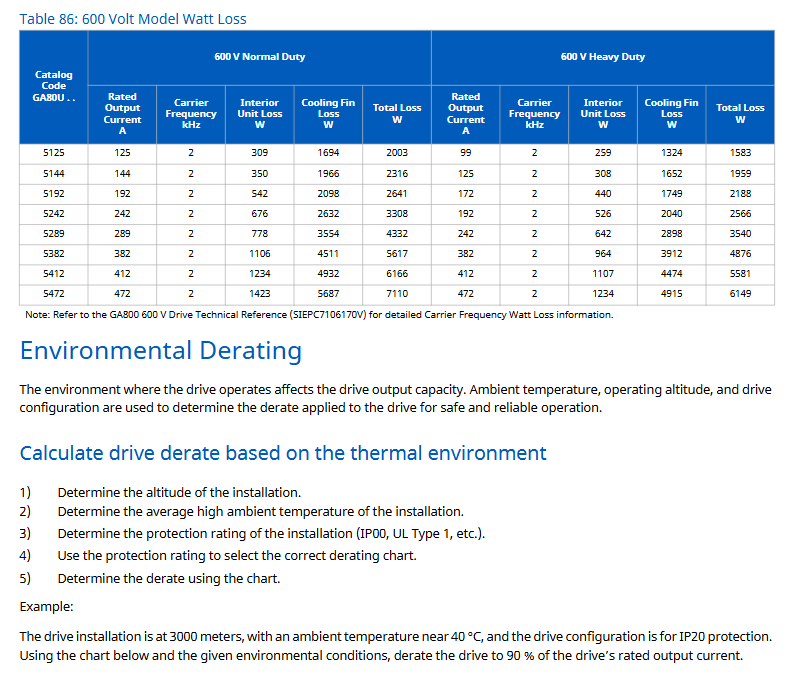

Environmental adaptation: Add S+4 (50 ℃ environmental adaptation)+S+3 (space heater, anti condensation);

Control options: Add T+D (EtherNet/IP communication, remote monitoring of pump station)+Y (Hand/Off/Auto switch, on-site manual control);

Complete model example: G8C3B065PMFTDEYS4 (480V 50HP ND, Type 3R, 100kAIC circuit breaker+EtherNet/IP+50 ℃ adaptation).
