ZYGO ZMI 7702 laser head

ZYGO ZMI 7702 laser head

Basic product information

Product Identification and Distribution: Model ZMI 7702 Laser Head, developed by Zygo Corporation, with Lambda Photometrics Limited responsible for distribution in the UK and Ireland; Document number SS-0079 02/20, copyright belongs to Zygo Corporation in 2020.

Product model and core configuration

Different part numbers (P/N) correspond to different parameters, as shown in the table below:

Part number (P/N), output power, beam diameter, installation method (MOUNT)

8070-0102-31, 8070-0102-32>400 µ W 6 mm 3 mm Narrow (Narrow)

8070-0102-33, 8070-0102-34>400 µ W 6 mm 3 mm Wide

8070-0102-35, 8070-0102-36>525 µ W 6 mm 3 mm Narrow

Key technical parameters

（1） Physical characteristics

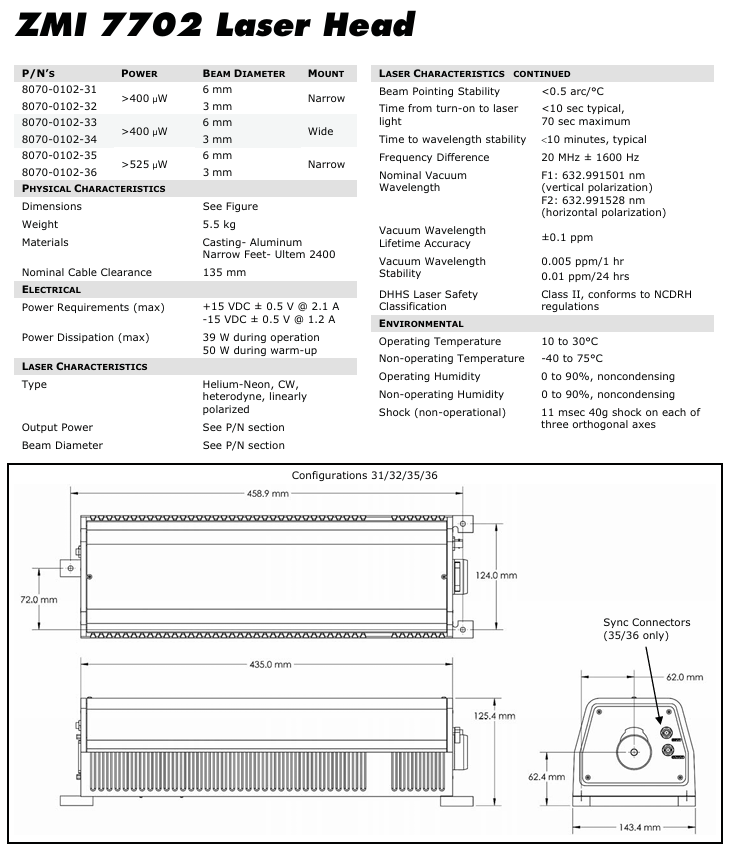

Size and Weight: The weight is 5.5 kg, and the specific external dimensions need to refer to the dimensions shown in the document (Dimensions: See Figure). Different configurations (31/32/35/36 and 33/34) correspond to different size data. For example, the partial dimensions of configuration 31/32/35/36 are 458.9 mm, 124.0 mm, etc., while the partial dimensions of configuration 33/34 are 360.0 mm, 84.0 mm, etc.

Material and cable gap: The casting material is aluminum alloy, and the narrow support foot material is Ultem 2400; The nominal cable clearance is 135 mm.

（2） Electrical parameters

Power requirements (maximum):+15 VDC (allows ± 0.5 V fluctuation, current 2.1 A), -15 VDC (allows ± 0.5 V fluctuation, current 1.2 A).

Power consumption (maximum): 39 W during operation and 50 W during preheating.

（3） Laser characteristics

Laser type: Helium Neon laser, continuous wave (CW), heterodyne, linearly polarized.

Key performance indicators:

Beam pointing stability:<0.5 arc/° C.

Power on to light output time: typical value<10 seconds, maximum value 70 seconds.

Wavelength stabilization time: typical value of 10 minutes.

Frequency difference: 20 MHz ± 1600 Hz.

Vacuum wavelength (vertical polarization F1): 632.991501 nm; Vacuum wavelength (horizontal polarization F2): 632.991528 nm.

Vacuum wavelength lifetime accuracy: ± 0.1 ppm; Vacuum wavelength stability: 0.005 ppm/1 hour, 0.01 ppm/24 hours.

Safety level: DHHS laser safety classification is Class II, in compliance with NCDRH regulations.

（4） Environmental parameters

Environmental conditions, working status, non working status

Temperature 10 to 30 ° C -40 to 75 ° C

Humidity 0 to 90%, non condensing 0 to 90%, non condensing

Impact -40g impact within 11 milliseconds, acting on three orthogonal axes

In addition, only 35/36 products are equipped with Sync Connectors.
