Bently 3500/44M Aeroderivitive GT Vibration Monitor
Bently 3500/44M Aeroderivitive GT Vibration Monitor
Description
The 3500/44M Aeroderivitive GT Vibration Monitor is a four channel instrument designed for aeroderivative gas turbine applications. It:
· Continuously monitors machinery by comparing monitored parameters against configured alarm setpoints to drive alarms
· Communicates essential machine information for both operations and maintenance personnel

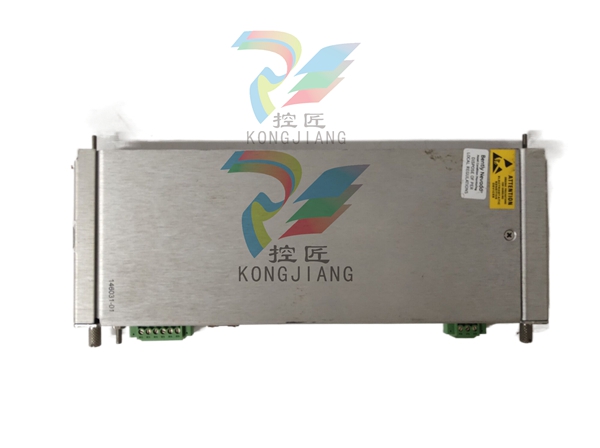

The 3500/44M 's Aero GT I/O modules interface to Velomitor sensors and accelerometers through Bently Nevada interface modules. The monitor uses the Prox/Velom I/O to interface to our . Using the 3500 Rack Configuration Software, you can configure the 3500/44M Aeroderivitive GT Vibration Monitor for the following filter options:
· Signal Integration
· 1X vibration tracking
· Band-pass vibration
EMC
European Community Directive: EMC Directive 2014/30/EU
Standards: EN 61000-6-2 Immunity for Industrial Environments EN 61000-6-4 Emissions for Industrial Environments
Specifications
Signal：Accepts 1 to 4 signals from interface modules (part numbers 86517 and 86497), velomitors and accelerometers
Power consumption：7.7 watts, typical
Aero GT I/O：Greater than 95 kΩ (Proximitor and acceleration inputs)
Prox/Velom I/O and Multimode Prox/Velom I/O：10 kΩ for Prox/Accel 3.5 MΩ for Velomitor
Buffered Transducer Outputs：The front of each monitor has one coaxial connector for each channel.
Output Impedance：550 Ω
Transducer Power Supply：-23 Vdc nominal at 43 mA max
Non-integrated velocity：4 Hz to 5500 Hz (-3 dB)
Integrated velocity：18 Hz to 5500 Hz (-3 dB)
Non-integrated acceleration：4 Hz to 30,000 Hz (-3 dB)
Integrated acceleration：18 Hz to 14,500 Hz (-3 dB)
Dimensions (Height x Width x Depth)：241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)
Weight：0.91 kg (2.0 lb)
