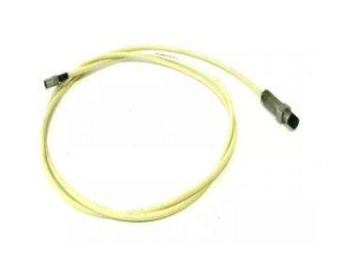

Bently Nevada 10244-27-50-01 Extension Cable

Overview

The Bently Nevada 10244-27-50-01 extension cable is an essential component used in proximity probe measurement systems designed for industrial machinery monitoring and protection. This cable connects the proximity probe to the proximitor sensor, forming a calibrated signal transmission path that enables accurate vibration and displacement measurements.

Proximity probe systems are widely used in the monitoring of rotating machinery such as turbines, compressors, motors, and generators. The extension cable ensures that the electrical signal generated by the probe is transmitted reliably to the signal conditioning electronics within the proximitor sensor.

As part of the Bently Nevada eddy current measurement system, the extension cable plays a critical role in maintaining system calibration and measurement accuracy.

Role in the Proximity Transducer System

A complete proximity transducer system typically consists of three primary components:

• Proximity probe

• Extension cable

• Proximitor sensor

The extension cable serves as the electrical link between the probe and the proximitor sensor. It carries the high-frequency signal generated by the probe coil and ensures minimal signal loss or distortion during transmission.

Maintaining the proper cable length and electrical characteristics is critical because the calibration of the entire measurement system depends on the combined properties of the probe, cable, and sensor.

Operating Principle

In a proximity probe measurement system, the probe tip generates an electromagnetic field. When a conductive object such as a rotating shaft enters this field, eddy currents are induced in the surface of the material.

These eddy currents influence the electrical impedance of the probe coil. The change in impedance alters the signal transmitted through the extension cable to the proximitor sensor.

The proximitor sensor processes this signal and converts it into a voltage output that corresponds to the distance between the probe tip and the target surface. This voltage signal is then used by monitoring systems to evaluate machine condition.

Industrial Applications

The Bently Nevada 10244-27-50-01 extension cable is used in a wide range of industrial machinery monitoring applications. These include environments where continuous vibration monitoring is required for reliable operation.

• Steam turbine monitoring systems

• Gas turbine machinery protection

• Centrifugal compressor monitoring

• Large motor vibration analysis

• Generator shaft displacement monitoring

• Pump rotor vibration detection

In these applications, the extension cable ensures consistent signal transmission within the monitoring system.

Signal Integrity and System Calibration

Accurate vibration monitoring depends heavily on maintaining signal integrity throughout the measurement system. The extension cable must preserve the electrical properties necessary for the eddy current sensing process.

Bently Nevada extension cables are engineered to maintain consistent impedance and shielding characteristics. This design minimizes electrical noise and ensures reliable communication between system components.

Proper cable selection is also necessary to maintain system calibration. Each proximity probe system is calibrated based on the total cable length connecting the probe to the proximitor sensor.

Reliability in Industrial Environments

Industrial monitoring systems often operate in challenging environments that include high temperatures, vibration, and electromagnetic interference. The extension cable used in these systems must be designed to perform reliably under such conditions.

The Bently Nevada 10244-27-50-01 extension cable is constructed with materials that provide durability and long-term operational stability. The cable design helps maintain measurement accuracy while protecting the signal from environmental interference.

Reliable signal transmission is essential for ensuring that machine protection systems receive accurate data about the condition of rotating equipment.

Importance for Condition Monitoring

Modern industrial facilities rely on condition monitoring systems to maintain operational efficiency and reduce the risk of unexpected machinery failures. Proximity probe systems provide essential vibration and displacement data that support predictive maintenance strategies.

The extension cable contributes to this process by ensuring that the measurement signal reaches the monitoring electronics without degradation. This allows engineers to analyze machine behavior and detect abnormal conditions at an early stage.

Monitoring parameters such as shaft vibration amplitude and rotor position helps operators identify issues such as imbalance, misalignment, and bearing wear.

Integration with Monitoring Systems

Signals transmitted through the extension cable are processed by proximitor sensors and delivered to machinery protection systems. These systems may include dedicated monitoring modules used in industrial automation and equipment protection platforms.

The information collected by these systems is used for alarm generation, trend analysis, and predictive maintenance programs designed to improve machine reliability.

Conclusion

The Bently Nevada 10244-27-50-01 extension cable is an important component within proximity probe measurement systems used for rotating machinery monitoring. By ensuring reliable signal transmission between the probe and proximitor sensor, the cable helps maintain the accuracy and stability of vibration monitoring systems.

Its role within the proximity transducer system supports the continuous monitoring of critical industrial equipment, enabling operators to detect mechanical problems early and maintain safe and efficient machinery operation.
