ABB ACH550 Inverter Maintenance

2008 PANEL LOSS: Control panel communication lost (may shut down if in local control mode).

2010 MOT OVERTEMP: Motor thermal model warning, approaching trip.

2018 PID SLEEP: PID sleep function activated, motor stopped.

2021/2022 START ENABLE 1/2 MISS: Start enable signal missing → Check digital input wiring.

E-Clipse Bypass Special Operation and Recovery

7.1 Drive Link Recovery Process

If accidentally changing the communication parameters of the drive results in a "Drive Link Fault" or "Drive Setup" alarm, please follow these steps in sequence:

Set parameter 9802=STD MODBUS on the ACH550 drive control panel.

Set parameter 9902 to E-CLIPSE (select bypass macro).

Cut off and power on again.

If the fault persists, manually confirm the following parameter values:

1001 = Comm，1002 = Comm，1601 = Comm，1608 = Comm

5303 = 76.8 kb/s，5304 = 8 EVEN 1，5305 = DCU PROFILE

5310 = 103，5311 = 104

Then power on again.

7.2 Basic control of bypass mode

Drive Select/Bypass Select button: Select whether the motor is driven by a frequency converter or a power frequency bypass.

Hand/Auto/Off keys: Manual/Auto/Stop.

Enabled LED: Green constant light indicates that both the safety interlock and operation enable are closed; Flashing indicates that there is a start command but the run enable is not closed; Red indicates that the safety interlock is disconnected.

Auto Transfer: When the frequency converter fails, the system automatically switches to the bypass (if parameter 1608 allows). At this moment, the Bypass Selected LED is flashing.

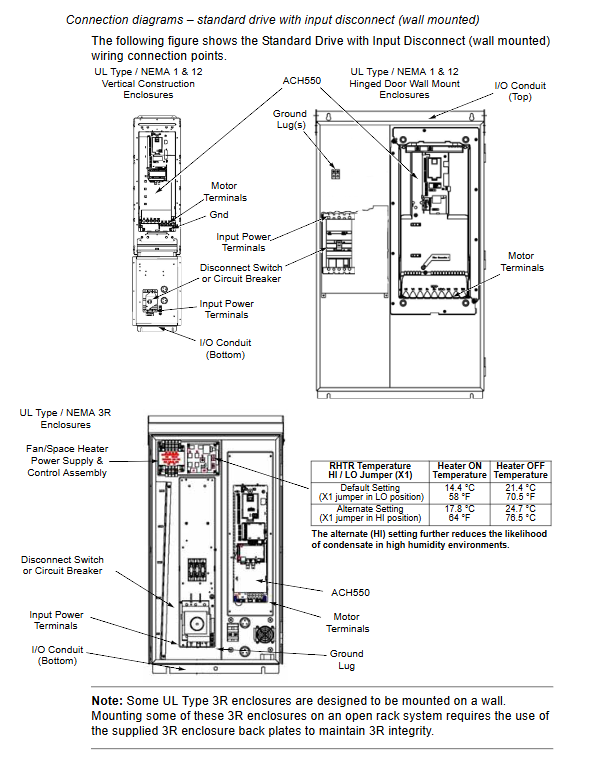

Configuration with isolation switch (PCR/PDR)

For situations where on-site maintenance of circuit breakers is required, ACH550 can provide a complete set of integrated isolation switches or circuit breakers. The operating handle can be padlocked in the OFF position. Attention should be paid during installation:

The terminal torque of the disconnect switch or circuit breaker is small (some are 7 lb in), do not overtighten.

The UL type 3R casing is equipped with a heater, and the starting temperature is selected through jumper X1 (HI position is suitable for high humidity environments to reduce condensation).

Filter maintenance: There is a removable filter at the bottom of the wall mounted UL 12 enclosure; There is an air inlet filter on the floor standing shell door and an exhaust filter on the top. Install with the white side facing outward.

Startup Assistant and Parameter Settings

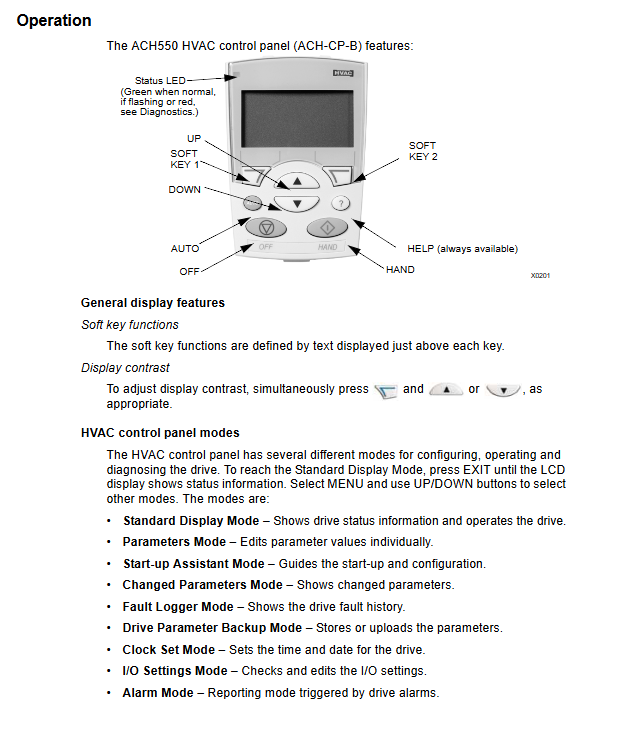

When powered on for the first time, the control panel will display a welcome screen, providing two options:

Spin Motor: Running the motor without complete debugging (used for debugging fans, etc.). The motor speed is limited to 1/3 to 2/3 of the maximum speed.

Commission Drive: Start Up Assistant, guiding users to input motor nameplate data (parameters 9905... 9909), set PID, I/O configuration, etc.

If you do not use an assistant, you can directly enter Parameters Mode to manually modify parameters. It is recommended to set at least the following parameters:

9905 motor rated voltage

9906 motor rated current

9907 motor rated frequency

9908 motor rated speed

9909 motor rated power

2002 maximum speed (or 2008 maximum frequency)

2007 minimum frequency (if required)

Parameter group 13 (analog input) and group 14 (relay output) are defined according to the on-site wiring.

Practical suggestions for replacing old frequency converters

When ACH550 itself is discontinued or other brands of faulty frequency converters need to be replaced on site, the following strategies can be adopted:

Confirm motor parameters: voltage, current, frequency, and power must match.

Check the control interface: ACH550 provides 2 analog inputs (0-10V/4-20mA), 6 digital inputs (PNP/NPN can be connected), 2 analog outputs, and 3 relay outputs. If the original system requires more I/O, expansion modules can be added.

Communication protocol: ACH550 supports Modbus RTU (RS485), BACnet MS/TP, N2, FLN, etc. No additional gateway is required, just set the protocol and baud rate.

Bypass requirement: If the original system requires "automatic fault bypass", the E-Clipse Bypass model must be selected. Ordinary UH models do not have this function.

Mechanical installation: ACH550 rack sizes from R1 to R8 have corresponding hole templates. When replacing, pay attention to the original installation holes (the R1/R2 holes of ACH400 and ACH550 are the same, and the inner holes on the top row of R3/R4 are compatible).

Wiring: It is necessary to separate the power and control conduits; The input reactor or filter can be reused, but the compatibility of inductance should be confirmed.

Parameter backup: Use the Drive Parameter Backup Mode in the control panel to save parameters to the panel, or backup them through the DriveWindow software. Directly write parameters to the new drive during recovery to save debugging time.
