ABB ACS380 Inverter Complete Guide

Troubleshooting: The frequency converter reports "brake resistor overload" (fault code 7110). The common reason is that braking is too frequent, causing the resistance temperature to exceed the protection threshold. Solution:

Extend deceleration time and reduce braking energy.

Increase the power level of the braking resistor (choose a higher PBRcont model).

Check whether the resistance wiring is short circuited or open circuited (measure whether the resistance value matches the nominal value).

EMC filtering and cable length

7.1 EMC Category

C1: The first environment (residential area) has unlimited distribution. An external filter is required (see table on page 27).

C2: The first environment is limited in distribution. The internal filter (ACS380-042x) is sufficient, with a maximum motor cable length of 10m (400V)/30m (1-phase R0).

C3: Unrestricted distribution in the second environment (industrial zone). The internal filter ACS380-040x is suitable, with a maximum cable length of 30m for 400V and 10m for 1-phase 230V.

7.2 Actual Installation Suggestions

The motor cable must use a symmetrical shielded cable (such as MCMK or similar), with the shielding layer grounded at both ends (frequency converter side and motor side).

Control cables and power cables should be laid separately (with a minimum spacing of 30cm).

If the cable length exceeds 50m, it is recommended to install an output du/dt filter or sine wave filter to prevent damage to the motor insulation.

Interference issue: Adjacent devices are affected by high-frequency noise from the frequency converter. Firstly, confirm whether the EMC level selection of the frequency converter meets the installation environment (C1 or C2 must be used in residential areas). Then check the grounding system: the PE terminal of the frequency converter must be directly connected to the system grounding point, avoiding indirect grounding through guide rails or chassis. Adding ferrite magnetic rings (such as Fair Rite 0431177081) to control cables can effectively suppress common mode interference.

Cooling, fuse and circuit breaker selection

8.1 Cooling requirements

ACS380 adopts a temperature controlled fan (except for R0 chassis which uses natural convection). The heat loss and air volume of each chassis are as follows (taking 400V as an example):

R0: Heat dissipation of 44W, air volume of 15 m ³/h, noise of 51 dBA.

R4: 757W heat dissipation, air volume 228 m ³/h, noise 69 dBA.

During installation, it is necessary to ensure a minimum ventilation space of 50mm and an inlet air temperature not exceeding 50 ° C. If there is severe dust in the environment, it is recommended to install filter cotton at the inlet of the cabinet and regularly clean the cooling fins of the frequency converter.

8.2 Input Protection

Recommend using ABB S200 series miniature circuit breakers or gG type fuses. For example, ACS380-04xx-050A-4 (R4, 50A output) requires UL class T 100A fuses or S203P-Z 63A circuit breakers (to be confirmed with ABB). Manual motor protectors (MMP) can also be used, but they must comply with thermal overload and short circuit protection characteristics.

Common error: The selected circuit breaker has a rated current that is too low, causing the frequency converter to trip when starting normally. At the moment of starting the frequency converter, there will be a charging surge current. The circuit breaker trip curve should be selected as C or D type (in the S200 series, P characteristic is C type?)? In the original text, S203P-B is a B characteristic used for resistive loads; Actually, C or K characteristics should be selected. According to the table, S201P-B and S203P-B were used in 1-phase, and the B characteristic is prone to misoperation. It is recommended to consult ABB for confirmation. In experience, the rated current of a circuit breaker should be 1.5 to 2 times the input current of the frequency converter.

On site debugging and tools

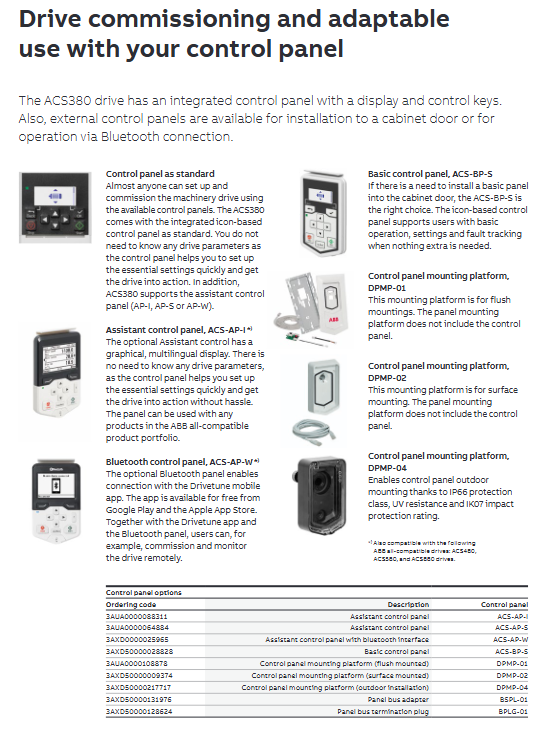

9.1 Control Panel

Integrated control panel (standard): Icon style menu, basic settings can be completed without memorizing parameters.

Assistant Control Panel ACS-AP-I/- S/- W: Graphic multilingual display, supports Bluetooth (AP-W) connection to Drivetune mobile application.

Panel installation platform DPMP-01/02/04: The control panel can be installed on the cabinet door, and DPMP-04 supports IP66 outdoor installation.

9.2 PC Tools

Drive composer: Free version (Entry) supports startup, backup, and export of fault logs; The Pro version provides custom parameter windows, logic diagram monitoring, and more.

Cold configuration adapter CCA-01: When the inverter is not powered on, power is supplied through the PC USB port and parameters are configured, suitable for large-scale pre setting.

9.3 Adaptive Programming

ACS380 comes with a built-in standard feature - Adaptive Programming. Users can customize the logic of the frequency converter through functional blocks and sequential programming, such as dynamically switching PID settings based on analog input values, or implementing simple logic interlocks to replace small PLCs.

Debugging technique: When the frequency converter is not running normally but there are no fault codes, use the "parameter recorder" function of Drive Composer to record signals such as speed setting, actual speed, current, torque, etc., with a time resolution of up to 2ms. Through waveform analysis, problems such as mechanical resonance, PID oscillation, or load mutation can be discovered.
