Edwards EST-3 Life Safety System Integration and Troubleshooting Guide

Introduction: An integrated platform that goes beyond traditional fire alarm systems

EST-3 is the flagship life safety platform launched by Edwards (affiliated with UTC Fire&Security). It is not a single fire alarm controller, but an integrated system that can simultaneously handle fire alarms, intrusion security, access control, and Mass Notification/Emergency Communications (MNEC). This platform was the first to pass the UL 2572 mass notification standard certification in 2010, marking its leading position in the field of emergency communication.

For engineers who need to upgrade old fire alarm systems (such as early EST products or other brands) or build new comprehensive life safety systems, understanding the distributed intelligence, network survivability, audio multicast capabilities, and maintenance points of the Signature series detectors of EST-3 can significantly improve system reliability and reduce full lifecycle costs. This article will provide a detailed engineering technical guide from multiple dimensions, including system architecture, core components, audio integration, network troubleshooting, equipment maintenance, and replacement strategies.

Distributed intelligent architecture: inherently capable of survival

2.1 Non centralized decision-making

Traditional fire alarm systems typically use a central controller to poll all detectors. Once the central processor or backbone network fails, the entire system may be paralyzed. EST-3 adopts a distributed intelligence architecture: each intelligent detector, module, and panel is equipped with a built-in microprocessor, which can independently determine the status of fire alarms, faults, or pre alarms, and only upload conclusions (rather than raw data) to the main control panel. This not only reduces network load, but more importantly, when a node is disconnected from the network, it can still independently complete its alarm and linkage functions within its control area.

Engineering advantage: In large industrial parks or factories, if a fiber optic cable is accidentally cut, EST-3 will automatically divide the network into multiple independent subnets based on the location of the fault, and the panels within each subnet will continue to work normally without losing protection due to global communication interruption. This feature has been validated in UL certification testing.

2.2 Token Ring Network and Multi Priority

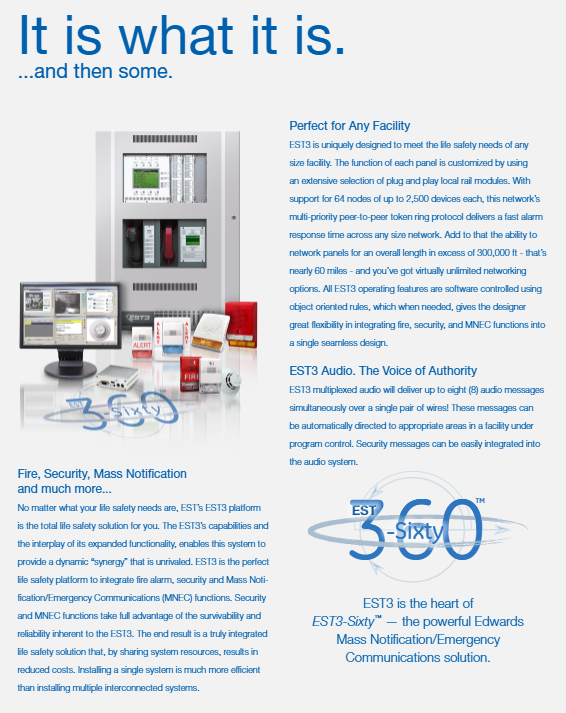

The network protocol of EST-3 is Multi priority Peer to Peer Token Ring. The entire loop can connect up to 64 nodes (each node can be a main control panel or expansion panel), and each node can support up to 2500 address points, with a total system address capacity of up to 160000. The total length of the network can exceed 300000 feet (approximately 60 miles), making it suitable for facilities of almost any size - from single office buildings to multinational industrial parks.

The natural advantage of token ring lies in deterministic latency: high priority tokens (such as fire alarms) always take priority over low priority tokens (such as device status queries), ensuring that alarm information is transmitted to all nodes that require action within 3 seconds. Compared to the uncertainty of Ethernet CSMA/CD, token ring is more reliable in life safety applications.

Network topology recommendation: In order to leverage redundancy capabilities, physical cabling should adopt a closed loop (rather than a star). Each node's ring in and ring out ports use cables of different colors to distinguish directions. Even if there is an open circuit, the loop will automatically become an open bus, and all nodes can still communicate; When two open circuits occur, the system splits into two independent subnets, each continuing to operate.

Audio system: "Command Voice" for eight channel synchronous broadcasting

3.1 Multiplexing Audio Technology

The audio system of EST-3 is one of its core highlights. It can simultaneously transmit 8 independent audio messages through a pair of ordinary twisted pair cables. Each message can be automatically routed by the system to a specific area based on the type of event (fire alarm, evacuation, security alarm, severe weather warning, etc.). For example:

Zone A (production workshop) plays the message of "fire evacuation";

Zone B (office building) plays the "shelter on site" instruction;

Zone C (parking lot) plays a "security intrusion" warning;

At the same time, the D area (monitoring room) plays the prompt "system testing".

All audio messages are encoded in digital form and decoded at the receiving end before being amplified by a power amplifier to drive the speaker. This avoids the huge amount of work required for traditional audio systems to lay independent cables for each partition.

3.2 Deep integration with Mass Notification (MNEC)

EST‑3‑Sixty ™  It is Edwards' large-scale notification/emergency communication solution based on the EST-3 platform. It supports:

Pre recorded audio messages: can be recorded from the microphone station or uploaded through PC tools.
