Complete Guide to ABB ACS380 Inverter

Introduction: Fully compatible transmission designed for machine manufacturers

The ABB ACS380 series frequency converter is designed specifically for the field of machine manufacturing, with a power range covering 0.25kW to 22kW (three-phase 380-480V system) and supporting single-phase 200-240V power supply. It belongs to ABB's fully compatible transmission product portfolio (sharing the same architecture and user interface as ACS480, ACS580, ACS880), aiming to provide the dual advantages of reliable performance and easy integration. Whether it is an induction motor, permanent magnet motor, or synchronous reluctance motor, ACS380 can achieve precise speed/torque control and has a built-in safety torque cutoff (STO) function. This article will cover selection, technical parameters, safety functions, communication expansion, braking resistance EMC、 Provide engineers with a highly practical guide in terms of cooling and protection, troubleshooting, and tool usage.

Selection core: Understanding ordering codes and power levels

2.1 Basic Code Composition

The model naming of ACS380 follows a fixed format, for example:

ACS380-042S-02A6-4: Standard Type (S), Pluscode option cannot be added.

ACS380-042C-02A6-4+K475+L535: configuration type (C), which can be flexibly selected and equipped with functions through pluscode.

Meaning of each field in the code:

042: EMC filtering level (040=C3 low filtering (400V)/C4 (230V); 042=C2 high filtering).

S or C: Standard or configuration type.

02A6: Output current (2.6A).

4: Voltage level (1=single-phase 230V, 4=three-phase 400V).

Selection trap: Although the standard model (S) has a lower price, it cannot add fieldbus options (only built-in Modbus RTU) and has fixed I/O. If PROFINET, EtherNet/IP, or PROFIsafe safety features are required, the configuration type (C) must be selected, and the required communication module (such as+K492 corresponding to PROFINET IO) must be specified through pluscode when ordering.

2.2 Interpretation of Power and Current Ratings

According to the data table, ACS380 offers two load levels:

Light duty: allows 110% overload for 1 minute/10 minutes, suitable for variable torque loads (fans, water pumps).

Heavy duty: allows 150% overload for 1 minute/10 minutes, suitable for constant torque loads (conveyors, extruders).

For example, three-phase 400V model ACS380-04xx-05A6-4:

Rated output current I2=5.6A, typical light load power of 2.2kW, heavy load power of 1.5kW.

The maximum output current I2 max is 7.2A (lasting for 2 seconds, then subject to temperature limitation).

Engineering experience: When selecting, it is necessary to choose the heavy or light load level according to the actual load cycle. If the application frequently starts and stops or there is an impact load (such as a compressor or reciprocating compressor), a margin of 120% of the overload current should be reserved to avoid overheating and tripping of the frequency converter.

In depth analysis of technical specifications

3.1 Motor Control Performance

Open loop speed control: The static accuracy is 20% of the rated slip of the motor, and the dynamic accuracy is 1% of a second at 100% torque step.

Closed loop control (requires HTL/TTL encoder feedback module BTAC-02): static accuracy of 0.1% rated speed, dynamic accuracy of<1% second.

Torque control: Torque step rise time<10ms (rated torque), nonlinearity ± 5%.

For applications that require precise control of near zero speed, such as winding and lifting, open-loop vector control can meet most requirements. But for active loads (such as sudden tightening of the crane rope after loosening), it is strongly recommended to install encoder feedback and use closed-loop torque control.

3.2 Environmental Tolerance

Operating temperature: -10 ° C to+50 ° C, no need to reduce capacity; The maximum temperature to be reduced is 60 ° C (R0 chassis has a maximum temperature of 50 ° C).

Altitude: 400V models can reach up to 4000m (with a capacity reduction of over 1000m), while 200V models can reach up to 2000m.

Protection level: IP20 as standard, optional UL Type 1 kit.

Three proof coating: circuit board with coating, control panel covered with foil, suitable for humid and dusty environments.

Troubleshooting: The frequency converter frequently reports "overheating" (fault code 4210) in high temperature environments. Firstly, check if the ambient temperature exceeds 50 ° C and confirm that the cooling fan is operating normally (audible fan sound or measurement of 24V fan power supply). If there is severe dust accumulation inside the chassis, the power should be turned off and compressed air should be used to clean the radiator channel from bottom to top. If necessary, increase cabinet ventilation or install air conditioning.

3.3 Switching frequency and derating

The default switching frequency is 4kHz, which can be adjusted within the range of 1-12kHz. Increasing the switching frequency can reduce motor noise, but it will lead to increased heating of the frequency converter, requiring a reduced capacity for use. For every 1kHz increase, the output current capability decreases by approximately 5% -10%. Please refer to the hardware manual (document code 3AXD50000029274) for detailed derating curves.

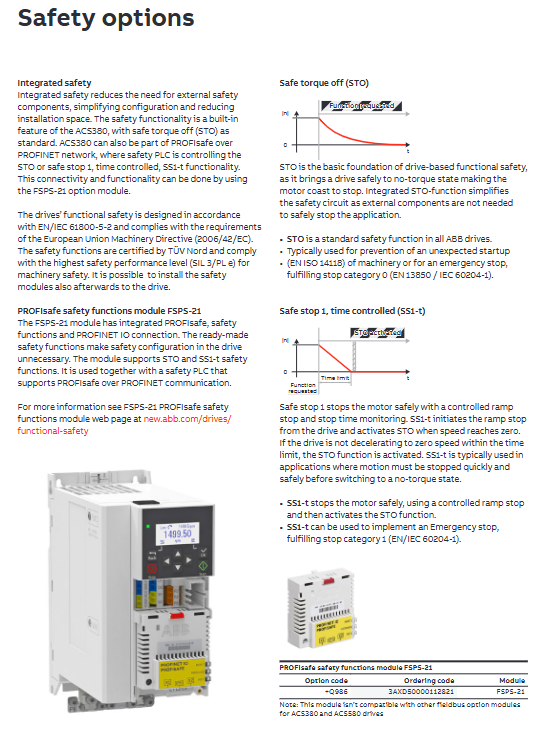

Safety features: STO, SS1-t, and PROFIsafe

4.1 Built in Safety Torque Shutdown (STO)

All ACS380 come standard with STO and comply with IEC 61800-5-2, ISO 13849-1 PL e/Cat.3, and SIL3. STO cuts off the drive signal of the inverter output stage, causing the motor to enter a torque free state and stop sliding freely. Typical application: To prevent accidental start-up (compliant with EN ISO 14118) or emergency stop (Class 0 stop).

Wiring points: The STO terminals (X1:5 and X1:6) are dual channel safety inputs. During normal operation, both channels require 24V DC. Any loss of 24V or inconsistency of two signals for more than 1 second will trigger a safety stop. A common mistake made on site is that only one channel was connected, resulting in the inability to close the safety circuit. The two normally open contacts of the safety relay or safety PLC must be connected to the STO input terminal separately.

4.2 Safety Stop Time Control (SS1-t)

SS1-t first decelerates according to the set slope, and automatically activates STO when the speed drops to zero. If the deceleration does not reach zero within the specified time, STO will be triggered directly. Compliant with Class 1 stop (EN/IEC 60204-1). SS1-t can be triggered by the safety PLC through PROFIsafe safety communication (using FSPS-21 module), or directly triggered through hardware terminals (parameters need to be set).

4.3 PROFIsafe module FSPS-21

Option+Q986 provides FSPS-21 module, supporting both PROFINET IO and PROFIsafe. This module is directly installed on the side of the frequency converter (without occupying the I/O option slot), and the safety PLC sends STO or SS1-t commands through PROFIsafe, without the need for hard wired safety circuits. Attention: FSPS-21 is not compatible with other fieldbus modules (such as FPNO-21) and can only choose one of the two.

Troubleshooting: Unable to reset after triggering the safety function. Check the status word of the safety PLC and confirm that the safety request has been revoked. Then check if the frequency converter parameter 31.22 (STO status) is "OK". If the parameter displays' Channel mismatch ', check if the flat cable between FSPS-21 and the frequency converter is loose. Power off and restart can clear temporary faults, but hardware issues require module replacement.

Communication and I/O Expansion: Standard vs Configuration

5.1 Built in interface of standard type (S)

4 DI+2 DI/DO (configurable)+2 AI+1 AO+1 relay output+STO.

Built in Modbus RTU (EIA-485 terminal).

Side options include BREL-01 (with 4 additional relay outputs), BAPO-01 (external 24V power supply), and BTAC-02 (HTL/TTL encoder+external 24V).

5.2 Flexible selection of configuration type (C)

The configuration type substrate only retains 2 DI+1 RO+STO, and all other I/O and communication are implemented through options:

Front end I/O options: BIO-01 provides 3 DI+1 DO+1 AI (used in conjunction with fieldbus).

Side options (one out of three): BTAC-02 (encoder+external 24V supply), BREL-01 (4 relays), BAPO-01 (external 24V supply).

Fieldbus options (one must be selected): see the table below.

Option code protocol module model

+K451 DeviceNet FDNA-01

+K454 PROFIBUS DP FPBA-01

+K457 CANopen FCAN-01

+K469 EtherCAT FECA-01

+K470 Ethernet POWERLINK FEPL-02

+K490 EtherNet/IP FEIP-21

+K491 Modbus/TCP FMBT-21

+K492 PROFINET IO FPNO-21

Engineering Tip: When selecting, if PROFIsafe safety communication is required, the combination of+K492 (PROFINET IO) and+Q986 (FSPS-21) must be selected, and other buses cannot be used. In addition, all fieldbus modules will automatically configure upon the first power on, and the PLC can remotely complete the variable frequency drive parameter settings, greatly reducing debugging time.

Common communication failure: PLC cannot establish a connection with the frequency converter. Firstly, check if the LINK indicator light on the bus module is constantly on. For PROFINET, use the "Device Topology" feature of TIA Portal to confirm that the device name is consistent with the frequency converter settings (default is empty at the factory and needs to be written using Drive Composer). For EtherNet/IP, check if the IP address matches the one configured in the PLC and confirm that the EDS file has been imported correctly.

Selection and Application of Braking Resistors

ACS380 comes standard with a built-in brake chopper (available on all models except for the minimum power model). The braking resistor needs to be externally connected.

6.1 Key Parameters

Rmin: The minimum allowable resistance value. Below this value will cause overcurrent damage to the chopper.

Rmax: The maximum resistance value that ensures continuous braking power (PBRcont). The larger the resistance, the smaller the braking power.

PBRcont: Continuous braking capability (can withstand unlimited time).

PBRmax: Maximum braking capacity (1.5 times PBRcont within a 1-minute/10 minute cycle).

For example, three-phase 400V model ACS380-04xx-07A2-4 (R1 chassis):

Rmin=53Ω，Rmax=139Ω， PBRcont=2.2kW，PBRmax=3.3kW。

6.2 Selection Example

If a braking power of 2.5kW is required for 5 seconds, every 10 seconds, the average braking power=2.5kW × 5/10=1.25kW, which is less than PBRcont=2.2kW and meets the requirement. The peak power of 2.5kW is less than PBRmax=3.3kW, which also meets the requirement. We recommend using Danohm resistors provided by ABB (such as CBR-V 330 D T 406 78R UL). If a third-party resistor is used, it must be ensured that the resistance value is ≥ Rmin and ≤ Rmax, and the heat capacity (Joule integral) of the resistor must be calculated.

Troubleshooting: The frequency converter reports "brake resistor overload" (fault code 7110). The common reason is that braking is too frequent, causing the resistance temperature to exceed the protection threshold. Solution:

Extend deceleration time and reduce braking energy.

Increase the power level of the braking resistor (choose a higher PBRcont model).

Check whether the resistance wiring is short circuited or open circuited (measure whether the resistance value matches the nominal value).

EMC filtering and cable length

7.1 EMC Category

C1: The first environment (residential area) has unlimited distribution. An external filter is required (see table on page 27).

C2: The first environment is limited in distribution. The internal filter (ACS380-042x) is sufficient, with a maximum motor cable length of 10m (400V)/30m (1-phase R0).

C3: Unrestricted distribution in the second environment (industrial zone). The internal filter ACS380-040x is suitable, with a maximum cable length of 30m for 400V and 10m for 1-phase 230V.

7.2 Actual Installation Suggestions

The motor cable must use a symmetrical shielded cable (such as MCMK or similar), with the shielding layer grounded at both ends (frequency converter side and motor side).

Control cables and power cables should be laid separately (with a minimum spacing of 30cm).

If the cable length exceeds 50m, it is recommended to install an output du/dt filter or sine wave filter to prevent damage to the motor insulation.

Interference issue: Adjacent devices are affected by high-frequency noise from the frequency converter. Firstly, confirm whether the EMC level selection of the frequency converter meets the installation environment (C1 or C2 must be used in residential areas). Then check the grounding system: the PE terminal of the frequency converter must be directly connected to the system grounding point, avoiding indirect grounding through guide rails or chassis. Adding ferrite magnetic rings (such as Fair Rite 0431177081) to control cables can effectively suppress common mode interference.

Cooling, fuse and circuit breaker selection

8.1 Cooling requirements

ACS380 adopts a temperature controlled fan (except for R0 chassis which uses natural convection). The heat loss and air volume of each chassis are as follows (taking 400V as an example):

R0: Heat dissipation of 44W, air volume of 15 m ³/h, noise of 51 dBA.

R4: 757W heat dissipation, air volume 228 m ³/h, noise 69 dBA.

During installation, it is necessary to ensure a minimum ventilation space of 50mm and an inlet air temperature not exceeding 50 ° C. If there is severe dust in the environment, it is recommended to install filter cotton at the inlet of the cabinet and regularly clean the cooling fins of the frequency converter.

8.2 Input Protection

Recommend using ABB S200 series miniature circuit breakers or gG type fuses. For example, ACS380-04xx-050A-4 (R4, 50A output) requires UL class T 100A fuses or S203P-Z 63A circuit breakers (to be confirmed with ABB). Manual motor protectors (MMP) can also be used, but they must comply with thermal overload and short circuit protection characteristics.

Common error: The selected circuit breaker has a rated current that is too low, causing the frequency converter to trip when starting normally. At the moment of starting the frequency converter, there will be a charging surge current. The circuit breaker trip curve should be selected as C or D type (in the S200 series, P characteristic is C type?)? In the original text, S203P-B is a B characteristic used for resistive loads; Actually, C or K characteristics should be selected. According to the table, S201P-B and S203P-B were used in 1-phase, and the B characteristic is prone to misoperation. It is recommended to consult ABB for confirmation. In experience, the rated current of a circuit breaker should be 1.5 to 2 times the input current of the frequency converter.

On site debugging and tools

9.1 Control Panel

Integrated control panel (standard): Icon style menu, basic settings can be completed without memorizing parameters.

Assistant Control Panel ACS-AP-I/- S/- W: Graphic multilingual display, supports Bluetooth (AP-W) connection to Drivetune mobile application.

Panel installation platform DPMP-01/02/04: The control panel can be installed on the cabinet door, and DPMP-04 supports IP66 outdoor installation.

9.2 PC Tools

Drive composer: Free version (Entry) supports startup, backup, and export of fault logs; The Pro version provides custom parameter windows, logic diagram monitoring, and more.

Cold configuration adapter CCA-01: When the inverter is not powered on, power is supplied through the PC USB port and parameters are configured, suitable for large-scale pre setting.

9.3 Adaptive Programming

ACS380 comes with a built-in standard feature - Adaptive Programming. Users can customize the logic of the frequency converter through functional blocks and sequential programming, such as dynamically switching PID settings based on analog input values, or implementing simple logic interlocks to replace small PLCs.

Debugging technique: When the frequency converter is not running normally but there are no fault codes, use the "parameter recorder" function of Drive Composer to record signals such as speed setting, actual speed, current, torque, etc., with a time resolution of up to 2ms. Through waveform analysis, problems such as mechanical resonance, PID oscillation, or load mutation can be discovered.

Common fault codes and solutions (on-site experience summary)

Fault code description, common causes, and solutions

2210 overcurrent output short circuit, motor insulation damage, and short acceleration time. Check the insulation resistance of the motor cable; Extend acceleration time; Check if the machinery is stuck

2310 overvoltage deceleration time is too short, the braking resistor is not connected or the resistance value is too high, which prolongs the deceleration time; Check the wiring and resistance of the braking resistor; Install brake chopper (already built-in)

4210 Overheating environment with high temperature, fan failure, and clogged radiator. Clean the radiator; Confirm the rotation of the fan; Reduce the switching frequency or reduce the capacity for use

Check if the 5090 motor rotates freely due to excessive load and mechanical lock; Increase the delay time of stall protection

7110 brake resistor overload braking is too frequent, and the power of the resistor is insufficient to reduce the braking utilization rate; Replace with a higher power resistor; Extend deceleration time

7510 STO channel fault safety circuit wiring error, FSPS-21 communication loss. Check if the voltage of the two STO channels is consistent; View parameter 31.22; Check PROFIsafe connection

F504 fieldbus timeout communication cable breakage, PLC stop checking bus connector; Confirm the operation of the PLC program; Increase communication watchdog time
