ABB PSTX/PSR Soft Starter Field Troubleshooting and Maintenance Guide

Misconceptions, consequences, and correct practices

The light load pump uses PSR instead of PSE, which cannot stop the torque. For severe water hammer pump applications, PSE or PSTX are preferred

During the start-up process of a heavy-duty fan using Class 10 overload level, the overload trip is calculated to determine the start-up time. If it exceeds 15 seconds, Class 20 or 30 should be selected

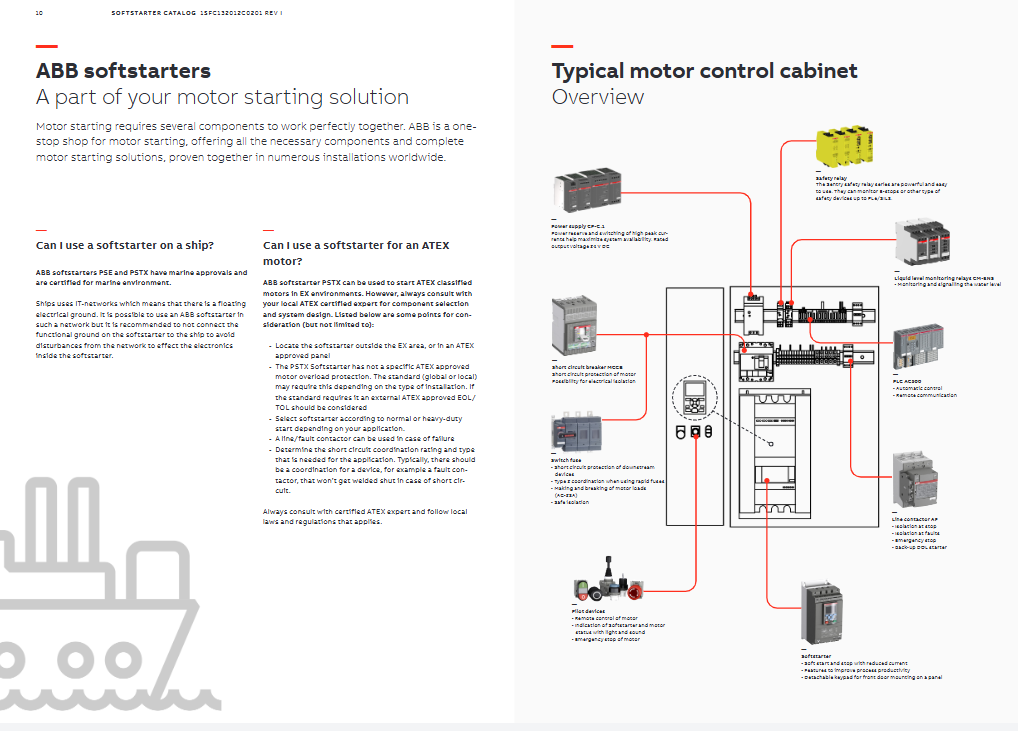

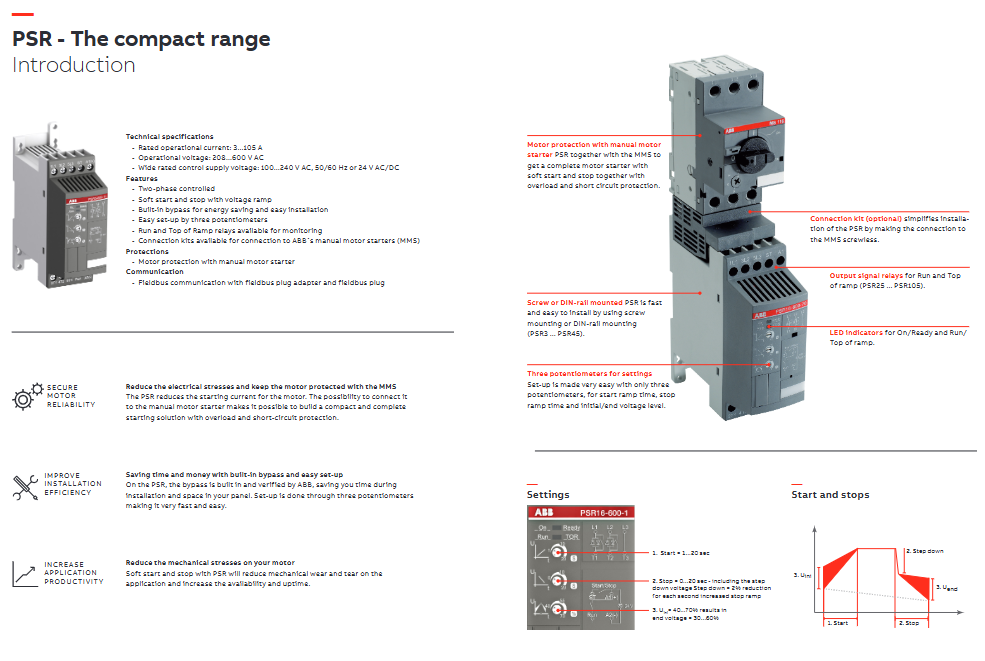

Failure to configure external overload protection (PSR) may result in motor burnout. PSR must be used in conjunction with MMS (such as MS116)

When using the internal triangle connection method, the protection parameter current reading was not changed, and the actual reading was 1/√ 3 of the line current. In PSTX internal triangle mode, the rated current of the motor should be set as the phase current (line current/1.73)

Neglecting environmental temperature and frequent overload tripping under high temperature. Reference technical data sheet: 10%... 20% capacity reduction at 60 ℃

Maintenance and calibration recommendations

To minimize unplanned downtime, it is recommended to establish a periodic maintenance plan:

Every six months:

Clean the heat sink and fan filter.

Tighten the main circuit terminals (PSTX high current terminals may become loose due to thermal expansion and contraction).

Export parameter backups using SoftstarterCare software.

Every year:

Check the contacts of the built-in bypass contactor (only applicable to large models that can be disassembled for maintenance).

Measure the voltage drop of the thyristor module with a micro ohmmeter in a power-off state to determine if it is aging.

Update PSTX firmware (connect to PC via USB cable and run ABB firmware upgrade tool).

After the malfunction:

If a thyristor short circuit occurs, PSTX supports "Limp mode" - even if one thyristor is short circuited, it can continue to operate to avoid production interruption, but needs to be replaced as soon as possible.

Recommended Tools and Resources

ABB provides rich auxiliary tools for soft starter users, which can significantly shorten the troubleshooting time:

SoftstarterCare: Free PC software that can be connected to PSE/PSTX via USB or serial port for real-time monitoring, parameter modification, viewing of event logs and waveform diagrams.

PSTX emulator: No hardware required, simulate PSTX operation interface on computer, train new employees or verify parameter settings.

ABB e-configure: an online selection tool that automatically recommends soft starter models and coordination plans by inputting motor power, load type, and starting frequency.

SOC online tool: provides examples of circuit breaker, fuse, and contactor models required for short-circuit coordination (Type 1/Type 2) (such as PSE18 recommending XT2N160 circuit breaker+170M1563 semiconductor fuse).
