Core positioning and advantages of the product

Positioning: Yaskawa CP-9200SH is a high-end industrial controller that integrates sequential control and motion control, designed specifically for industrial machinery that requires high-speed synchronous operation.

Core advantages:

Modular structure, supporting flexible expansion;

Multi axis control capability, capable of controlling up to 224 axes;

Compatible with multiple communication protocols and I/O modules;

Support hot plugging for easy maintenance;

Equipped with comprehensive debugging and fault diagnosis functions.

Detailed explanation of hardware system

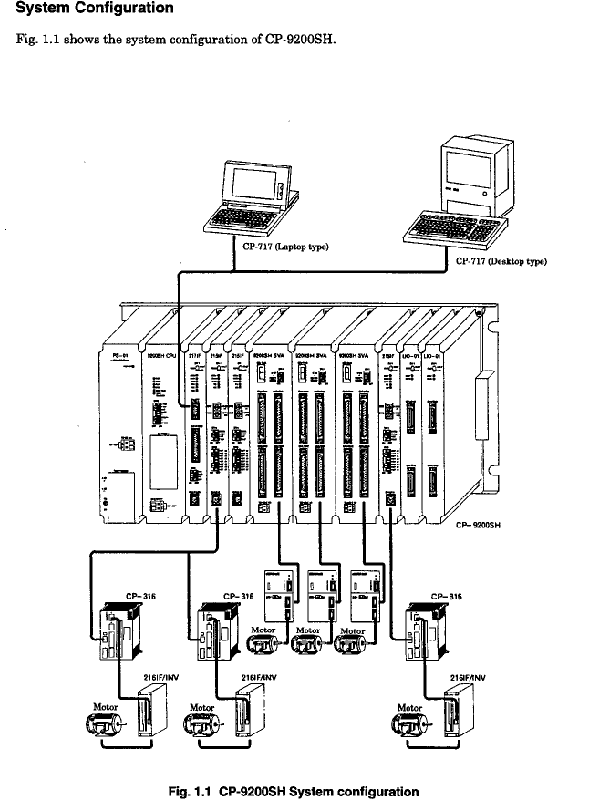

1. Core components and module types

(1) Basic module

CPU module: 32-bit processor, optional 1MB/2MB program memory, supports dual CPU configuration, has self diagnosis, program execution control and other functions, and displays the running status through LED indicator lights.

Power module: including PS-01 (100VAC/DC), PS-02 (200VAC), and PS-03 (24VDC) models, with power consumption ≤ 150W, providing power interruption detection function.

Sports module:

SVA module: controls up to 4 axes, supports position/speed/torque control, and also has counter function.

PO-01 module: pulse train output type, capable of controlling up to 4 axes, supporting functions such as positioning and zero point return.

SVB module: MECHATROLINK digital output type, capable of controlling up to 14 axes, with 16 modules expandable to 224 axes.

(2) Optional modules

Communication module: Supports CP-213/215/216/217/218/225/2500 protocol and Ethernet, covering interfaces such as RS-232/RS-422/485.

I/O modules: including LIO-01 (32 DI/DO points each), DI-01 (64 point input), DO-01 (64 point output), AI-01 (8-point analog input), AO-01 (4-point analog output), etc.

Expansion modules: EXIOIF (Installation Base Expansion), 2000IOIF (2000 Series I/O Connection), 820IF (CP-820 Local Connection), etc.

(3) Installation base

MB-01 (Long Type): Can install up to 14 modules (excluding power module) and supports single/multiple CPU configurations.

MB-03 (short type): can install up to 8 modules (excluding power module), suitable for scenarios with fewer modules.

2. Key hardware parameters

Environmental parameters: Operating temperature 0-55 ℃ (24-hour average ≤ 50 ℃), vibration resistance meets JIS B 3502 standard.

Grounding requirement: protective grounding (Class 3, ≤ 100 Ω).

Weight: MB-01 with full configuration 5400g, MB-03 with full configuration 3400g.

Module lifespan: At an average ambient temperature of 40 ℃, the module lifespan is 10 years.

3. CP-215 repeater

Used to extend the transmission distance of CP-215/216, supporting twisted pair, coaxial cable, fiber optic and other media, including TT (twisted pair to coaxial), TC (twisted pair to coaxial), TP (twisted pair to plastic fiber), TS2/TS5 (twisted pair to quartz fiber) and other models, with a maximum transmission distance of up to 5km.

Software and programming functions

1. Programming Fundamentals

Programming language: Supports ladder diagrams and SFC language.

Programming tool: Control Pack CP-717 (desktop/laptop), supports program editing, downloading, and debugging.

Program structure: Adopting a hierarchical structure of parent, child, and grandson layers, supporting up to 64 drawings.

2. Core functions

(1) Control function

Motion control: position/speed/torque control, electronic cam, electronic shaft synchronization, positioning, zero return, interpolation feed, etc.

Counting function: reversible counting, interval counting, frequency measurement, hardware position locking.

(2) Communication function

Supports CP-213/215/216/217/218/225/2500 protocol, with Ethernet transmission speed of 10Mbps.

Support third-party communication protocols such as MEMOBU, MELSEC, OMRON, etc., and adapt to different brands of devices.

(3) Debugging and monitoring

Data tracking: Up to 4 sets of 16 data, 32k words of memory, supporting display of lists or trend charts.

Fault tracking: up to 500 fault definitions, recording the time of fault occurrence/recovery and related information.

3. Register and Data Types

Register types: including system registers (S), data registers (M), input registers (I), output registers (O), constant registers (C), etc.

Data types: Supports bit type (B), integer type (W), double length integer (L), real type (F), and address type (A) to meet different computational requirements.

Installation and wiring specifications

1. Installation requirements

Installation location: Avoid direct sunlight, high temperature and humidity, dust, corrosive gases, and vibration impact environments.

Module installation: The power module is located on the left, and the CPU module is located in slot 0/1. The module fastening screws need to be tightened to prevent loosening.

Distance requirement: Maintain sufficient distance from high-voltage equipment, with a distance of ≥ 200mm between I/O lines and power lines to avoid noise interference.

2. Wiring specifications

(1) Power wiring

The power module needs to be connected to the rated voltage, and PS-01/02/03 correspond to different voltage ranges. The wiring should be independent to avoid mixing with other circuits.
