In modern industrial automation, the frequency converter (AF Drive) is the core equipment for achieving energy-saving operation, precise speed regulation, and process control of motors. Eaton's 9000X series frequency converters include two sub series, SVX9000 and SPX9000, covering a power range from 0.75 kW to 700 kW, suitable for various loads such as fans, water pumps, conveyors, compressors, etc. This article is based on the official user manual and provides a comprehensive analysis of the technical characteristics, installation requirements, wiring specifications, parameter settings, startup debugging, and fault handling of the 9000X series, providing professional technical references for electrical engineers and system integrators.

Product Overview

1.1 Series positioning

SVX9000: A standard frequency converter suitable for V/Hz control and open-loop vector control, meeting the needs of most industrial applications.

SPX9000: High performance frequency converter, supporting closed-loop vector control, permanent magnet synchronous motor (PM) control, and expandable with multiple feedback options (encoder, rotary transformer).

1.2 Model Naming Rules

Taking SVX9000 as an example, models such as SVXF07Ax-2A1B1 contain the following information:

SVX: Product Series

F: Frame dimensions (FR4~FR14)

07: Rated current code

A: Voltage level (2=208-240V, 4=380-500V, 5=525-690V)

x: Protection level (N1=IP21/NEMA 1, N12=IP54/NEMA 12)

2A1B1: Option configuration code

1.3 Compliance with standards

UL 508C (Power Conversion Equipment)

IEC 61800-3 (Variable Speed Electrical Transmission Systems)

CE mark (compliant with EMC directive and low voltage directive)

Short circuit current rating (SCCR): 100 kA rms (compliant with UL 508C)

Installation and environmental requirements

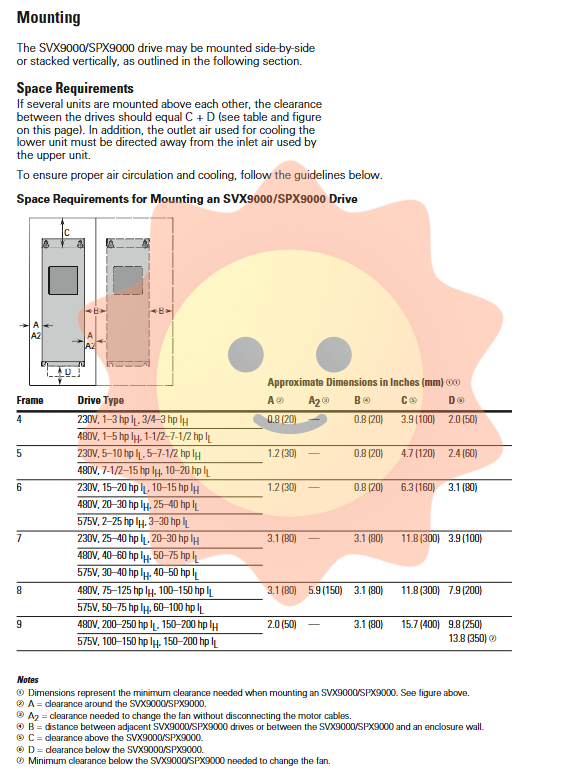

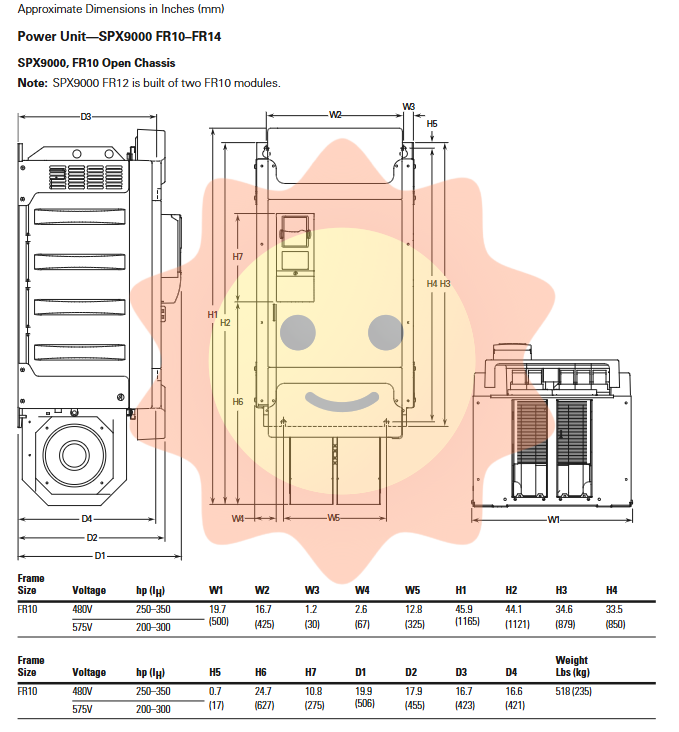

2.1 Space Requirements

To ensure sufficient heat dissipation, a minimum gap must be maintained around the frequency converter (typical values vary depending on the frame size, as follows):

Gap above C: 100-400 mm

Lower gap D: 50-250 mm

Left and right gap B: 0.8-3.1 in (20-80 mm)

When multiple devices are installed vertically, the gap between the upper and lower equipment should be C+D, and the air outlet of the lower equipment should not affect the air inlet of the upper equipment.

2.2 Environmental conditions

Parameter specifications

Operating temperature -10 ° C to+50 ° C (please refer to the manual for derating use)

Storage temperature -40 ° C to+70 ° C

Altitude ≤ 1000 meters does not require derating, while higher altitudes require derating

Humidity<95% without condensation

The cooling air volume varies from 70 m ³/h to 5200 m ³/h depending on the power level

2.3 Mechanical installation steps

Use the opening template on the packaging box to mark the installation hole position.

Ensure that the installation surface is flat, sturdy, non flammable, and free from severe vibrations.

Use four bolts to secure the frequency converter, with bolt specifications and torque specified in the manual (e.g. M5 for FR4, torque 2.5 Nm).

Main circuit wiring

3.1 Basic principles of wiring

Heat resistant copper wires (75 ° C or above) must be used.

Both the input power line and motor line should be equipped with grounding wires.

According to NEC 430 Part IV, short-circuit protection devices (fuses or circuit breakers) must be installed on the incoming side. Recommend using Class T fuses.

Input/output cables and signal cables should be laid separately, with a spacing of at least 0.3 m (for lengths ≤ 50 m) or 1.0 m (for lengths ≤ 200 m).

The maximum length of motor cables is 100 meters for 230V low-power units and 300 meters for the rest.

3.2 Cable and fuse selection

The manual provides detailed tables listed by voltage level (230V, 480V, 575V), frame size, and motor power:

NEC current (full load current)

Rated value of fuse

AWG specification for power cord

Grounding wire AWG specification

terminal specifications

For example, a 480V, 10 hp unit (FR5) uses 12 AWG wire and a 30 A fuse.

3.3 Wiring steps

Peel off the cable sheath as shown in the manual to expose an appropriate length of shielding layer and conductor.

Thread the incoming cables (L1, L2, L3) and motor cables (U, V, W) through the attached terminal block.

Connect to the corresponding terminal and apply the torque specified in the manual (e.g. FR4 terminal torque of 0.6 Nm).

If using shielded cables, ground the shielding layer to the grounding terminal of the frequency converter.

Install rubber sealing rings for unused terminal block holes.

After checking that all wiring is correct, close the hood and lock it.

3.4 Insulation inspection

Insulation testing must be conducted before powering on:

Motor cable: Disconnect from the frequency converter and motor, measure the phase to phase and relative to ground insulation resistance, which should be>1 M Ω.

Input cable: Disconnect from the power grid and frequency converter, and also measure>1 M Ω.

Motor winding: Disconnect all connections inside the motor junction box and measure with a megohmmeter that is not lower than the rated voltage of the motor but not higher than 1000V. The insulation resistance should be greater than 1 M Ω.

Control circuit wiring

4.1 Control board and option board

The control unit of 9000X provides 5 slots (A~E) for installing various I/O expansion boards and communication option boards. Factory standard configuration:

Slot A: A9 board (6 DI, 1 DO, 2 AI, 1 AO,+10V reference, 2 external 24V)

Slot B: A2 board (2 relay outputs, NC/NO contacts)

4.2 Control wiring specifications

The control wire should use shielded cable with a minimum wire diameter of 0.5 mm ² (AWG 20) and a maximum wire diameter of:

Relay terminal: 2.5 mm ² (AWG 14)

Other terminals: 1.5 mm ² (AWG 16)

Terminal torque:

Relay/thermistor terminal (M3): 0.5 Nm

Other terminals (M2.6): 0.25 Nm

4.3 Digital Input Logic Selection

The effective level of the digital input signal can be selected through the connection of the common terminal (CMA, CMB):

Positive logic: The common terminal is connected to 0V, and the input terminal is connected to+24V, which is valid.

Negative logic: The common terminal is connected to+24V, and the input terminal is connected to 0V, which is valid.

The 24V power supply can come from the internal or external power source of the frequency converter.

4.4 Typical Wiring Diagram

The manual provides detailed wiring diagrams for A9 board and A2 board, including terminal definitions for analog input/output, digital input, relay output, thermistor input, etc.

Operation panel and menu navigation

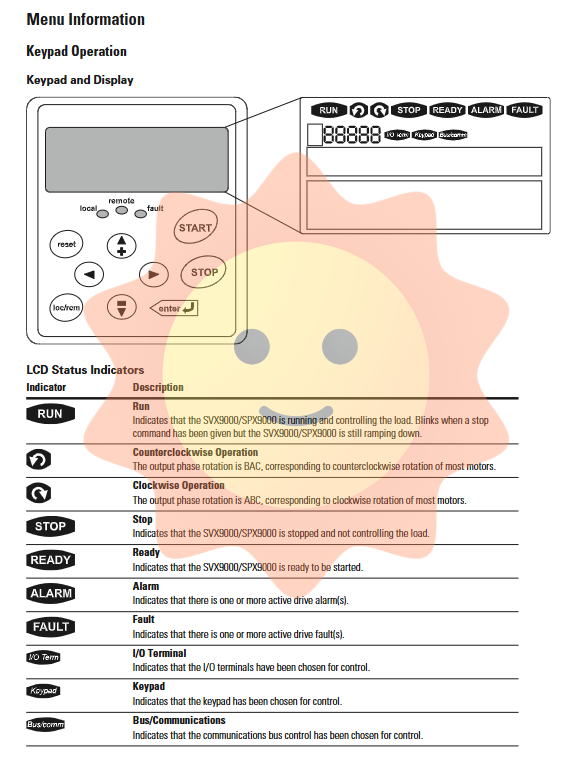

5.1 Keyboard and Display

The operation panel includes an LCD display screen, status LEDs, and navigation buttons.

Status indication:

RUN: Running

STOP: Stop

READY: Ready

Fault: Malfunction

ALARM: Alarm

Local/Remote Control Mode

Key functions:

START/STOP: Start/Stop

RESET: Reset fault

LOCAL/REMOTE: Switch control source

Arrow keys: menu navigation and parameter editing

ENTER: Confirm and save

Left arrow: Exit editing or return to the upper menu

5.2 Main menu structure

M1 parameter menu: Display all adjustable parameters by group (depending on application selection).

M2 keyboard control menu: Set keyboard frequency reference, direction, and stop button effectiveness.

M3 activity fault menu: displays the current fault code and fault time data record (T1-T13).

M4 Fault History Menu: Stores the last 30 faults, which can be cleared by pressing ENTER for 3 seconds.

M5 system menu: language selection, application selection, parameter copying, password protection, display settings, fan control, counter, software and hardware information, etc.

M6 expansion board menu: View and edit the parameters of option boards in each slot.

M7 monitoring menu: Real time monitoring of output frequency, current, voltage, torque, power, temperature, etc. (updated every 0.3 seconds).

M8 operation menu: Simplified monitoring interface, frequency reference can be directly modified (if allowed).

5.3 Startup Wizard

When powered on for the first time, it automatically enters the startup wizard, guiding the user to select language, application type, and sequentially set basic parameters (such as motor rated voltage, current, frequency, speed, etc.). After completion, you can choose to repeat the wizard or return to the operation menu.

Start debugging

6.1 Pre commissioning checklist

The frequency converter and motor have been reliably grounded.

The power cable and motor cable meet the wiring requirements.

Control cables and power cables are laid separately, and the shielding layer is grounded.

All start/stop switches are in the stop position.

Confirm that no condensed water has accumulated inside the frequency converter.

6.2 Test without motor

Connect the power and complete the basic settings through the startup wizard.

Select keyboard control, press START, and check if the output frequency follows the keyboard reference change.

Select I/O control, short-circuit DIN1 to start, change AI1 reference, and check frequency response.

6.3 Motor Identification Run (ID Run)

Parameter P1.6.16 can set the recognition method:

OL V/f ratio: Zero speed recognition motor parameters (early software versions)

OL V/f+automatic torque boost: zero speed recognition and enable automatic torque boost

Identification of motor not running: zero speed identification, motor not rotating

Identification of motor operation: When the motor runs at 2/3 of its rated speed without load, identify the parameters

Encoder recognition (SPX only): used for PM motors to determine rotor zero position

Give the start command within 20 seconds after setting the recognition parameters, and the frequency converter will automatically stop after the recognition is completed.

6.4 Open loop vector control manual tuning

If the automatic recognition effect is not satisfactory, the V/f curve can be manually tuned:

Set the motor nameplate parameters (P1.1.6~P1.1.10).

Run the motor without load to 2/3 of the rated frequency and record the no-load current (i.e. excitation current).

Set the V/f curve type to "programmable" (P1.6.3=2).

Increase the zero frequency voltage (P1.6.8) at zero frequency until the current approaches the excitation current.

Calculate midpoint voltage=√ 2 × zero frequency voltage, midpoint frequency=(zero frequency voltage/100%) × rated frequency, fill in P1.6.7 and P1.6.6.

Slowly accelerate to half frequency and observe if the current is stable. If there are spikes, fine tune the midpoint parameter.

6.5 Closed loop vector control manual tuning (SPX9000 specific)

Set the parameters of the motor nameplate.

Check the encoder parameters (P6.3.1.1) to confirm that the encoder frequency is consistent with the output frequency and the direction is correct.

Run to 2/3 rated frequency in frequency control mode (P1.6.1=0) and record the motor voltage.

Switch to closed-loop speed control mode (P1.6.1=3 or 4), run again and observe the motor voltage, adjust the slip compensation parameter (P1.6.17.6), so that the voltage at load is slightly higher than the V/f curve and slightly lower than during power generation.

6.6 Load connection trial operation

Power off and wait for at least 5 minutes (DC bus discharge), then connect the motor to the load.

Ensure the safety of the mechanical system, repeat the no-load testing steps, and check the current, voltage, and steering.

If further optimization is needed, advanced parameters such as speed loop gain (P1.6.13), integration time (P1.6.14), and load drop (P1.6.20) can be adjusted.

Fault diagnosis

7.1 Fault Types

First level fault (A): Alarm, does not stop, disappears after about 30 seconds of display.

Second level fault (F): Stop, needs to be reset and restarted.

Third level fault (AR): Automatic reset and attempt to restart, if unsuccessful, it will be classified as a top-level fault.

Top level fault (FT): Stop, requiring manual intervention.

7.2 Common fault codes

Code fault name, possible cause, and countermeasures

1. Overcurrent load surge, motor short circuit inspection load, motor and cable

2. If the deceleration time is too short due to overvoltage or high grid voltage, extend the deceleration time and check the input voltage

3. Grounding fault motor or cable insulation damage inspection insulation

9. If the input voltage is too low or power is cut off, check the power supply, reset and restart

11 output phase loss motor cable disconnection or motor winding fault inspection wiring and motor

14. Poor heat dissipation due to overheating, high ambient temperature, and high switching frequency. Clean the radiator, improve ventilation, and reduce switching frequency

Check the mechanical system for motor stalling and excessive load, and confirm the stalling parameters

16 motor overheating, motor overload or poor heat dissipation, reduce load, check temperature model parameters

22 EEPROM fault parameter storage abnormal reset, parameters restored to default. If repeated, please contact Eaton

31/41 IGBT overheating, short-term overload current too high, check the load, confirm that the motor matches the frequency converter

43 Encoder Fault: Encoder Channel Missing or Inverted Check Encoder Wiring and Configuration

50 analog input<4 mA disconnection or signal source fault check current circuit and signal source

7.3 Fault Data Recording

Each time a fault occurs, the frequency converter automatically saves 13 key data points (T1-T13), including operating days/hours, output frequency, current, voltage, power, torque, DC bus voltage, temperature, etc., to facilitate the analysis of the cause of the fault.

Options and spare parts

8.1 I/O expansion board

A3 board: 2-channel relay output+thermistor input

A4/A5 board: Encoder interface (low/high voltage)

A7 board: dual encoder interface

A8 board: 6 DI, 1 DO, 2 AI, 1 AO

AE board: 3 DI (encoder 10-24V), 2 DO (pulse+direction)

AF board: Safety torque cancellation (STO)

8.2 Communication Option Board

OPTC1: Modbus/TCP (Ethernet)

OPTC2：Modbus RTU（RS-485）

OPTC3：PROFIBUS-DP

OPTC4：LonWorks

OPTC6: CANopen (Slave)

OPTC7：DeviceNet

OPTCJ：BACnet MS/TP

OPTCK：EtherNet/IP

Special board for Johnson Controls Metasys N2
