Eaton XV200 Micro Panel Comprehensive Guide

In modern industrial automation, the human-machine interface (HMI) serves as a bridge between operators and machines, and its reliability, functional integration, and environmental adaptability directly affect production efficiency and system safety. Eaton's XV200 MICRO PANEL (MK2 series) is a compact industrial touch panel that can be used as a pure HMI device or integrated with PLC functions. It is widely used in fields such as mechanical manufacturing, process control, and building automation. This article provides a comprehensive analysis of the technical characteristics, installation requirements, interface configuration, safety specifications, and maintenance methods of the XV200 series based on the official operating manual, providing professional technical references for electrical engineers and system integrators.

Product Overview and Technical Specifications

1.1 Equipment name and functional positioning

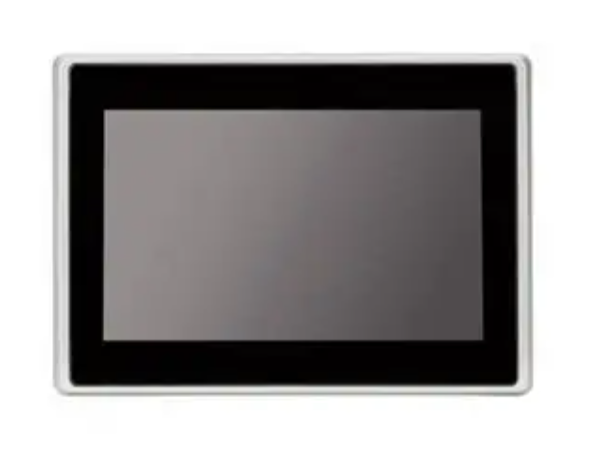

The XV200 series and MK2 series are two names for the same product, both referring to Eaton's 5.7-inch industrial touch panel. This device supports the Windows CE operating system and can run visualization and PLC applications, suitable for the operation, monitoring, and control of machines and equipment.

1.2 Equipment Model and Version

XV200 MICRO PANEL offers the following versions (depending on interface and display type):

XV200 model MK2 model display type interface

XV-232-57BAS MK2-232-57BAS monochrome RS232 (non isolated)

XV-230-57MPN MK2-230-57MPN monochrome Profibus (non isolated)

XV-230-57CNN MK2-230-57CNN monochrome CAN (non isolated)

XV-252-57MPN MK2-252-57MPN color RS232+Profibus (non isolated)

XV-252-57CNN MK2-252-57CNN color RS232+CAN (non isolated)

All models are equipped with a resistive touch screen, CF card slot, Ethernet interface, USB device interface, and power interface.

1.3 Technical Highlights

Multi functional integration: supports the integration of HMI and PLC, reducing system costs and space occupation.

Rich communication interfaces: RS232, CAN, Profibus, Ethernet USB， Adapt to various industrial networks.

High protection level: IP65 front panel, suitable for harsh industrial environments.

Wide temperature operation: 0 ° C to 50 ° C, storage temperature -20 ° C to 60 ° C.

ATEX certification: Can be used in Zone 22 potentially explosive environments (dusty environments).

Safety regulations and compliant use

2.1 General Safety Requirements

Although the XV200 series equipment adopts advanced technology, there may still be residual risks. All operators must read and understand the safety sections in the operating manual, especially those related to installation, operation, and maintenance.

2.2 Symbol Explanation

Different symbols are used in the document to indicate the level of danger:

Danger (DANGER): Refers to an imminent danger that, if not avoided, will result in death or serious injury.

Warning: Indicates potential danger, which may result in death or serious injury if not avoided.

CAUTION: Indicates potential danger, which may result in minor or moderate injury if not avoided.

Caution: Important information is prompted and not related to personal injury.

2.3 Personnel Qualification Requirements

Only personnel with the corresponding qualifications can carry out installation, operation, maintenance, and service work. These personnel must undergo sufficient training to understand all risks related to the equipment.

2.4 Prohibited use

It is strictly prohibited to use XV200 for safety related functions such as personnel protection and mechanical safety interlocking. This type of function must be implemented through external safety relays or safety PLCs.

2.5 Equipment related hazards

Explosion hazard (ATEX): In potentially explosive environments, the plug must be unplugged and plugged after power failure, and the equipment must not be subjected to hazardous impacts.

Electric shock hazard: The equipment must not be opened as there are live parts inside.

Equipotential current: High equipotential current may cause signal interference or fire, and equipotential bonding conductors should be laid if necessary.

Electrostatic discharge: Before coming into contact with components that are susceptible to static electricity (such as connector pins), one should first touch a grounded metal object to release static electricity.

UV irradiation: Avoid direct sunlight to prevent the plastic shell from becoming brittle.

Cleaning: Do not use sharp objects, abrasives, or solvents to clean, and avoid liquids entering the equipment.

Installation Guide

3.1 Requirements for installation site

Environmental conditions: Meet the temperature, humidity, vibration, and other requirements specified in the technical data.

Installation position: It can be installed horizontally or vertically, but it is necessary to avoid direct sunlight, ensure good ventilation (with a minimum heat dissipation gap of 3 cm), and stay away from heat sources.

UL 60950 compliance: The equipment must be installed in the final product, the environment must meet the pollution level 2, the power supply must be SELV circuit, and the Ethernet must be isolated from the Internet through the firewall.
