Series Overview

The FA-M3 series is Yokogawa's "Range free Multi controllers". The basic modules covered in the document are the core hardware used to build the system, including the base module (carrying various functional modules), power module (power supply core), sequence CPU module (control core), and ROM storage module (program/data storage). The modules need to be matched according to specifications to jointly support high-speed sequence control, data processing, and network communication requirements in industrial scenarios.

Base Modules

1. Core functions and classification

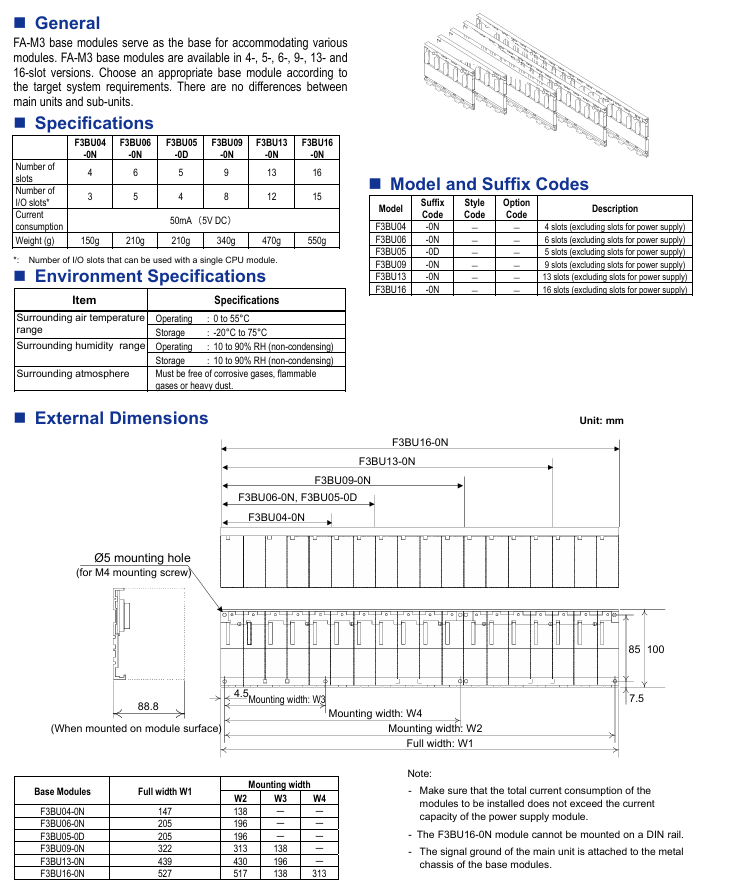

As a module installation carrier, it provides slots for carrying CPU modules, I/O modules, power modules, etc. There is no distinction between master/slave units, and it is divided into 6 types of models according to the number of slots, suitable for system expansion needs of different scales.

2. Key technical specifications

Model, total number of slots, available I/O slots (single CPU), current consumption (5V DC), weight, applicable power module

F3BU04-0N、4、3、50mA、150g、F3PU10-0S、F3PU16-0S

F3BU06-0N、6、5、50mA、210g、F3PU10-0S、F3PU16-0S

F3BU05-0D, 5, 4, 50mA, 210g, F3PU20-0S, F3PU26-0S, etc

F3BU09-0N, 9, 8, 50mA, 340g, F3PU20-0S, F3PU26-0S, etc

F3BU13-0N, 13, 12, 50mA, 470g, F3PU20-0S, F3PU26-0S, etc

F3BU16-0N, 16, 15, 50mA, 550g, F3PU20-0S, F3PU26-0S, etc

3. Environmental and installation requirements

Environmental conditions: working temperature 0-55 ℃, storage temperature -20-75 ℃; Working humidity 10-90% RH (non condensing); Avoid corrosive/flammable gases and large amounts of dust.

Installation restriction: F3BU16-0N cannot be installed on DIN rails; The signal ground is connected to the base metal chassis; It is necessary to ensure that the total current consumption of all modules does not exceed the capacity of the supporting power module.

Size: Different models have different widths (such as F3BU04-0N with a width of 147mm and F3BU16-0N with a width of 527mm), with a uniform height of around 100mm and a depth of approximately 83.2mm (excluding protrusions).

Power Supply Modules

1. Core functions and classification

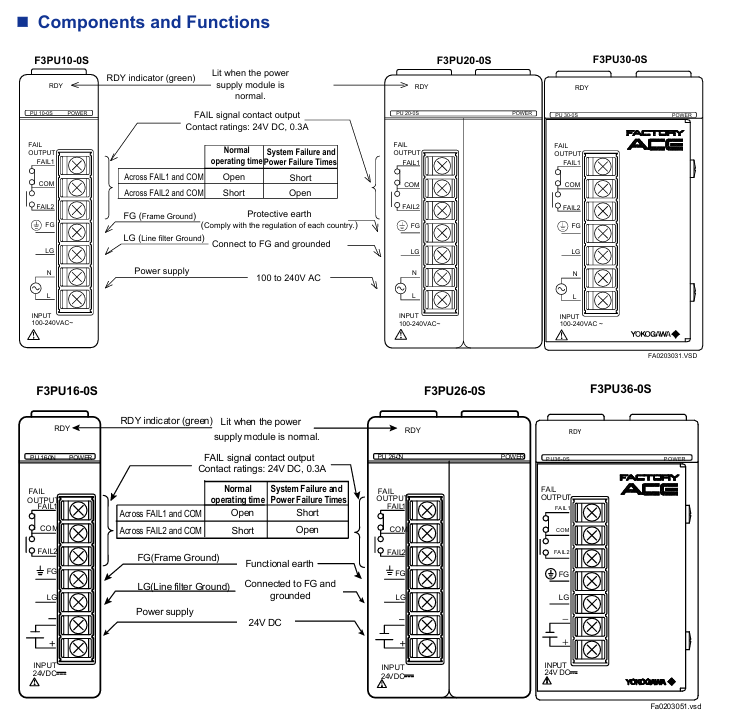

To provide stable power supply for the FA-M3 series base modules and the modules they are equipped with, each base needs to be equipped with one power module, which is divided into AC type (100-240V AC) and DC type (24V DC) according to the input voltage, and further subdivided into models according to the scale of the adapted base.

2. Key technical specifications

Model, input voltage, rated output (5V DC), power consumption, size (W × H × D, mm), weight compatible base module

F3PU10-0S, 100-240V AC, 2.0A 35VA, 28.9 × 100 × 83.2, 190g, F3BU04-0N, F3BU06-0N

F3PU20-0S, 100-240V AC, 4.3A, 85VA, 58 × 100 × 83.2, 320g, F3BU05-0D, F3BU09-0N, etc

F3PU30-0S, 100-240V AC, 6.0A, 100VA, 58 × 100 × 126.1, 380g, F3BU05-0D, F3BU09-0N, etc

F3PU16-0S, 24V DC, 2.0A, 15.4W, 28.9 × 100 × 83.2, 190g, F3BU04-0N, F3BU06-0N

F3PU26-0S, 24V DC, 4.3A, 33.1W, 58 × 100 × 83.2, 320g, F3BU05-0D, F3BU09-0N, etc

F3PU36-0S, 24V DC, 6.0A, 46.2W, 58 × 100 × 126.1, 410g, F3BU05-0D, F3BU09-0N, etc

3. Core performance characteristics

Voltage fluctuation adaptation: AC type supports 85-264V AC, DC type supports 15.6-31.2V DC.

Anti interference and protection: insulation resistance ≥ 5M Ω (500V DC), withstand voltage 1500V AC (1 minute); Anti pulse noise 1500Vp-p (1 μ s pulse width).

Fault alarm: Equipped with FAIL signal contact output (24V DC/0.3A), the contact status can be configured during normal operation (such as FAIL1 short circuit, FAIL2 disconnected).

Instantaneous power outage tolerance: AC standard mode 20ms, rapid detection mode 10ms; DC standard mode 20ms, rapid detection mode 2ms.

Sequence CPU Modules

1. Classification and core positioning

It is divided into basic type (F3SP22-0S, no network function) and network enhanced type (F3SP71-4S, F3SP76-7S, built-in Ethernet and other network functions), both of which are control cores of the FA-M3 series, responsible for executing ladder diagram programs, I/O control, and system diagnosis.

2. Comparison of key specifications of various models

Model Core Features Program Capacity Processing Speed (Basic Instructions) Maximum I/O Points Communication Interface Current Consumption (5V DC)

F3SP22-0S basic sequence control, no network function 30K steps * 0.045-0.18 μ s/instruction 4096 point programming toolchain interface (115Kbps) 450mA

F3SP71-4S has built-in network function, with a medium capacity of 60K steps and 0.00375 μ s/instruction 4096 points USB 2.0, 10/100BASE-TX 460mA

F3SP76-7S has built-in network function, large capacity of 260K steps 0.00375 μ s/instruction 8192 points (including remote) USB 2.0, 10/100BASE-TX 460mA

Note: F3SP22-0S requires WideField3 R4.05 and above versions to support 30K steps, while older versions only support 10K steps.

3. Core functional features

(1) General functions

Programming and Instruction: Supports object ladder diagrams and mnemonic languages; There are 37-40 basic instructions and 324-445 application instructions (including analog I/O, data operations, etc.).
