Foxboro ™ DCS FBM214b HART ® Communication input module

Component type, model/part number, key parameters

FBM214b module RH927AH weight: approximately 284g (10oz); Dimensions: Height 102mm x Width 114mm (including installation ears) x Depth 45mm (or Depth 104mm, depending on configuration)

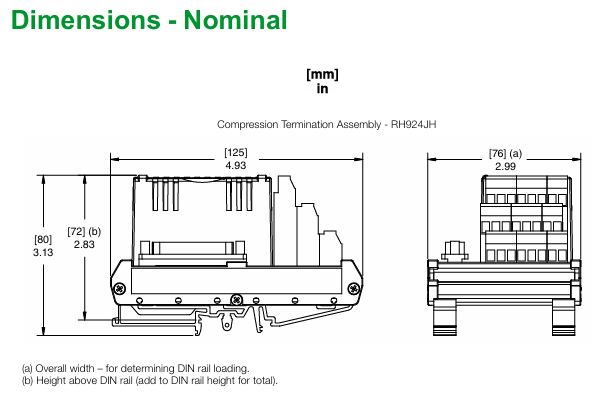

Terminal Component (TA) RH924JH Material: Polyamide (PA, -20~70 ℃ temperature resistance); Wiring type: compression terminal; Weight: Approximately 181g (0.40lb)

Terminal cables are made of two materials (polyurethane/PVC, low smoke halogen-free LSZH), with a length of 0.5-30m (1.6-98ft), such as RH916DA (0.5m polyurethane) RH928AA（0.5m LSZH）

Cable connection module side: 37 pin D-subminiature interface; TA side: 25 pin D-subminiature interface

2. Installation requirements

Specific requirements for installation category

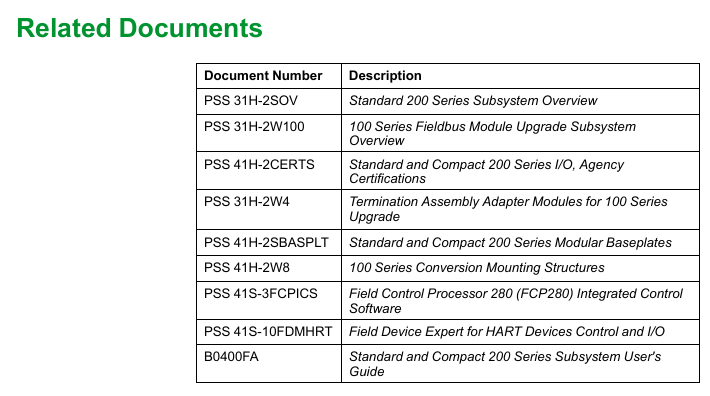

The module installation needs to be installed on a modular base plate, which supports horizontal/vertical DIN rail installation or can be adapted to a 19 inch rack through an installation kit; It can also be installed on the 100 series conversion installation structure (refer to PSS 41H-2W8)

TA is installed on 32mm or 35mm DIN rails and can be installed in the same cabinet or adjacent cabinets as the module (with a maximum cable length of 30m)

Wiring specifications support solid/multi strand wires (0.2~4mm ²/24~12AWG), multi strand wires with wire ears (0.2~2.5mm ², compatible with or without plastic sleeves)

Environmental and Compliance Specifications

1. Environmental parameters

Environment category, operating conditions, storage conditions

Temperature module/TA: -20~70 ℃ (-4~158 ℉) -40~70 ℃ (-40~158 ℉)

Relative humidity 5%~95% (no condensation) 5%~95% (no condensation)

Altitude -300~3000m (-1000~10000ft) -300~12000m (-1000~40000ft)

The anti pollution level complies with ISA S71.04 Class G3 and has passed the EIA 364-65 Class III exposure test-

Anti vibration 0.75g (5~500Hz)-

2. Compliance certification

Specific standards for certification categories

Electromagnetic compatibility (EMC) complies with EU directives 2004/108/EC (before April 20, 2016), 2014/30/EU (after April 20, 2016), and meets EN61326-1:2013 Class A (emission and industrial immunity)

Product Safety - UL/UL-C Certification in the United States/Canada: Suitable for cabinet systems with Class I A-D Group 2, T4 temperature code;

-EU Low Voltage Directive 2006/95/EC (before April 20, 2016), 2014/35/EU (after April 20, 2016);

-EU ATEX Directive 94/9/EC (before April 20, 2016), 2014/34/EU (after April 20, 2016): DEMKO certified Ex nA IIC T4 for Zone 2 hazardous environments

Environmental compliance complies with the EU RoHS Directive 2011/65/EU and revised versions 2015/863, 2017/2102

International Certification IECEx Certification

California Proposition 65 products contain lead and lead compounds, which may cause cancer or reproductive harm. For more information, please refer to www.P65Warning.ca.gov

Terminal Component (TA) and Cable Configuration

1. TA core parameters (RH924JH)

Specific specifications for TA

Adapt signal 8-channel 4-20mA analog signal/HART digital signal

Authentication Type 1+Type 2 Dual Authentication:

-Type 1: UL/UL-C Class I A-D Group 2 T4, ATEX Ex nA IIC T4 2;

-Type 2: UL/UL-C associated equipment (non flammable field circuit), ATEX IIC Zone 2 associated equipment, meets Class 2 current limiting requirements (below 60VDC/30VAC/100VA)

2. Terminal cable selection

Cables are divided into two categories: "Polyurethane/PVC (Type 1 P/PVC)" and "Low Smoke Zero Halogen (Type 1 LSZH)". The latter is suitable for scenarios that require smoke toxicity and corrosiveness (such as subways and data centers). The commonly used lengths and part numbers are as follows:

Length (m/ft) Type 1 P/PVC Part Number Type 1 LSZH Part Number

0.5/1.6 RH916DA RH928AA

1.0/3.2 RH916DB RH928AB

2.0/6.6 RH931RM RH928AC

3.0/9.8 RH916DC RH928AD

5.0/16.4 RH916DD RH928AE

10.0/32.8 RH916DE RH928AF

15.0/49.2 RH916DF RH928AG

20.0/65.6 RH916DG RH928AH

25.0/82.0 RH916DH RH928AJ

30.0/98.4 RH916DJ RH928AK

Summary

FBM214b is Schneider Foxboro ™  DCS is a specialized module designed for integrated acquisition of analog signals and HART digital signals. Its core advantages include 8-channel independent isolation, flexible internal/external power supply, compatibility with multiple versions of HART devices, and adaptability to harsh industrial environments. It is suitable for high-precision acquisition and digital diagnosis of equipment in petrochemical, power, water treatment, and other fields. Its "calibration free" design and hot swappable function reduce maintenance costs, while redundant fieldbus and anti crosstalk components (Cable Balun) ensure the stability and reliability of data acquisition.
